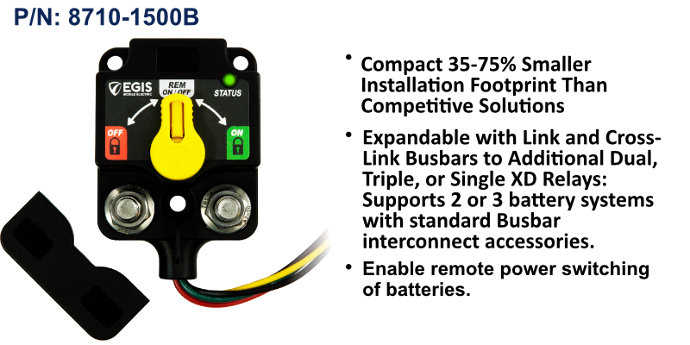

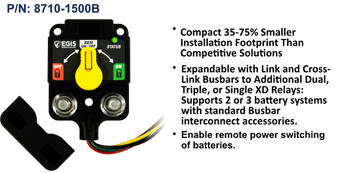

EGIS XD Single Remote Battery Switch 500A, Knob and Tinned Wires
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS 8710-1500 is a single XD Series remote battery switch rated at 500A continuous (1500A cranking), used to connect or disconnect a battery remotely in 12V and 24V systems. A bi-stable solenoid design draws no current to hold either state, and a front-facing manual override knob lets you force the switch open or closed and lock it there.
Built for harsh environments, the unit is sealed to IP67/IP6K9K with stainless-steel studs and a Gore-Tex vent, and consumes just 1.3mA in its off state. The compact XD chassis is pin-for-pin compatible with legacy ML-Series bi-stable relays and can be linked to additional XD relays using the 8790/8791 busbars. Supplied with tinned flying leads.
PRODUCT DETAILS
- 500A continuous / 1500A cranking current
- Bi-stable solenoid holds state with no current draw
- Front-facing manual override knob with lockable positions
- Remote battery disconnect for 12V and 24V systems
- Sealed to IP67/IP6K9K with stainless-steel hardware
- Ultra-low 1.3mA off-state current draw
- Pin-for-pin compatible with legacy ML-Series relays
- Expandable via 8790/8791 link busbars
- 1 x EGIS XD single remote battery switch
- Protective terminal cover
- Stainless steel mounting hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Cranking Current | 1500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC, 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Ingress Protection | IP67 / IP6K9K |
