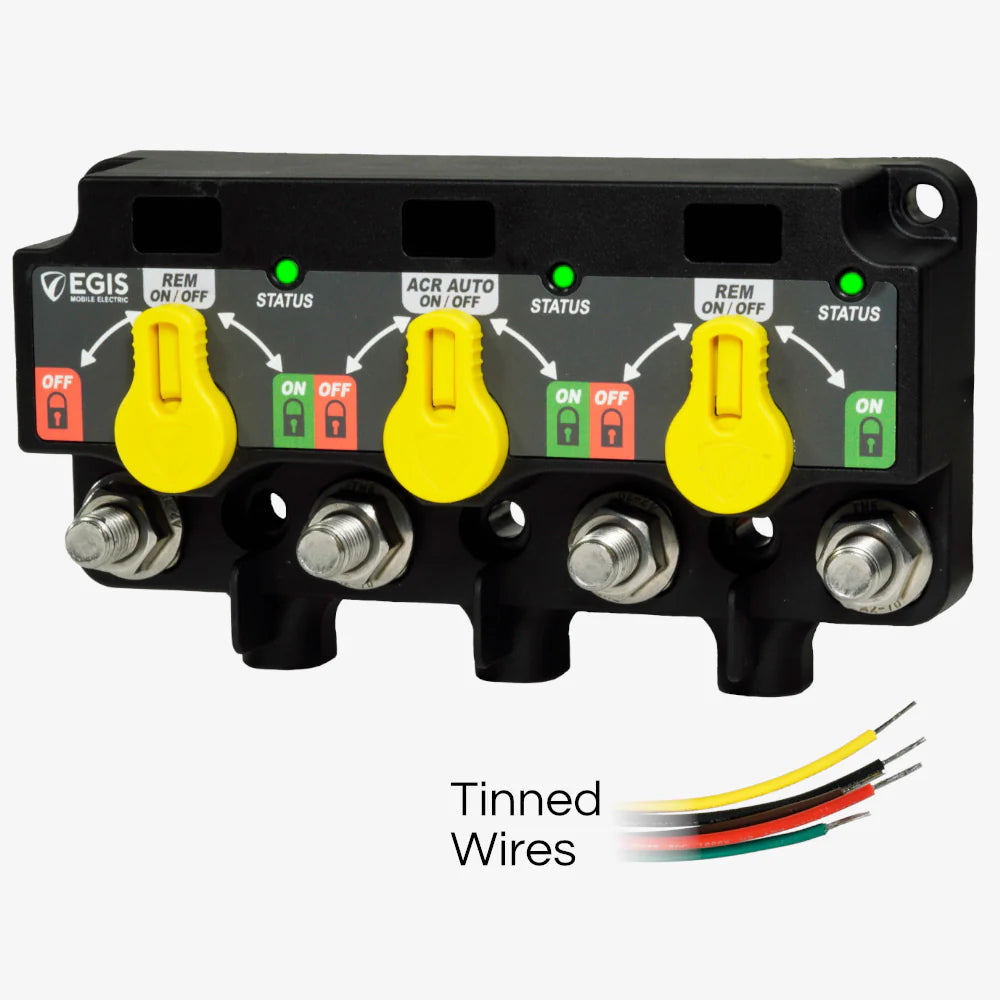

EGIS XD Triple Flex 2 Relay/ACR/Relay 500A, Knobs and Tinned Wires
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS 8730-1535 is a triple XD Series Flex 2 module that combines two 500A bi-stable relays with a programmable automatic charging relay (relay/ACR/relay) in one sealed housing. It delivers complete dual-battery charge management and remote switching from a single compact unit, replacing several separate devices and their wiring.
Each circuit is rated 500A continuous (1500A cranking) for 12V and 24V systems, with a 1.3mA off-state draw, individual manual override knobs and dip-switch programming. Sealed to IP67/IP6K9K with stainless-steel hardware, it is pin-for-pin compatible with legacy ML-Series relays and expands via the 8790/8791 link busbars. Supplied with tinned flying leads.
PRODUCT DETAILS
- Two 500A relays plus a programmable ACR in one module
- 500A continuous / 1500A cranking per circuit
- Complete dual-battery charge management in a single unit
- Individual manual override knobs, lockable open or closed
- Programmable via dip switches
- Sealed to IP67/IP6K9K with stainless-steel hardware
- Pin-for-pin compatible with legacy ML-Series relays
- Expandable via 8790/8791 link busbars
- 1 x EGIS XD triple relay module
- Protective terminal cover
- Stainless steel mounting hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A per circuit |
| Cranking Current | 1500 A per circuit |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| Number of Circuits | 3 |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Ingress Protection | IP67 / IP6K9K |
