Victron EV Charging Station NS (22kW)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

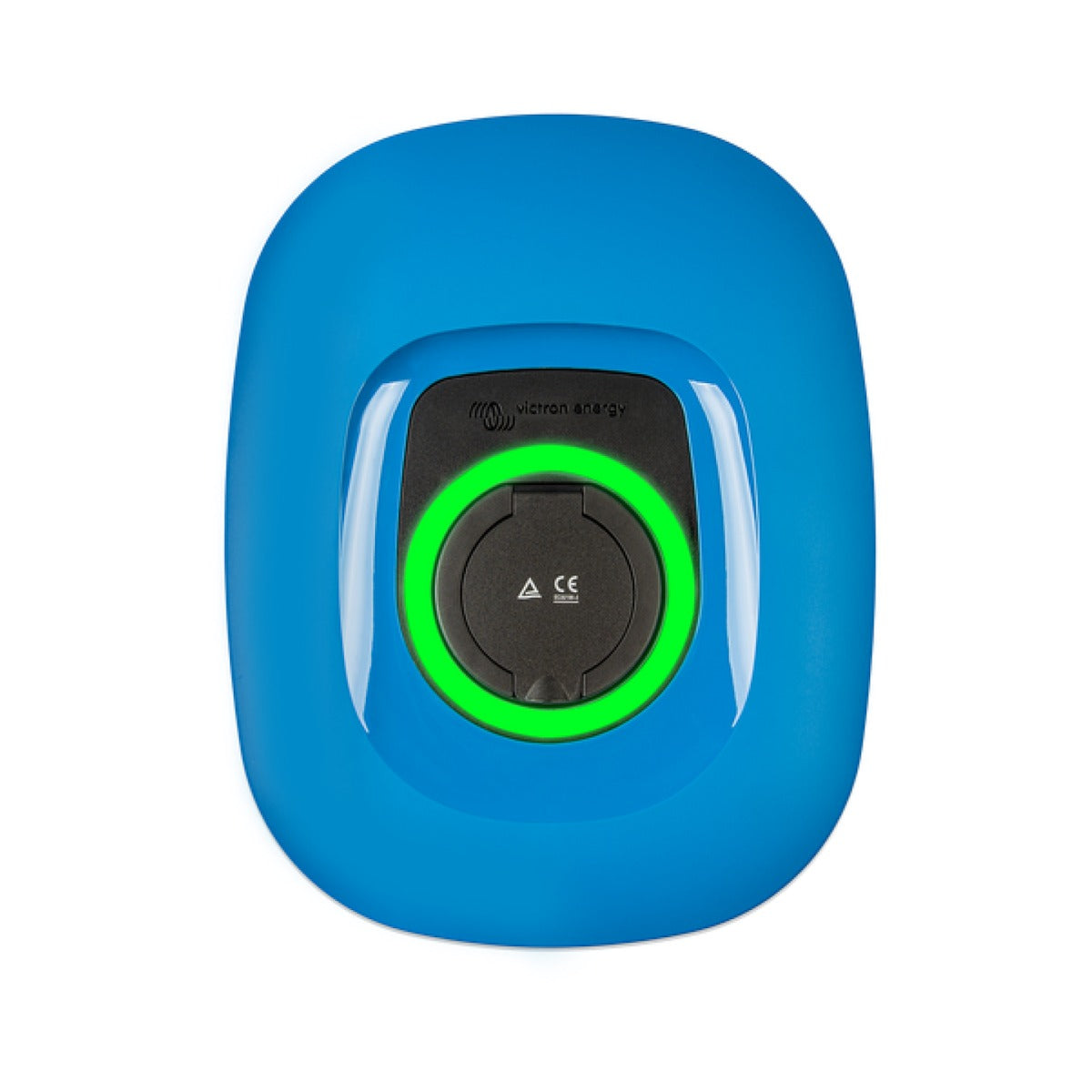

The Victron EV Charging Station NS is a high-power AC electric-vehicle charger that delivers up to 22 kW in three-phase mode or 7.3 kW in single-phase mode through a Type 2 (IEC 62196) socket. The 'NS' version carries a clean, modern front with no LCD screen; it ships with a blue front as standard, and black or white replacement fronts can be bought separately to match the installation.
It is designed to work as part of a Victron system. Setup, configuration and monitoring are handled through VictronConnect over Bluetooth and through the integrated web interface via a WiFi access point or a WiFi LAN. Fully integrated with a Victron GX device and the VRM Portal, it can be controlled and monitored remotely, with real-time and custom reports available over any period.
Three working modes cover most needs. Manual mode sets a fixed charge current between 6 and 32 A. Automatic mode detects surplus solar power and charges the vehicle with that excess only, maximising self-consumption. Scheduled mode charges at chosen times, for example overnight when grid energy is cheaper. A fully programmable RGB light ring around the charging port shows the charger state at a glance. It is covered by Victron's standard five-year warranty.
PRODUCT DETAILS
- Up to 22 kW three-phase or 7.3 kW single-phase AC charging
- Type 2 (IEC 62196) socket, configurable 6 to 32 A output
- Automatic mode charges from surplus solar power only
- Scheduled mode for charging at cheaper off-peak times
- Manual mode with adjustable charge current
- Full integration and remote control via Victron GX device and VRM Portal
- Setup and monitoring via VictronConnect Bluetooth and built-in WiFi web interface
- Programmable RGB light ring shows charger status at a glance
- Interchangeable front panel: blue supplied, black or white available separately
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Maximum charge power | 22 kW three-phase (7.3 kW single-phase) |
| Phases | Three-phase and single-phase |
| Connector | Type 2 socket (IEC 62196) |
Electrical
| Charge current range | 6 to 32 A per phase (rated 32 A per phase) |
| Operating modes | Manual, Automatic (solar surplus) and Scheduled |
| Connectivity | WiFi 802.11 b/g/n (2.4 GHz), Bluetooth, Modbus TCP over WiFi to GX device |
| Input voltage range | 170 to 265 VAC |
| Means to disconnect | External circuit breaker (40 A recommended), external RCD required |
Physical
| Protection category | IP44 |
| Dimensions | 372 x 292 x 122 mm (H x W x D) |
| Enclosure colour | Light Blue (RAL 5012); Traffic Black or Traffic White fronts available |
| Weight | 3 kg |
Environmental
| Operating temperature | -25 to +50°C |
Standards & Certifications
| Safety | IEC 61851-1, IEC 61851-22 |
