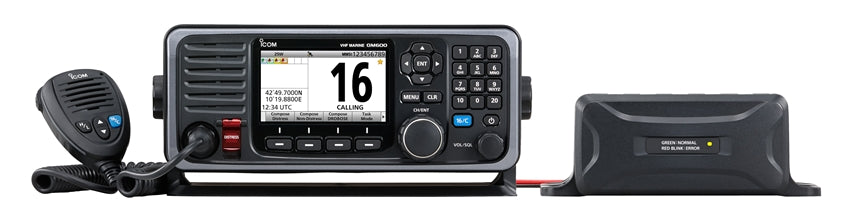

Icom GM600 GMDSS VHF Transceiver with Class A DSC
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Icom GM600 is a GMDSS VHF transceiver with Class A DSC, designed to provide a complete GMDSS VHF communication system for commercial SOLAS regulated vessels engaging in international voyages. It meets both the UK Marine Equipment Regulation (MER) Red Ensign mark and the European Marine Equipment Directive (MED) wheel mark, and when paired with the GM800 MF/HF radio it forms a full GMDSS VHF, MF and HF radio station.
The built-in DSC system, with a dedicated watch-keeping receiver monitoring channel 70, provides automated distress and safety communication and stores up to 100 MMSI numbers. A 4.3 inch wide viewing angle colour TFT LCD, directional keypad and soft keys keep operation clear and simple even when the radio is panel mounted. A waterproof paper speaker cone delivers loud, intelligible audio, the front panel carries IPX7 protection and a corrosion-resistant rear coating, and the required PS-310 DC-DC converter supplies stable 12.6 V power from a 12 V or 24 V source.
PRODUCT DETAILS
- GMDSS VHF transceiver with Class A DSC
- Meets ITU-R M.493-13 DSC requirements
- Meets UK MER Red Ensign and European MED wheel mark requirements
- Dedicated DSC watch-keeping receiver monitoring channel 70
- 4.3 inch wide viewing angle colour TFT LCD
- Intuitive directional keypad and soft key interface
- 10 W loud audio with waterproof paper speaker cone
- IPX7 front panel and corrosion-resistant rear coating
- Requires PS-310 DC-DC converter for MER/MED compliance
- HM-214V hand microphone
- DC power cable
- Mounting bracket kit
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Frequency range (Transmit) | 156.025-161.600 MHz |
| Frequency range (Receive) | 156.025-162.000 MHz |
| DSC frequency | 156.525 MHz (CH70) |
| Usable channels | INT channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement | 13.8 V DC (GM600); PS-310 input 24 V DC (21.6-31.2 V) or 12 V DC (10.8-15.6 V) |
| Current drain (Transmit, 25 W) | 3.3 A (with PS-310 #01) |
| Current drain (Receive, max. audio) | 2.0 A (with PS-310 #01) |
| Operating temperature range | -15 C to +55 C |
| Antenna impedance | 50 ohms (SO-239) |
| Weight (GM600, approx.) | 1600 g |
| Weight (PS-310, approx.) | 930 g |
| IEC 61162-1 input format | RMC, GGA, GNS, GLL, VTG |
| IEC 61162-1 output format | DSC, DSE |
Transmitter
| Output power | 25 W, 1 W |
| Max. frequency deviation | +/-5.0 kHz |
| Frequency error | Less than +/-0.5 kHz |
| Spurious emissions | Less than 0.25 microwatt |
| Adjacent channel power | More than 70 dB |
| Audio harmonic distortion | Less than 10% (at 1 kHz, 60% deviation) |
Receiver
| Sensitivity (20 dB SINAD) | Less than -7 dB microvolt emf typ. |
| Squelch sensitivity | Less than -2 dB microvolt emf |
| Adjacent channel selectivity | More than 75 dB |
| Spurious response | More than 75 dB |
| Intermodulation | More than 75 dB |
| Audio output power (external speaker) | 10 W (4 ohm load) at 10% distortion |
| Audio output power (internal speaker) | 2 W |
Environmental
| Waterproof rating (front panel) | IPX7 (1 m depth of water for 30 minutes) |
