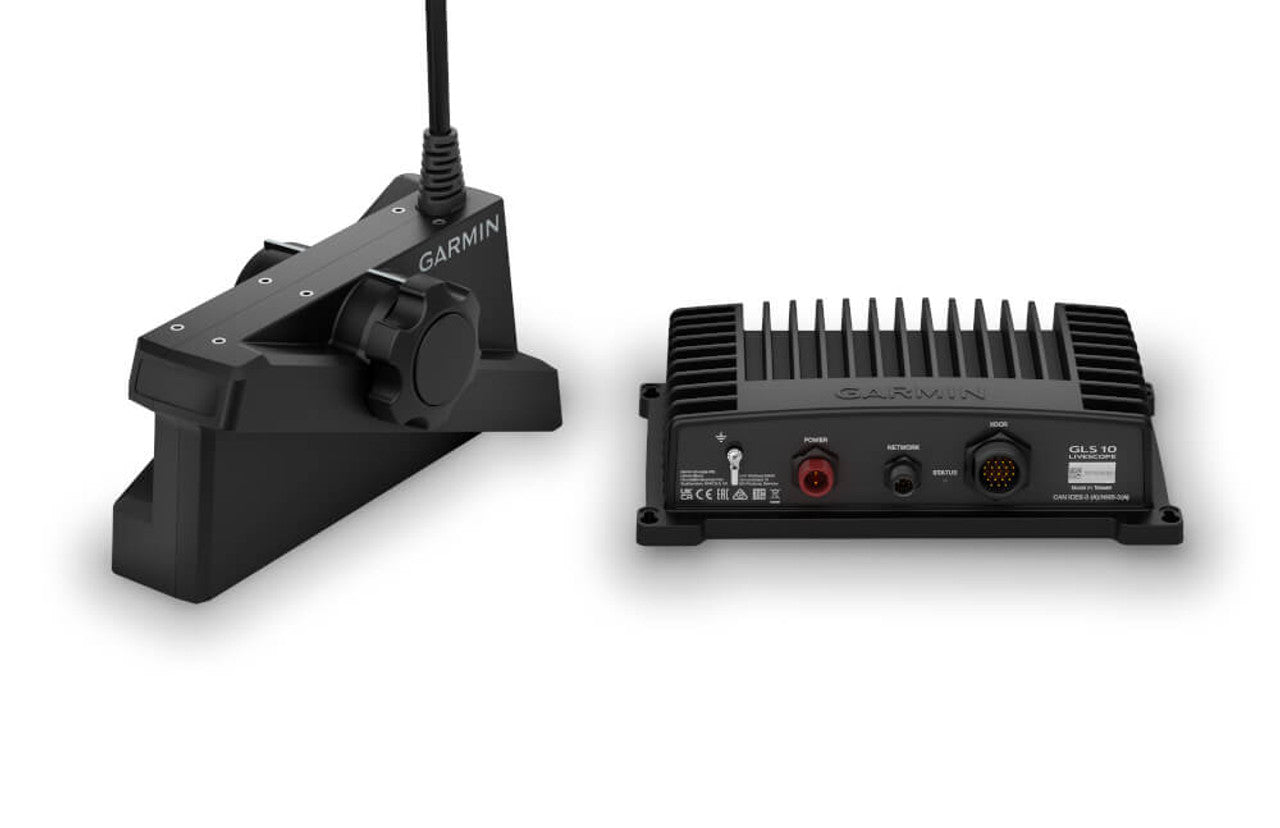

Garmin LiveScope XR System With GLS 10 and LVS62 Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The LiveScope XR System brings Garmin's live scanning sonar to coastal and open-water fishing, with the extended range that deeper water demands. It combines the GLS 10 sonar black box with the new LVS62 transducer, which sees up to 152 m (500 ft) in freshwater and up to 106 m (350 ft) in saltwater. LiveScope Forward, LiveScope Down and Perspective views are all available thanks to the included Perspective Mode Mount, with a 135-degree front-to-back by 20-degree side-to-side field of view and 265 kHz to 550 kHz operation. AHRS stabilisation keeps the sonar view steady even in rough conditions. Because it shares the GLS 10 black box, existing LiveScope owners can upgrade with just the new transducer. The system ships with the Perspective Mode Mount, trolling-motor barrel and shaft mounts, and Garmin Marine Network cabling.
PRODUCT DETAILS
- Extended-range LiveScope for coastal and open water: GLS 10 sonar black box plus LVS62 transducer
- Live scanning sonar up to 152 m (500 ft) in freshwater and up to 106 m (350 ft) in saltwater
- LiveScope Forward, LiveScope Down and Perspective views, with the Perspective Mode Mount included
- 265 kHz to 550 kHz operation with a 135-degree front-to-back by 20-degree side-to-side field of view
- AHRS stabilisation keeps the sonar view steady even in rough conditions
- Upgrades an existing LiveScope System: reuses the GLS 10 black box with the new LVS62 transducer
- Includes Perspective Mode Mount plus trolling-motor barrel and shaft mounts and Garmin Marine Network cabling
- LiveScope GLS 10 sonar black box
- LiveScope XR LVS62 transducer
- Perspective Mode Mount
- Trolling-motor barrel mount
- Trolling-motor shaft mount
- Power cable
- 2 m Garmin Marine Network cable (small connector)
- Garmin Marine Network adapter cable
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| System contents | LiveScope GLS 10 sonar black box plus LiveScope XR LVS62 transducer |
| Water rating | IPX7 |
| Operating temperature (transducer) | 0 to 40°C (32 to 104°F) |
Sonar
| Sonar type | Live, real-time scanning sonar (Panoptix LiveScope XR) with extended range for coastal and open water |
| Viewing modes | LiveScope Forward, LiveScope Down and Perspective (Perspective Mode Mount included) |
| Frequency | 265 kHz to 550 kHz |
| Maximum depth/range (freshwater) | Down and Forward: 152 m (500 ft) |
| Maximum depth/range (saltwater) | Down and Forward: 106 m (350 ft) |
| Field of view (beam coverage) | Front to back: 135 degrees; side-to-side: 20 degrees |
| Transmit power | 500 W |
Connectivity
| Network connection | LVS62 transducer plugs into the GLS 10 sonar black box (XDCR port); the GLS 10 connects to a compatible Garmin chartplotter via the Garmin Marine Network (1 small-connector network port) |
| Connector | 21-pin transducer connector |
| Compass / stabilisation | Built-in AHRS sensor and internal compass keep the sonar view steady, even in rough conditions (calibration required) |
Mounting
| Transducer mounting options | Perspective Mode Mount, trolling-motor barrel mount and trolling-motor shaft mount included; pole mounting supported |
Physical
| Transducer dimensions (L x H x W) | 208.25 x 101.00 x 70.10 mm (8.20 x 3.98 x 2.76 in) |
| Transducer weight (with cable) | 1778 g (3.92 lb) |
| Transducer weight (without cable) | 1205 g (2.66 lb) |
| GLS 10 sonar black box dimensions (W x H x D) | 245 x 149 x 65 mm (9.7 x 5.9 x 2.6 in) |
| GLS 10 sonar black box weight | 1.96 kg (4.33 lb) |
Electrical
| GLS 10 power input | 10 to 32 Vdc |
| GLS 10 power usage | 21 W typical, 58 W maximum |
