LiveScope™ Plus, LVS34 Transducer only
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The LiveScope Plus LVS34 transducer lets owners of an existing Garmin LiveScope System step up to the latest live scanning sonar without buying a new black box, because it reuses the same GLS 10 sonar module. Compared with the original LiveScope it offers improved resolution, reduced noise, clearer images and better target separation, and it provides LiveScope Forward, LiveScope Down and Perspective views thanks to the included Perspective Mode Mount. A wide 135-degree front-to-back by 20-degree side-to-side field of view and up to 61 m of range reveal fish, structure and your lure in real time, while a built-in AHRS sensor and compass keep the picture steady. The transducer uses a 21-pin connector and ships with the Perspective Mode Mount plus trolling-motor barrel and shaft mounts.
PRODUCT DETAILS
- LiveScope Plus LVS34 transducer on its own to upgrade an existing LiveScope System
- Improved resolution, reduced noise, clearer images and better target separation than the original LiveScope
- LiveScope Forward, LiveScope Down and Perspective views, with the Perspective Mode Mount included
- 135-degree front-to-back by 20-degree side-to-side field of view, up to 61 m (200 ft) range
- Built-in AHRS sensor and compass keep the sonar image stable as the boat moves
- Reuses your existing GLS 10 sonar black box, so no new black box needed
- 21-pin connector; Perspective Mode Mount plus trolling-motor barrel and shaft mounts included

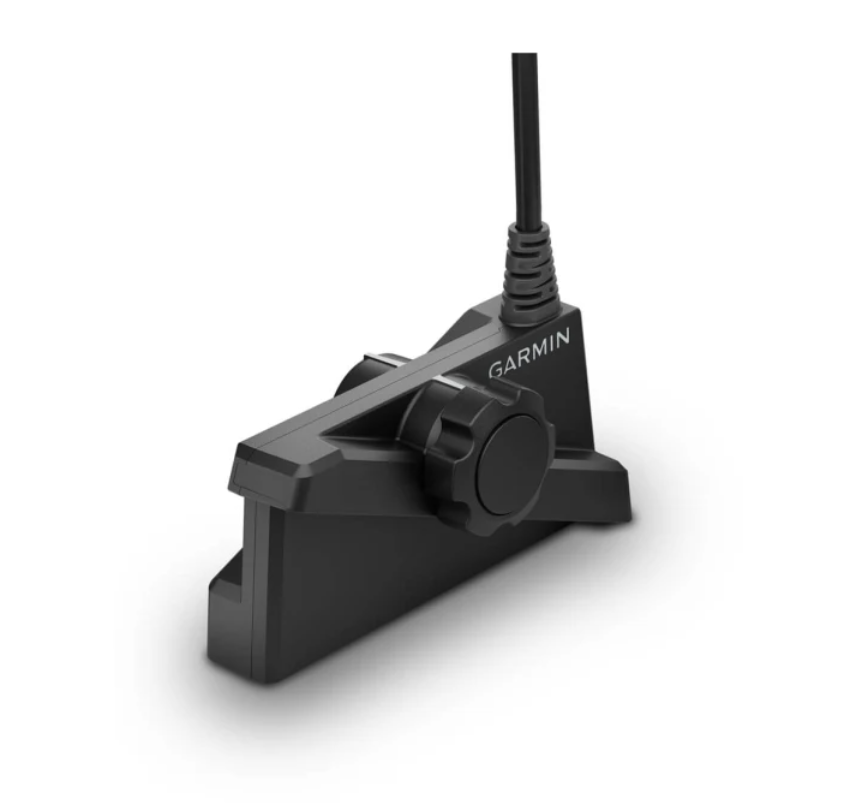

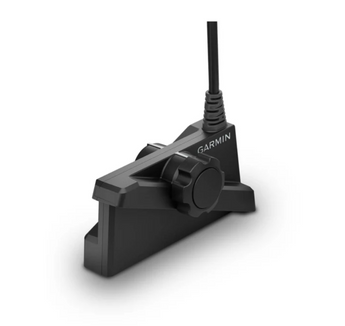

- LiveScope Plus LVS34 transducer
- Perspective Mode Mount
- Trolling-motor barrel mount
- Trolling-motor shaft mount
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Sonar
| Sonar type | Live, real-time scanning sonar (Panoptix LiveScope Plus) with improved resolution, reduced noise and clearer target separation |
| Viewing modes | LiveScope Forward, LiveScope Down and Perspective (Perspective Mode Mount included) |
| Frequency | 530 kHz to 1,100 kHz |
| Maximum depth/range | 61 m (200 ft) down and forward; dependent upon water salinity, bottom type and other water conditions |
| Field of view (beam coverage) | Front to back: 135 degrees; side-to-side: 20 degrees |
| Transmit power | 500 W |
Connectivity
| Network connection | Connects to the LiveScope GLS 10 sonar black box (XDCR port); the GLS 10 connects to a compatible Garmin chartplotter via the Garmin Marine Network. Intended to upgrade an existing LiveScope System |
| Connector | 21-pin transducer connector |
| Compass / stabilisation | Built-in AHRS sensor and internal compass for sonar image stabilisation (calibration required) |
Mounting
| Mounting options | Perspective Mode Mount, trolling-motor barrel mount and trolling-motor shaft mount included; pole mounting supported |
Physical
| Dimensions (L x H x W) | 161.7 x 77.5 x 47.8 mm (6.37 x 3.05 x 1.88 in) |
| Weight (transducer only) | 1018 g (2.25 lb) |
General
| Operating temperature | -10 to 40°C (14 to 104°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
