LiveScope™ Plus System with GLS 10™ and LVS34 Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The LiveScope Plus System is the latest evolution of Garmin's live scanning sonar, building on the original LiveScope with improved resolution, reduced noise, clearer images and better target separation. It combines the GLS 10 sonar black box with the LVS34 transducer, which delivers LiveScope Forward, LiveScope Down and Perspective views thanks to the included Perspective Mode Mount. A wide 135-degree front-to-back by 20-degree side-to-side field of view and up to 61 m of range let you watch fish, structure and your lure in real time, whether the boat is moving or holding position. A built-in AHRS sensor and compass keep the picture steady in a chop. The system ships with the Perspective Mode Mount plus trolling-motor barrel and shaft mounts, and the GLS 10 connects to a compatible Garmin chartplotter over the Garmin Marine Network.
PRODUCT DETAILS
- Complete LiveScope Plus system: GLS 10 sonar black box plus LVS34 scanning transducer
- Improved resolution, reduced noise, clearer images and better target separation than the original LiveScope
- LiveScope Forward, LiveScope Down and Perspective views, with the Perspective Mode Mount included
- 135-degree front-to-back by 20-degree side-to-side field of view, up to 61 m (200 ft) range
- Built-in AHRS sensor and compass keep the sonar image stable as the boat moves
- Perspective Mode Mount, trolling-motor barrel and shaft mounts plus Garmin Marine Network cabling included
- Connects to a compatible Garmin chartplotter over the Garmin Marine Network

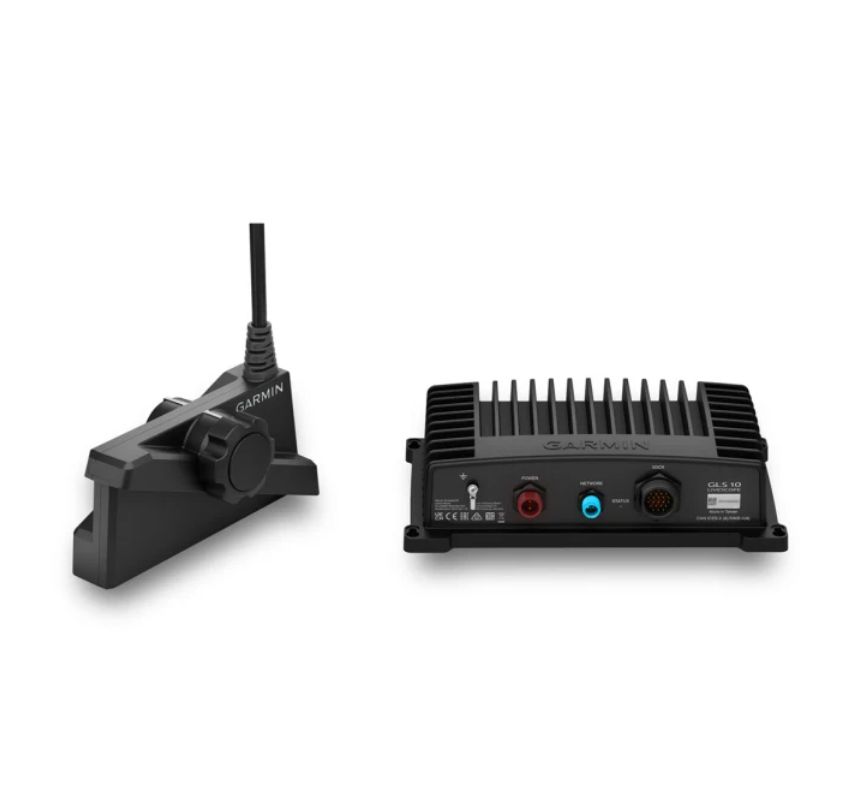

- LiveScope GLS 10 sonar black box
- LiveScope Plus LVS34 transducer
- Perspective Mode Mount
- Trolling-motor barrel mount
- Trolling-motor shaft mount
- Power cable
- 2 m Garmin Marine Network cable (small connector)
- Garmin Marine Network adapter cable
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| System contents | LiveScope GLS 10 sonar black box plus LiveScope Plus LVS34 transducer |
| Water rating | IPX7 |
| Operating temperature (transducer) | -10 to 40°C (14 to 104°F) |
Sonar
| Sonar type | Live, real-time scanning sonar (Panoptix LiveScope Plus) with improved resolution, reduced noise and clearer target separation |
| Viewing modes | LiveScope Forward, LiveScope Down and Perspective (Perspective Mode Mount included) |
| Frequency | 530 kHz to 1,100 kHz |
| Maximum depth/range | 61 m (200 ft) down and forward; dependent upon water salinity, bottom type and other water conditions |
| Field of view (beam coverage) | Front to back: 135 degrees; side-to-side: 20 degrees |
| Transmit power | 500 W |
Connectivity
| Network connection | LVS34 transducer plugs into the GLS 10 sonar black box (XDCR port); the GLS 10 connects to a compatible Garmin chartplotter via the Garmin Marine Network |
| Connector | 21-pin transducer connector |
| Compass / stabilisation | Built-in AHRS sensor and internal compass for sonar image stabilisation (calibration required) |
Mounting
| Transducer mounting options | Perspective Mode Mount, trolling-motor barrel mount and trolling-motor shaft mount included; pole mounting supported |
Physical
| Transducer dimensions (L x H x W) | 161.7 x 77.5 x 47.8 mm (6.37 x 3.05 x 1.88 in) |
| Transducer weight (transducer only) | 1018 g (2.25 lb) |
| GLS 10 sonar black box dimensions (W x H x D) | 245 x 149 x 65 mm (9.7 x 5.9 x 2.6 in) |
| GLS 10 sonar black box weight | 1.96 kg (4.33 lb) |
Electrical
| GLS 10 power input | 10 to 32 Vdc |
| GLS 10 power usage | 21 W typical, 58 W maximum |
