Garmin

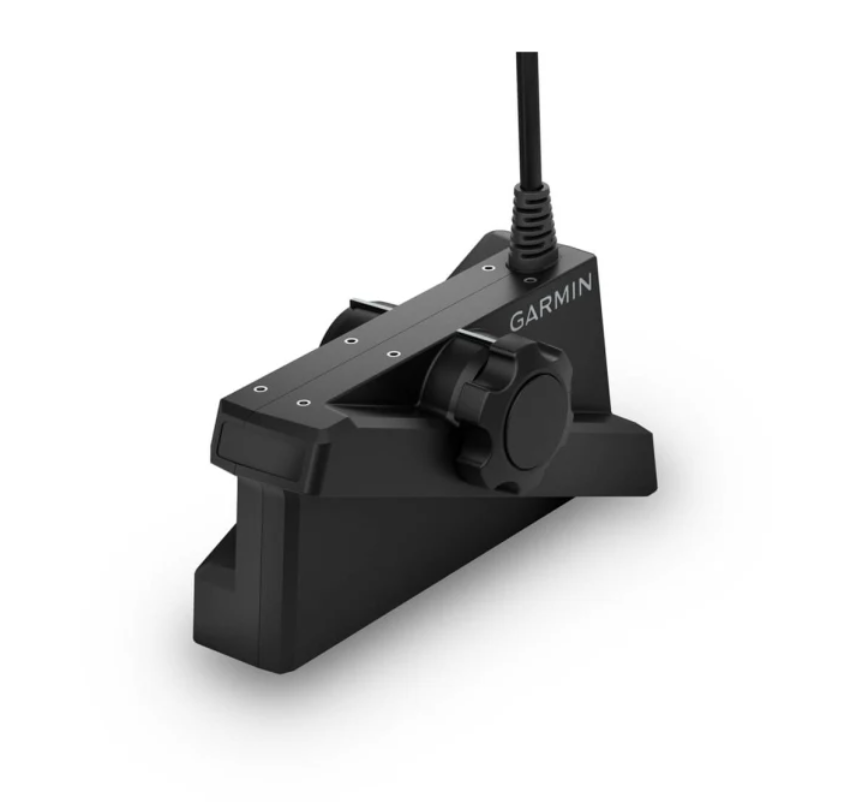

LiveScope™ XR LVS62, Transducer Only
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The LiveScope XR LVS62 transducer lets owners of an existing Garmin LiveScope System add the extended range of LiveScope XR without buying a new black box, because it reuses the same GLS 10 sonar module. Built for coastal and open-water fishing, it sees up to 152 m (500 ft) in freshwater and up to 106 m (350 ft) in saltwater, and provides LiveScope Forward, LiveScope Down and Perspective views thanks to the included Perspective Mode Mount. A 135-degree front-to-back by 20-degree side-to-side field of view and 265 kHz to 550 kHz operation reveal fish and structure at distance, while AHRS stabilisation keeps the view steady in rough water. The transducer uses a 21-pin connector and ships with the Perspective Mode Mount, trolling-motor barrel and shaft mounts and a power cable.
PRODUCT DETAILS
- LiveScope XR LVS62 transducer on its own to add extended range to an existing LiveScope System
- Live scanning sonar up to 152 m (500 ft) in freshwater and up to 106 m (350 ft) in saltwater
- LiveScope Forward, LiveScope Down and Perspective views, with the Perspective Mode Mount included
- 265 kHz to 550 kHz operation with a 135-degree front-to-back by 20-degree side-to-side field of view
- AHRS stabilisation keeps the sonar view steady even in rough conditions
- Reuses your existing GLS 10 sonar black box, so no new black box needed
- 21-pin connector; Perspective Mode Mount plus trolling-motor barrel and shaft mounts included
- LiveScope XR LVS62 transducer
- Perspective Mode Mount
- Trolling-motor barrel mount
- Trolling-motor shaft mount
- Power cable
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Sonar
| Sonar type | Live, real-time scanning sonar (Panoptix LiveScope XR) with extended range for coastal and open water |
| Viewing modes | LiveScope Forward, LiveScope Down and Perspective (Perspective Mode Mount included) |
| Frequency | 265 kHz to 550 kHz |
| Maximum depth/range (freshwater) | Down and Forward: 152 m (500 ft) |
| Maximum depth/range (saltwater) | Down and Forward: 106 m (350 ft) |
| Field of view (beam coverage) | Front to back: 135 degrees; side-to-side: 20 degrees |
| Transmit power | 500 W |
Connectivity
| Network connection | Connects to the LiveScope GLS 10 sonar black box (XDCR port); the GLS 10 connects to a compatible Garmin chartplotter via the Garmin Marine Network. Intended to upgrade an existing LiveScope System |
| Connector | 21-pin transducer connector |
| Compass / stabilisation | Built-in AHRS sensor and internal compass keep the sonar view steady, even in rough conditions (calibration required) |
Mounting
| Mounting options | Perspective Mode Mount, trolling-motor barrel mount and trolling-motor shaft mount included; pole mounting supported |
Physical
| Dimensions (L x H x W) | 208.25 x 101.00 x 70.10 mm (8.20 x 3.98 x 2.76 in) |
| Weight (with cable) | 1778 g (3.92 lb) |
| Weight (without cable) | 1205 g (2.66 lb) |
General
| Operating temperature | 0 to 40°C (32 to 104°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
