Garmin

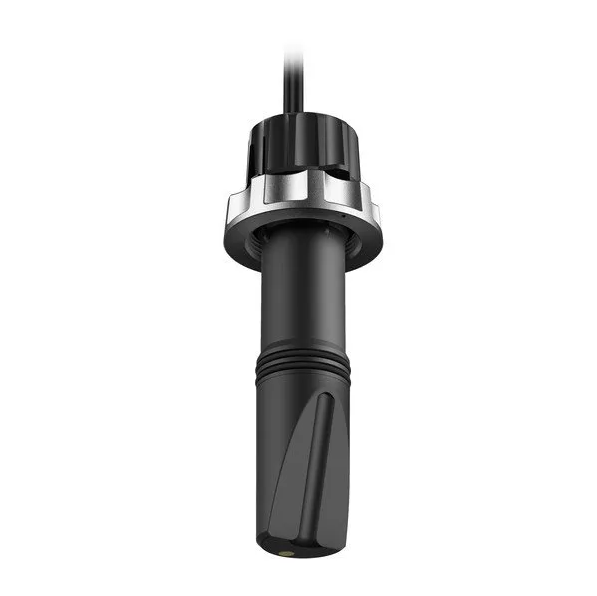

Panoptix™ PS51-TH Transducer Only (Replacement)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This is the replacement transducer element for the Panoptix PS51-TH thru-hull, intended for owners who need to renew the transducer while reusing their existing fairing block and mounting hardware. It restores the same capability as the original PS51-TH: FrontVu forward-looking sonar to help avoid running aground by showing the bottom up to 91 m (300 ft) ahead, and LiveVu Forward to watch fish and objects ahead in real time. The phased-array multibeam design uses a narrow 20-degree beam and a built-in AHRS sensor for stable images in rough water. As a replacement part it ships as the transducer element only, without the fairing block or mounting kit, and connects directly to a compatible Garmin chartplotter over the Garmin Marine Network.
PRODUCT DETAILS
- Replacement Panoptix PS51-TH thru-hull transducer element
- Restores FrontVu forward-looking sonar and LiveVu Forward on a compatible Garmin chartplotter
- FrontVu shows the bottom up to 91 m (300 ft) ahead to help avoid running aground
- Phased-array multibeam sonar with a narrow 20-degree beam and built-in AHRS stabilisation
- Transducer only: fairing block and mounting kit are not included
- Connects directly over the Garmin Marine Network, no black box needed
- Panoptix PS51-TH thru-hull transducer (replacement element only)
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Configuration | Replacement thru-hull transducer element only for the Panoptix PS51-TH; does not include the fairing block or full mounting kit (fairing block 010-12565-00 and blanking plug 010-12565-02 sold separately) |
| Operating temperature | 0 to 50°C (32 to 122°F) |
Sonar
| Sonar modes | FrontVu (forward-looking, for collision avoidance) and LiveVu Forward (real-time) |
| Sonar type | Phased-array multibeam forward-looking sonar |
| Frequency | 417 kHz |
| Forward range | Displays the bottom up to 91 m (300 ft) ahead of the boat, at 8 to 10 times the current depth |
| Beam coverage | 20-degree narrow beam |
Connectivity
| Network connection | Connects directly to a compatible Garmin chartplotter via the Garmin Marine Network (RJ-45); no separate black box required |
| Stabilisation | Includes an AHRS sensor for motion stabilisation in rough water |
Mounting
| Mounting type | Standard 2-inch stainless-steel thru-hull (transducer element only; fairing block and mounting kit not included) |
Physical
| Dimensions (W x H) | 40 x 192.5 mm (1.58 x 7.58 in) |
Electrical
| Power input | 10 to 35 Vdc |
| Fuse | 4 A |
