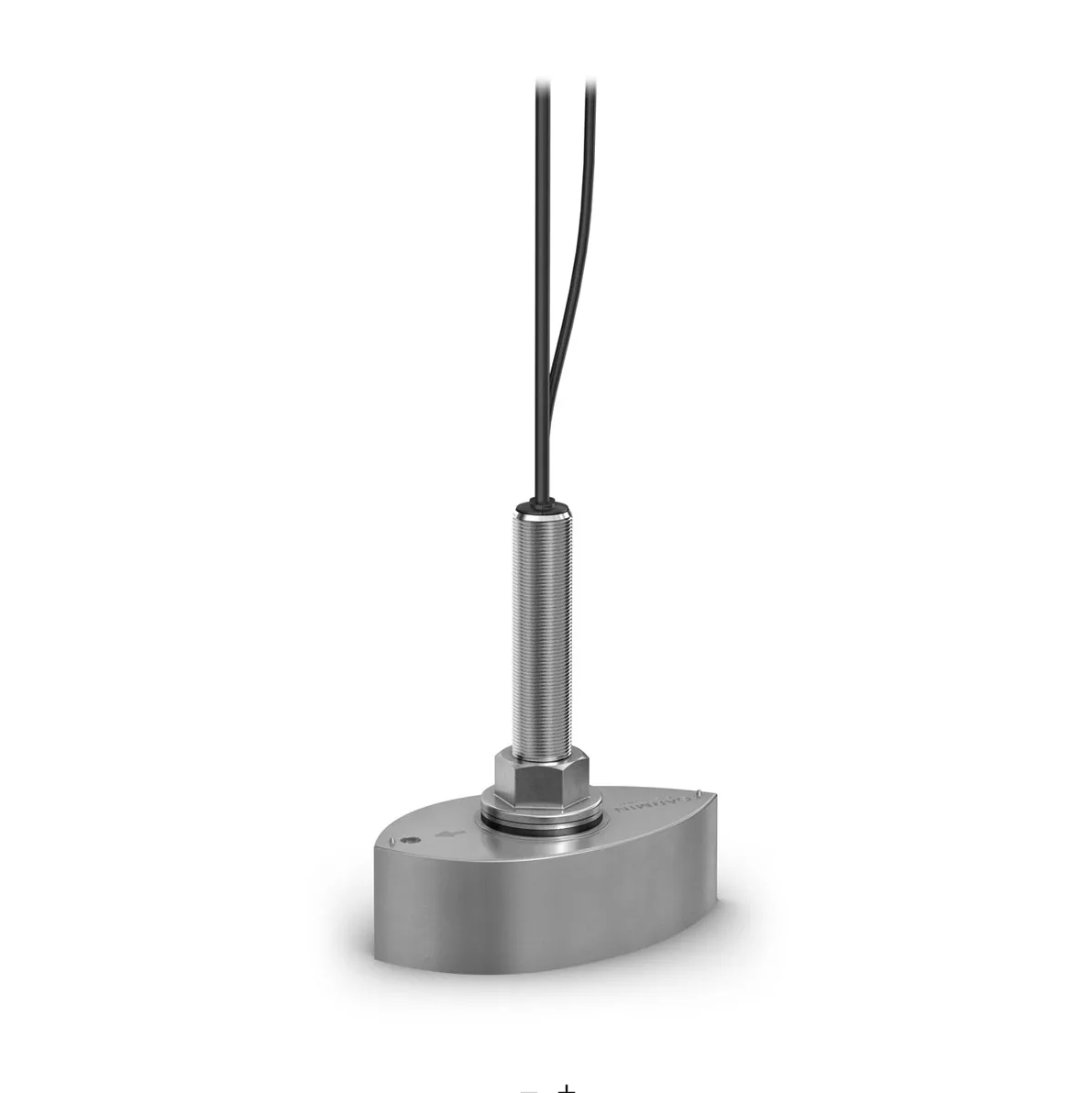

Panoptix™ PS70, Transducer Only
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

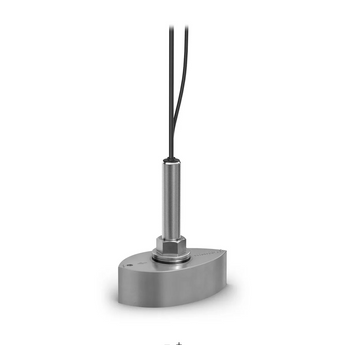

This is the Panoptix PS70 transducer on its own, for boats that can flush or pocket mount the unit and do not need the fairing block. It is the same stainless-steel thru-hull live sonar transducer powered by Garmin RapidReturn, giving live sonar views up to 305 m (1,000 ft) below the boat for deep-sea fishing. Four modes cover every situation: LiveVu Down for real-time targets, Traditional sonar, Triple-Beam for a port, straight-down and starboard split, and RealVu 3D Historical for a scanned three-dimensional view. A wide 120-degree port-to-starboard by 8-degree bow-to-stern beam covers large areas of water, while 800 W of power, image stabilisation and a fast refresh rate keep the picture clear at depth. It connects through an integrated Garmin BlueNet cable to a Garmin BlueNet chartplotter or BlueNet 20 switch, with legacy Garmin Marine Network chartplotters supported via an adapter cable.
PRODUCT DETAILS
- Panoptix PS70 stainless-steel thru-hull live sonar transducer, supplied on its own for flush or pocket mounting
- Live sonar views up to 305 m (1,000 ft) below the boat, powered by Garmin RapidReturn
- Four sonar modes: LiveVu Down, Traditional, Triple-Beam and RealVu 3D Historical
- Wide 120-degree (port to starboard) by 8-degree (bow to stern) beam
- 800 W power output with image stabilisation and a fast refresh rate
- Transducer only: no fairing block (available separately for angled hulls)
- Connects via an integrated Garmin BlueNet cable to a Garmin BlueNet chartplotter (or Marine Network via adapter)
- Panoptix PS70-TH stainless-steel thru-hull transducer with integrated Garmin BlueNet cable
- Hull nut, washers and mounting hardware
- Isolation bushings (for metal hulls)
- Anti-seize compound
- 7.5 A fuse
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Configuration | PS70 stainless-steel thru-hull transducer supplied on its own (no fairing block), for flush or pocket mounting |
| Operating temperature | 0 to 40°C (32 to 104°F) |
| Storage temperature | -40 to 70°C (-40 to 158°F) |
Sonar
| Sonar type | Live sonar powered by Garmin RapidReturn (multi-beam), with image stabilisation; minimum 10 frames per second refresh |
| Sonar modes | LiveVu Down, Traditional sonar, Triple-Beam (port / straight down / starboard) and RealVu 3D Historical |
| Frequency | 200 kHz (190 to 210 kHz) |
| Maximum depth | Up to 305 m (1,000 ft) |
| Beam coverage | 120 degrees (port to starboard) by 8 degrees (bow to stern) |
| Power output | 800 W |
Connectivity
| Network connection | Integrated Garmin BlueNet cable connects to a Garmin BlueNet chartplotter or Garmin BlueNet 20 switch; legacy Garmin Marine Network chartplotters supported via the Garmin Marine Network adapter cable (010-12531-01). No separate sonar black box required |
Mounting
| Mounting type | Stainless-steel thru-hull; flush or pocket mount (no fairing block supplied); suits cored fibreglass, non-cored fibreglass and metal hulls (isolation bushings for metal hulls) |
Physical
| Transducer dimensions (W x H) | 114 x 216 mm (4.5 x 8.5 in) |
Electrical
| Input voltage | 10 to 35 Vdc |
| Fuse | 7.5 A (included) |
