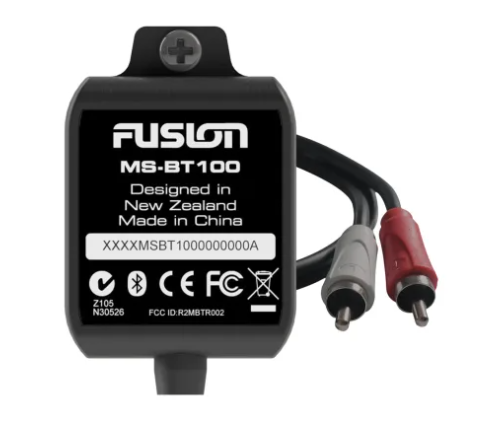

Fusion MS-BT100 Bluetooth Module Fusion MS-BT100 Bluetooth Module
Fusion MS-BT100 Bluetooth Module

Fusion Marine Audio

Fusion MS-BT100 Bluetooth Module

£44.99
Tax included. Shipping calculated at checkout.
MS-BT100
The Fusion MS-BT100 is a marine Bluetooth receiver module that adds wireless audio streaming to a compatible Fusion stereo through the RCA AUX input. It is IP65 rated with integrated voltage-spike protection and an effective range of up to 10 metres.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Fusion MS-BT100 is a compact Bluetooth receiver module that adds wireless audio streaming to a compatible Fusion marine stereo. It connects to the head unit through the RCA AUX IN sockets and a switched power feed, so you can stream music from a phone, tablet or other Bluetooth device without changing your existing installation.

\n

Built for the marine environment, the module carries an IEC 60529 IP65 rating that seals it against dust ingress and protects it from water jets, and it includes integrated protection against the voltage spikes common in 12 volt boat electrical systems. It mounts with the supplied adhesive pad or a single screw and ships with a 1.5 metre wiring harness, giving flexibility to position it for the best signal.

\n

Once paired, playback is controlled from the Bluetooth device rather than the stereo, and the AUX IN source is selected on the head unit. The MS-BT100 pairs with Fusion stereos that have an RCA auxiliary input, including several MS and CA series models.

PRODUCT DETAILS

  • Adds Bluetooth audio streaming to a compatible Fusion marine stereo
  • Connects simply through the stereo RCA AUX IN sockets
  • IEC 60529 IP65 rated against dust and water jets
  • Integrated protection against marine voltage spikes
  • Wireless range of up to 10 metres (33 feet)
  • Mounts with the supplied adhesive pad or a single screw
  • A2DP profile streams from phones, tablets and other Bluetooth devices

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

TypeBluetooth audio receiver module
Water and Dust RatingIEC 60529 IP65
Voltage-Spike ProtectionIntegrated
Compass-Safe Distance5 cm (2 in.)

Connectivity

BluetoothA2DP V3.0, Class 2
Operating RangeUp to 10 m (33 ft.)
Wireless FrequencyBluetooth 2.4 GHz @ 5 dBm max
Audio Output2 x RCA to stereo AUX IN
Compatible StereosFusion MS and CA series with RCA AUX input

Physical

Input Voltage10 to 16 Vdc
Operating Current (max.)0.1 A
Dimensions (H x W x D)59 x 42 x 15 mm
Cable Length1.5 m (5 ft.)
