EmpirBus™ SP8 & SP12 Switches, SP8, Horizontal EmpirBus™ SP8 & SP12 Switches, SP8, Horizontal
EmpirBus™ SP8 & SP12 Switches, SP8, Horizontal

Garmin

EmpirBus™ SP8 & SP12 Switches, SP8, Horizontal

£820.00
Tax included. Shipping calculated at checkout.
010-02368-00

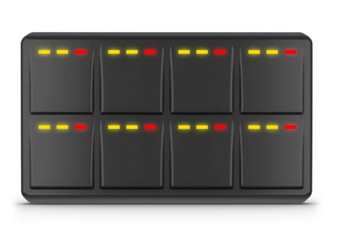

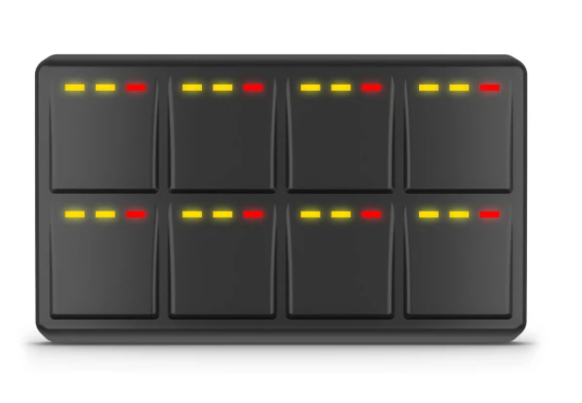

The EmpirBus SP8 is an 8-way NMEA 2000 switch panel for digital switching systems, providing control inputs with individual LED status indicators. This horizontal model has an IP67 front, making it suitable for indoor or exposed mounting.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EmpirBus SP8 switch panel is a compact, rugged interface to an EmpirBus digital switching system. Its eight switches send control inputs to the system, while individual LED indicators feed status information back to the operator, replacing conventional switch banks with a single networked panel.

Built for the marine environment, the SP8 is waterproof to IP67 from the front and has a UV-stable face plate, so it can be fitted internally or in exposed helm and cockpit positions. User-defined legends label each switch, and night backlighting with running and alarm indications keeps the panel readable in all conditions. It mounts to any flat surface up to 20 mm deep using the supplied template and connects to the system over NMEA 2000. This is the horizontal (landscape) orientation.

PRODUCT DETAILS

  • 8-way switch panel with individual LED status indicators
  • Horizontal (landscape) orientation
  • IP67 waterproof from the front for exposed mounting
  • UV-stable face plate for harsh marine conditions
  • Night backlight with running and alarm indication
  • User-defined switch legends
  • Fits any flat surface up to 20 mm deep using the supplied template
  • CAN-bus NMEA 2000 connection, operates -20 C to +70 C
  • EmpirBus SP8 switch panel (horizontal)
  • Mounting template
  • Documentation

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Module/Switching

Type8-way digital switch panel for EmpirBus
Switches8-way switch with individual LED indicators
OrientationHorizontal (landscape)
IndicatorsLED running and alarm indication with night backlight
LegendsUser-defined switch legends

Connectivity

CommunicationCAN-bus NMEA 2000

Physical

MountingFits any flat surface up to 20 mm deep; supplied template

Environmental

Water ratingIP67 from the front when fitted externally
FaceplateUV-stable front plate for harsh marine conditions
Operating temperature-20 C to +70 C
InstallationSuitable for indoor or outdoor (front-of-panel) fitting
What is the difference between the SP8 and SP12 panels?
The SP8 is an 8-way switch panel, while the SP12 offers up to 12x2 switches. The SP8 is also rated IP67 from the front for exposed mounting, whereas the SP12 is intended for internal fitting.
Can the SP8 be mounted in an exposed location?
Yes. The SP8 is waterproof to IP67 from the front and has a UV-stable face plate, so it can be fitted internally or in exposed helm and cockpit positions.
How does the SP8 connect to the system?
The SP8 connects to the EmpirBus system over a CAN-bus NMEA 2000 network. It mounts to any flat surface up to 20 mm deep using the supplied template.
Can I label the switches?
Yes. Each switch uses a user-defined legend, and the panel is backlit for night operation with running and alarm indication on the LED indicators.
