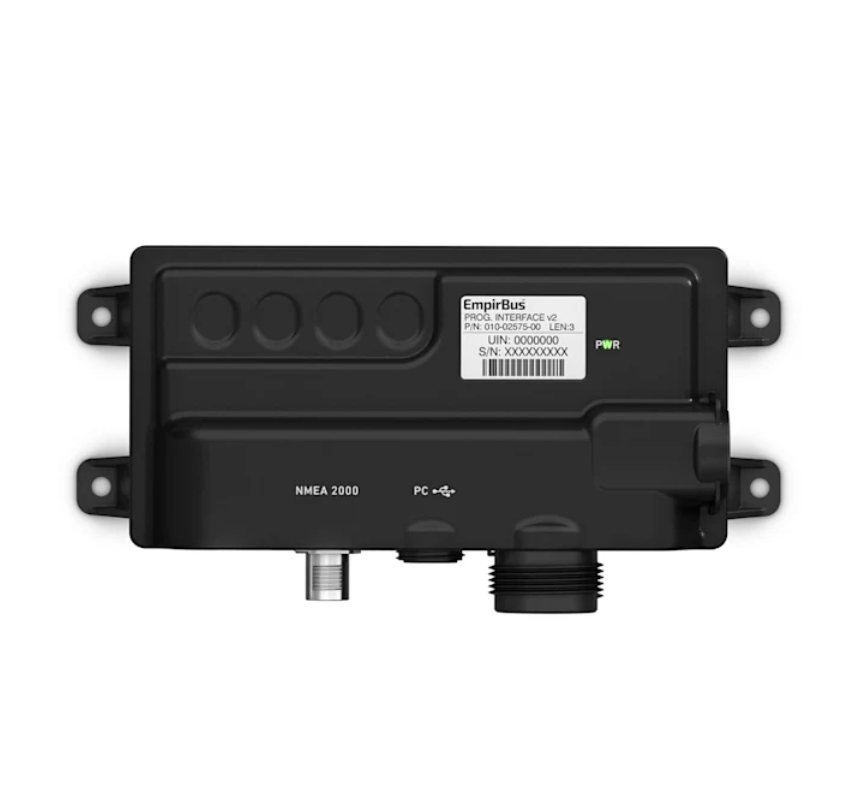

EmpirBus™ Prog. Interface v2 EmpirBus™ Prog. Interface v2
EmpirBus™ Prog. Interface v2

Garmin

EmpirBus™ Prog. Interface v2

£679.99
Tax included. Shipping calculated at checkout.
010-02575-00
The EmpirBus Prog. Interface v2 is a PC-to-NMEA 2000 programming bridge used to configure EmpirBus digital switching systems that do not have an installed MCU. It connects to a PC over USB for use with EmpirBus Studio software.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EmpirBus Prog. Interface v2 is the programming bridge that lets an installer configure an EmpirBus digital switching system from a PC. It is used on systems that do not have an MCU fitted, acting as the link between a computer and the NMEA 2000 network so that programming can be transferred to the modules and the system accessed for setup and changes.

The interface connects to the PC over USB for use with EmpirBus Studio configuration software and draws its power from the NMEA 2000 network. Sharing the second-generation hardware platform, it also provides two galvanically isolated auxiliary CAN ports and two RS485 ports for connection to external devices. It is an essential commissioning and service tool for EmpirBus installations.

PRODUCT DETAILS

  • PC-to-NMEA 2000 programming bridge for EmpirBus systems
  • Used to configure systems that do not have an installed MCU
  • Connects to a PC over USB for use with EmpirBus Studio software
  • Two auxiliary CAN ports, galvanically isolated
  • Two RS485 ports, galvanically isolated
  • Powered from the NMEA 2000 network, 9-32 V DC
  • Essential commissioning and service tool for EmpirBus installations
  • EmpirBus Prog. Interface v2
  • NMEA 2000 cable (2 m)
  • NMEA 2000 T-connector
  • USB cable (2 m)
  • Documentation

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Module/Switching

RolePC-to-NMEA 2000 programming bridge for EmpirBus systems without an installed MCU; used to transfer programming and access the system
SoftwareConnects to a PC running EmpirBus Studio configuration software

Connectivity

CommunicationCAN-bus NMEA 2000
PC interfaceUSB
Auxiliary CAN ports2 (galvanically isolated)
RS485 ports2 (galvanically isolated)

Electrical

PowerPowered via NMEA 2000 network, 9-32 V DC

Physical

Dimensions173 x 89 x 32.5 mm

General

SystemEmpirBus digital switching

No downloads available for this product.

What is the Prog. Interface v2 used for?
It is a programming bridge between a PC and the NMEA 2000 network, used to configure EmpirBus systems that do not have an MCU installed. It transfers the programming to the modules and provides access to the system for setup and changes.
How does it connect to a computer?
The interface connects to a PC over USB and is used with EmpirBus Studio configuration software. It draws its power from the NMEA 2000 network.
Does it have any other interfaces?
Yes. It shares the second-generation hardware platform and provides two galvanically isolated auxiliary CAN ports and two RS485 ports for connection to external devices.
