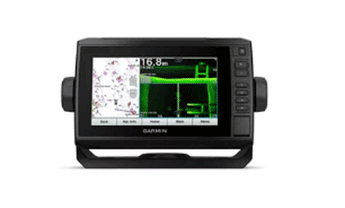

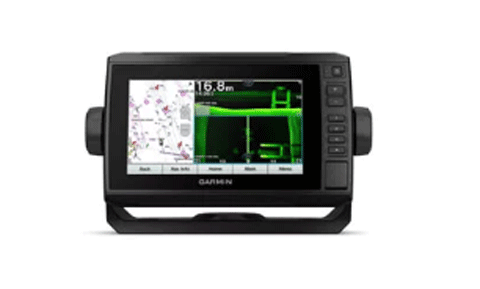

Garmin ECHOMAP UHD 75sv Chartplotter No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin ECHOMAP UHD 75sv is a 7 inch keyed chartplotter and fishfinder that adds Ultra High-Definition Garmin SideVu scanning sonar to the CHIRP traditional and UHD ClearVu sonar of the 75cv, giving you a sharp, photo like view to either side of your boat. The bright, sunlight readable WVGA display and built in Quickdraw Contours mapping cover navigation and custom mapping with 0.3 m (1 ft) contours.
Built in Wi-Fi connects to the ActiveCaptain app, while NMEA 2000 and NMEA 0183 let you integrate sensors, autopilot and other equipment. This unit is supplied without a transducer, so you can fit the SideVu capable transducer best suited to your boat.
PRODUCT DETAILS
- 7 inch sunlight readable WVGA display, 800 x 400 resolution
- Ultra High-Definition Garmin ClearVu and SideVu scanning sonar
- CHIRP traditional sonar for clear target separation
- Garmin Quickdraw Contours mapping creates custom maps
- Built in Wi-Fi plus NMEA 2000 and NMEA 0183 connectivity
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 15.5 x 8.7 cm (6.1 x 3.4 in.), 7 in. diagonal |
| Display resolution | WVGA, 800 x 400 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | CHIRP traditional, Ultra High-Definition Garmin ClearVu and SideVu scanning sonar |
| Sonar frequencies | Traditional 50, 77, 83, 200 kHz; CHIRP ClearVu and SideVu 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz (transducer dependent) |
Connectivity
| Networking | NMEA 2000, NMEA 0183, Wi-Fi (ActiveCaptain) |
| Wireless frequency | 2.4 GHz @ 18.5 dBm maximum |
| NMEA 2000 LEN | 1 @ 9 Vdc (75 mA max.) |
| Memory card | 1 microSD card slot; 32 GB max. card size |
Physical
| Dimensions on cradle and bail mount (W x H x D) | 25.9 x 15.4 x 6.3 cm (10.2 x 6.0 x 2.5 in.) |
| Weight | 0.77 kg (1.7 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
Electrical
| Input voltage | 9 to 18 Vdc |
| Max. power draw | 15 W |
| Fuse | 3 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
