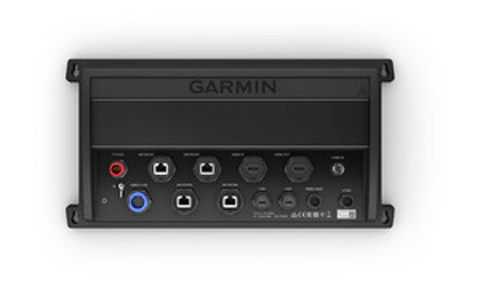

Garmin GPSMAP 8700 Black Box
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 8700 black box lets you add and integrate multiple sonar technologies, along with autopilot, connected services, apps, engine data and multimedia, at the helm. It drives external touchscreen monitors and can automatically sync your personal preferences and user data across all networked chartplotters and helms, so everything you need stays at your fingertips on any touchscreen.
NMEA 2000 networking and the Garmin Marine Network let you build a complete marine electronics suite, from radar and autopilots to cameras, instruments and forward-looking sonar, controlled from your displays and shared across multiple screens. The exclusive OneHelm system brings supported third-party onboard products, such as digital switching, lighting and stabilisation, into the same touchscreen control. The compact 1.39 kg housing carries an IPX7 water rating; an external card reader is required and not included.
PRODUCT DETAILS
- Black box marine processor that powers external Garmin touchscreen monitors at the helm
- Add and integrate multiple sonar technologies, autopilot, engine data and multimedia
- Networked control via NMEA 2000 and the Garmin Marine Network across multiple helms
- Automatically syncs personal preferences and user data across networked chartplotters
- OneHelm compatible for integrated control of supported third-party onboard systems
- Compact, lightweight 1.39 kg housing with an IPX7 water rating
- Wi-Fi and ANT connectivity (external card reader required, not included)
- GPSMAP 8700 black box
- Mounting bracket and hardware
- Power cable
- NMEA 2000 drop cable
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Black box marine processor (drives external touchscreen monitors) |
Physical
| Dimensions (W x H x D) | 383 x 198 x 47 mm |
| Clearance on front of device | 8.6 cm (3 3/8 in.) |
| Weight | 1.39 kg (3.06 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 2.54 cm (1 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 40.1 W |
| Typical current draw at 12 Vdc | 1.5 A |
| Max. current draw at 12 Vdc | 6.0 A |
| Fuse | 10 A, 42 V fast-acting |
Connectivity
| NMEA 2000 LEN @ 9 Vdc | 2 |
| NMEA 2000 draw | 75 mA max. |
| Wireless frequency and protocols | Wi-Fi and ANT technologies; 2.4 GHz @ 14.15 dBm maximum |
| HTML integration | Compatible with OneHelm integration |
| Memory card | External card reader required (not included) |
GPS/GNSS
| Max. waypoints | 5,000 |
| Max. routes | 100 (250 waypoints each) |
| Max. active track points | 50,000 points, 50 saved tracks |
Environmental
| Temperature range | -15 to 55°C (5 to 131°F) |
| Water rating | IEC 60529 IPX7 |
