Garmin BlueNet™ 20 Switch
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

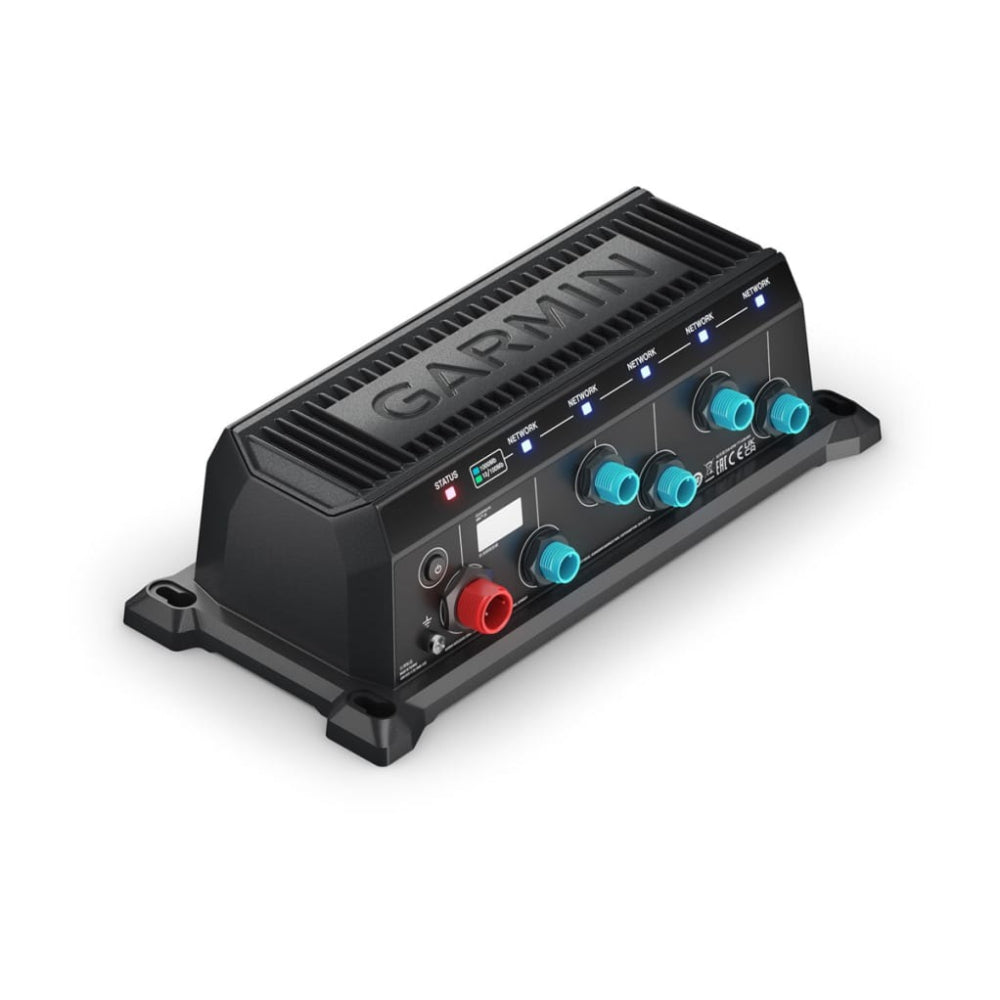

The Garmin BlueNet 20 switch is a network expander for Garmin BlueNet, the high-speed marine network that succeeds the legacy Garmin Marine Network. It adds extra ports so you can connect additional Garmin BlueNet devices, with each port able to communicate at up to gigabit (1,000 Mbps) speed. It works only with Garmin BlueNet devices; to include legacy Garmin Marine Network devices on the same network you must add a Garmin BlueNet 30 gateway.
Built for permanent installation, the switch has a polycarbonate and die-cast aluminium housing sealed to IPX7 and is powered from the boat 12 or 24 Vdc supply through the included cable. Status and per-port network LEDs make it easy to confirm operation and data activity.
PRODUCT DETAILS
- Adds network ports to a Garmin BlueNet network
- Supports data rates up to gigabit (1,000 Mbps) per port
- Compatible only with Garmin BlueNet devices
- Status and per-port network LEDs
- Polycarbonate and die-cast aluminium housing
- Waterproof to IEC 60529 IPX7
- Powered from a 10 to 32 Vdc supply via included cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Physical
| Material | Polycarbonate plastic and die-cast aluminium |
| Dimensions (W x H x D) | 293.3 x 72 x 112.6 mm (9 7/16 x 2 13/16 x 4 7/16 in.) |
| Weight | 0.5 kg (1 lb. 2 oz.) |
| Compass-safe distance | 10 cm (4 in.) |
Environmental
| Operating temperature range | -15 to 70 C (5 to 158 F) |
| Water rating | IEC 60529 IPX7 |
Electrical
| Power input | 10 to 32 Vdc |
| Fuse | 2 A |
| Max. power usage | 3.6 W |
| Typical current draw | 270 mA at 12 Vdc; 140 mA at 24 Vdc |
| Max. current draw | 330 mA |
Connectivity
| Network | Garmin BlueNet (up to 1,000 Mbps per port) |
