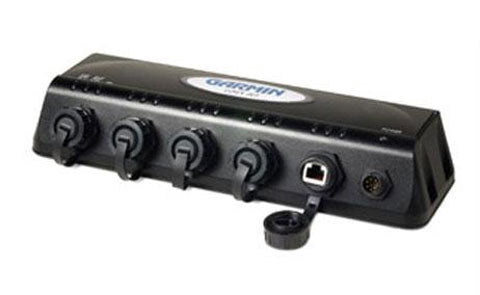

Garmin GMS 10 Ethernet Network Port Expander or Network Switch
£419.99
/
Tax included.
Shipping calculated at checkout.
010-00351-00
The Garmin GMS 10 is a Marine Network port expander that lets you connect more than two chartplotters and network devices to share data such as weather, mapping, sounder and position information.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GMS 10 Network Port Expander adds extra ports to a Garmin Marine Network, working as an Ethernet switch so you can connect more than two chartplotters and other marine network devices together. Connected devices can then share weather, mapping, sounder and position data across every display on the network. The GMS 10 also passes control signals, so sensors such as a marine weather or audio receiver power on and off automatically with the chartplotter, removing the need to switch each one individually. Network ports run at 10 or 100 Mbps and status LEDs indicate link, activity and port speed. If you need still more connections, two expanders can be linked together. The fully-gasketed high-impact plastic alloy case is rated to IPX7, and the unit accepts a wide 10 to 35 Vdc supply through a fused 7-pin power cable.
PRODUCT DETAILS
- Garmin Marine Network (Ethernet) port expander, also acting as a network switch
- Lets you connect more than two chartplotters and marine network devices to share data
- Shares weather, mapping, sounder and position data between connected devices
- Passes control signals so connected sensors power on and off with the chartplotter
- Network ports run at 10 or 100 Mbps, with status LEDs for link, activity and speed
- Two expanders can be linked together when more ports are needed
- Fully-gasketed high-impact plastic alloy case rated to IPX7
- Wide 10 to 35 Vdc power input with a 2.0 A fuse
- GMS 10 Network Port Expander
- Garmin marine network cable
- 7-pin power cable (with 2.0 A fuse)
- Grommet
- Optional mounting hardware kit (two brackets with screws and nuts)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Function | Garmin Marine Network port expander / Ethernet switch; connects more than two chartplotters and network devices to share data |
Connectivity
| Network | Garmin Marine Network (Ethernet) |
| Port Speed | 10 / 100 Mbps per network port (LED indicated) |
| Power Control | Passes control signals to switch connected sensors on and off with the chartplotter |
| Expandable | Two expanders can be connected together for additional ports |
Physical
| Dimensions (W x H x D) | 89.0 x 57.2 x 300.8 mm (3.5 x 2.3 x 11.8 in) |
| Weight | 0.54 kg (1.2 lb) |
| Case Material | Fully-gasketed high-impact plastic alloy |
Electrical
| Power Source | 10 to 35 Vdc |
| Power Usage | 2.75 W maximum |
| Fuse | AGC/3AG 2.0 A |
Environmental
| Water Rating | IEC 60529 IPX7 (submerged to 1 m for 30 min) |
| Temperature Range | -15 to 70 C (5 to 158 F) |
No videos available for this product.
What does the GMS 10 do?
It is a Garmin Marine Network port expander, or Ethernet switch, that lets you connect more than two chartplotters and other marine network devices so they can share data.
Is the GMS 10 a NMEA 2000 device?
No. The GMS 10 works on the Garmin Marine Network (Ethernet), used for sharing weather, mapping, sounder and position data between Garmin chartplotters and network devices. It is not a NMEA 2000 component.
Can I connect more than one GMS 10?
Yes. Two expanders can be linked together to provide additional ports when you add more network devices.
What power does the GMS 10 need?
It accepts a 10 to 35 Vdc supply through the included 7-pin power cable and draws up to 2.75 W. The power cable carries a 2.0 A fuse that should not be removed.
Does the GMS 10 control connected sensors?
Yes. It passes control signals, so sensors connected to it power on and off automatically when you turn the chartplotter on or off.
