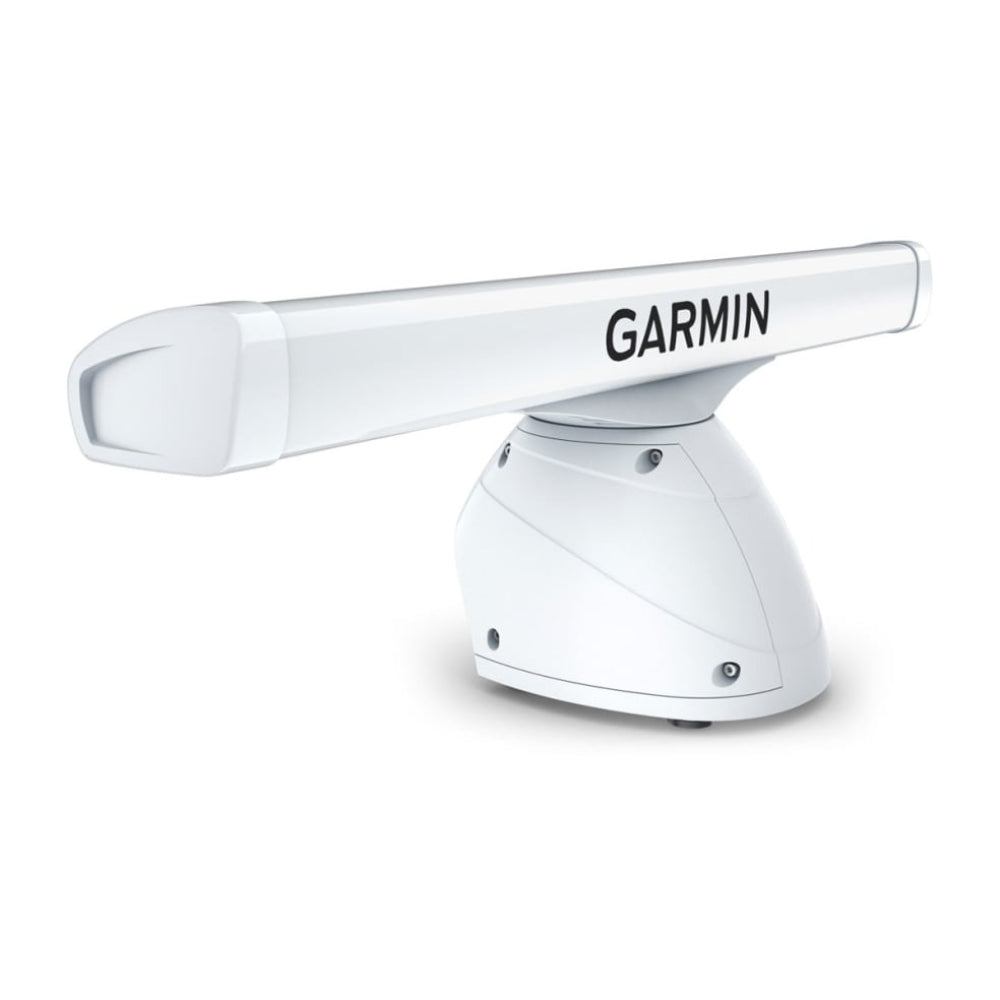

GMR™ 434 xHD3 Open Array Radar and Pedestal
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GMR 434 xHD3 pairs proven magnetron performance with 4 kW of peak transmit power and a 4 ft open-array antenna, resolving targets clearly out to a maximum range of 72 nautical miles.
The xHD3 series introduces capabilities new to Garmin magnetron radar. Scan averaging filters out sea clutter for a cleaner image, target-size processing optimises the shape of detected objects, and true echo trails display the historical trail of moving boats so you can judge their course at a glance.
The open-array form factor combines a compact pedestal with the 4 ft array and rotates at 24 or 48 RPM, with dual-range scanning, radar overlay, guard zone and automatic bird gain. Commercial-grade weather performance includes an 80 kn wind rating (up to 100 kn with the optional voltage converter), BlueNet and Marine Network control from a Garmin chartplotter, and an IPX6 water rating.
PRODUCT DETAILS
- High-definition magnetron open-array radar with 4 kW of peak transmit power
- 4 ft (1.2 m) open array with a sharp 1.8-degree horizontal beamwidth and 27 dB gain
- Up to 72 nautical mile maximum range
- Scan averaging, the first time Garmin has offered it on a magnetron radar, filters out sea clutter for a clearer picture
- Target-size processing optimises object shapes and true echo trails reveal the historical path of moving vessels
- Antenna rotation at 24 RPM and 48 RPM, plus dual-range scanning with radar overlay
- Rated to 80 kn wind load (up to 100 kn with the optional voltage converter)
- Garmin BlueNet and Garmin Marine Network connectivity with an IPX6 weather rating
- Open-array pedestal
- 4 ft open-array antenna
- Antenna mounting hardware (hex screws, washers)
- Garmin BlueNet network cable (15 m)
- Power cable with in-line 15 A fuse (15 m)
- Grounding hardware
- Mounting template
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Radar
| Transmitter Type | Magnetron (pulse) with scan averaging, target-size processing and true echo trails |
| Peak Transmit Power | 4 kW |
| Maximum Range | 72 nautical miles |
| Minimum Range | 20 m (66 ft) |
| Antenna Size | 4 ft (1.2 m) open array |
| Antenna Rotation Speed | 24 RPM and 48 RPM |
| Horizontal Beamwidth | 1.8 degrees |
| Vertical Beamwidth | 23 degrees |
| Antenna Gain | 27 dB |
| RF Transmit Frequency | 9410 MHz nominal |
| Bearing Accuracy | 0.25 degrees |
Electrical
| Input Voltage | 11 to 32 Vdc |
| Power Consumption | Standby 18 W; Transmitting 55 W |
| Fuse | 15 A blade-type (30 A blade-type when used with the voltage converter) |
Connectivity
| Networking | Garmin BlueNet and Garmin Marine Network compatible |
Physical
| Pedestal Weight | 24.1 kg (53.1 lb) |
| Antenna Weight | 5.5 kg (12.2 lb) |
| Antenna Type | End-fed slotted waveguide |
| Antenna Length | 132.7 cm (4 ft 4 1/4 in) |
| Pedestal Height to Top of Antenna | 45.1 cm (17 3/4 in) |
| Pedestal Width | 31.8 cm (12 1/2 in) |
Environmental
| Operating Temperature Range | -25 to 55 C (5 to 131 F) |
| Maximum Wind Load | 80 kn (up to 100 kn with the optional voltage converter) |
| Humidity | 95% at 35 C (95 F) |
| Water Rating | IEC 60529 IPX6 (protected against powerful jets of water) |
| Compass-Safe Distance | Standard compass 90 cm (35 7/16 in); standby steering and emergency compasses 80 cm (31 1/2 in) |
| Minimum Safe Operating Distance | 100 W/m2 = 0.09 m; 50 W/m2 = 0.13 m; 10 W/m2 = 0.28 m |
