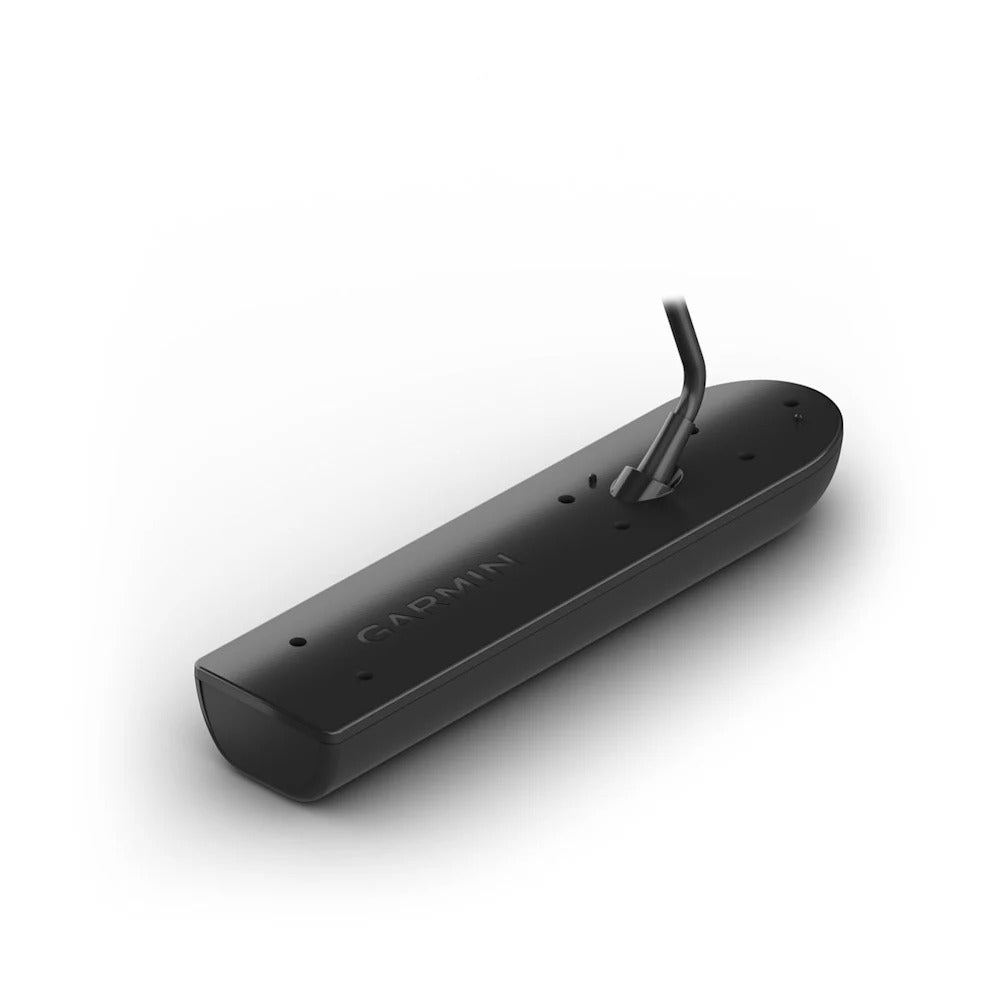

Garmin GT56UHD-TR, Compatible with 48" Models
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT56UHD-TR is the trolling-motor version of Garmin's flagship GT56 transducer, supplied with 48-inch shaft Force and Force Kraken trolling motors. Housed in the lower unit of the motor, it combines high-wide CHIRP traditional sonar with Garmin ClearVu and SideVu scanning sonar to give a complete picture of fish and structure around the boat.
Three scanning frequencies let you prioritise resolution or range: Ultra High-Definition 1 MHz for the sharpest shallow-water detail, 800 kHz for a balance of clarity and depth, and 455 kHz CHIRP to extend SideVu coverage to 152 m (500 ft.) per side. Traditional sonar reaches 244 m (800 ft.). With the transducer integrated into the motor, anglers gain forward-facing imaging that follows the trolling motor as it steers.
PRODUCT DETAILS
- Ultra High-Definition transducer built into 48-inch Garmin Force and Force Kraken trolling motors
- Garmin ClearVu and SideVu scanning sonar plus high-wide CHIRP traditional sonar
- Three scanning frequencies (455 kHz, 800 kHz and 1 MHz) for resolution or range
- High-wide CHIRP traditional sonar to 244 m (800 ft.)
- SideVu coverage up to 152 m (500 ft.) each side at 455 kHz
- Transmit power of 350 W traditional and 500 W ClearVu/SideVu (RMS)
- 12-pin connector with a 7.6 m (25 ft.) cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Transducer type | Garmin Force trolling-motor transducer (TR) providing Ultra High-Definition ClearVu, SideVu and high-wide CHIRP traditional sonar; the version supplied with 48-inch shaft Garmin Force trolling motors |
Sonar
| Sonar technologies | Traditional CHIRP (High-Wide), Garmin ClearVu and Garmin SideVu, including Ultra High-Definition (UHD) scanning |
| Traditional frequency | CHIRP High-Wide 140 to 240 kHz |
| ClearVu / SideVu frequencies | CHIRP 455 kHz (420 to 490 kHz); UHD CHIRP 800 kHz (770 to 840 kHz); UHD CHIRP 1 MHz (1000 to 1120 kHz) |
| Transmit power (RMS) | Traditional: 350 W; Garmin ClearVu: 500 W; Garmin SideVu: 500 W |
| Maximum depth (traditional) | 244 m (800 ft.) |
| Maximum range (ClearVu) | 122 m (400 ft.) at 455 kHz; 61 m (200 ft.) at 1 MHz |
| Maximum range (SideVu) | At 455 kHz: 152 m (500 ft.) each side, 305 m (1,000 ft.) total; at 1 MHz: 61 m (200 ft.) each side, 122 m (400 ft.) total |
Mounting
| Mount type | Integrated into the lower unit of a Garmin Force trolling motor (trolling-motor mount) |
Physical
| Dimensions (L x W x H) | 218.5 x 51.8 x 27.7 mm (8.61 x 2.04 x 1.09 in.) |
| Operating temperature range | 0 to 50°C (32 to 122°F) |
| Storage temperature range | -40 to 70°C (-40 to 158°F) |
| Water rating | IPX7 (withstands incidental exposure to water of up to 1 m for up to 30 minutes) |
Connectivity
| Connector | 12-pin Garmin transducer connector |
| Cable length | 7.6 m (25 ft.) |
Compatibility
| Intended use | Replacement / built-in transducer for Garmin Force and Force Kraken trolling motors with a 48-inch shaft; connects to a compatible Garmin chartplotter as the trolling motor sonar source |
