Garmin B75M CHIRP 20 Degree Tilt Depth and Temperature Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

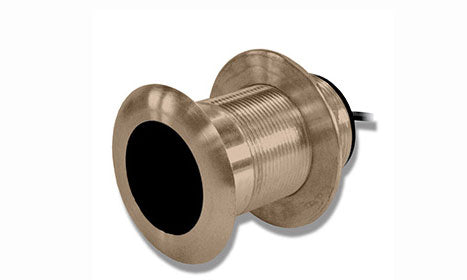

The Garmin B75M is a bronze thru-hull transducer that brings medium-frequency CHIRP performance to a compatible Garmin sonar system. The flush-mounted housing protrudes less than a quarter of an inch outside the hull and can sit on trailer rollers or bunks without damage, while the tilted element inside aims the sound beam vertically and removes the need for a fairing block. Built-in depth and water-temperature sensing comes as standard.
This 20° tilt model is matched to hull deadrise angles of 16-24° and gives a versatile balance of target separation and depth penetration. An excellent choice for fibreglass and wood hulls, it connects to CHIRP-capable Garmin chartplotters, combos and sonar modules. The transducer is supplied with installation instructions, which should be followed carefully to avoid damaging your boat.
PRODUCT DETAILS
- Medium CHIRP bronze thru-hull transducer operating at 80-130 kHz
- 600 W (RMS) transmit power for a versatile balance of target separation and depth penetration
- Beamwidth of 24° / 16° (-3 dB)
- Maximum depth of 1100 ft (335 m)
- 20 degree tilted element matched to 16-24° hull deadrise; no fairing block required
- Built-in water-temperature sensor
- 8-pin Garmin connector with a 39 ft (11.9 m) cable
- Compatible with CHIRP-capable Garmin systems including the GSD 26 module
- Garmin B75M bronze thru-hull transducer (20 degree tilt)
- Anti-rotation hardware / mounting bolts
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Sonar
| Sonar Type | Medium CHIRP |
| Operating Frequency | 80-130 kHz |
| CHIRP Bandwidth | 80-130 kHz (Medium band) |
| Transmit Power | 600 W (RMS) |
| Maximum Depth | 1100 ft (335 m) |
Beam
| Beamwidth (-3 dB) | 24° / 16° (-3 dB) |
Mounting
| Mounting Style | Bronze thru-hull, flush-mounted |
| Element Tilt | 20 degree tilted element |
| Supported Deadrise | 16-24° |
Physical
| Housing Material | Bronze |
| Built-in Temperature Sensor | Yes |
Connectivity
| Connector | 8-pin Garmin |
| Cable Length | 39 ft (11.9 m) |
| Data Provided | Depth and temperature |
Compatibility
| Compatible Systems | Compatible with Garmin GSD 26 CHIRP professional sonar module; also compatible with GPSMAP 7600xsv series (with GSD 25), GPSMAP 5x7/7x1/8x0/10x0 xs series, ECHOMAP CHIRP DV/SV series and STRIKER DV/SV series (adapter cable may be required). Requires a CHIRP-capable Garmin chartplotter, combo or sonar module. |
General
| Series | B75 Series |
| Brand | Garmin (Airmar) |
