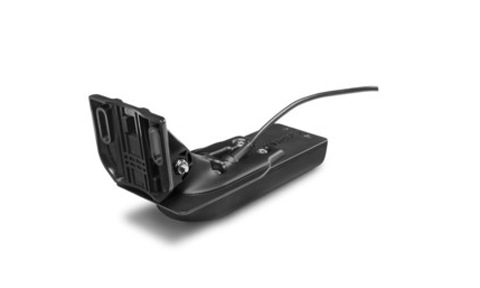

Garmin GT24UHD-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT24UHD-TM packs Ultra High-Definition ClearVu scanning sonar and high-wide CHIRP traditional sonar into a single compact transom-mount transducer. Traditional CHIRP produces large, clear fish arches and reliable bottom tracking, while UHD ClearVu at 800 kHz renders near-photographic detail of structure directly below the boat.
Designed for inshore and freshwater anglers, the GT24UHD-TM reaches 244 m (800 ft.) on traditional sonar and 61 m (200 ft.) on ClearVu, running 350 W on each. It mounts on a transom or trolling motor, carries a fast-response temperature sensor, and connects to compatible Garmin ECHOMAP and GPSMAP chartplotters via an 8-pin connector. It is the transducer bundled with the ECHOMAP UHD 72cv.
PRODUCT DETAILS
- All-in-one transom-mount transducer with Ultra High-Definition ClearVu and high-wide CHIRP traditional sonar
- UHD ClearVu scanning at 800 kHz for detailed structure imaging
- High-wide CHIRP traditional sonar (150 to 240 kHz) to 244 m (800 ft.)
- ClearVu range to 61 m (200 ft.)
- Transmit power of 350 W traditional and 350 W ClearVu (RMS)
- Built-in fast-response water temperature sensor
- 8-pin connector with a 6 m (20 ft.) cable
- Mounts on a transom or trolling motor
- GT24UHD-TM transom-mount transducer with 6 m (20 ft.) cable
- Transom mounting bracket and hardware
- Cable-entry cover and fixings
- Trolling-motor mounting hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Transducer type | All-in-one transom-mount transducer providing Ultra High-Definition ClearVu scanning sonar and high-wide CHIRP traditional sonar in a single compact housing |
Sonar
| Sonar technologies | Traditional CHIRP (High-Wide) and Garmin ClearVu, including Ultra High-Definition (UHD) scanning. SideVu is not supported |
| Traditional frequency | CHIRP High-Wide 150 to 240 kHz |
| ClearVu frequency | UHD ClearVu CHIRP 800 kHz (760 to 880 kHz) |
| Transmit power (RMS) | Traditional CHIRP: 350 W; Garmin ClearVu: 350 W |
| Maximum depth (traditional) | 244 m (800 ft.) |
| Maximum range (ClearVu) | 61 m (200 ft.) |
Beam
| Beam width (traditional) | 24/16 degrees (low/high frequency, -3 dB) |
| Beam width (ClearVu) | 0.94 x 60 degrees at 800 kHz |
Mounting
| Mount type | Transom mount; can also be mounted on a trolling motor |
| Supported transom angles | 0 to 70 degrees |
| Built-in temperature sensor | Yes, with depth, speed and temperature support (D, T) |
Connectivity
| Connector | 8-pin Garmin transducer connector |
| Cable length | 6 m (20 ft.) |
Compatibility
| Compatible chartplotters and sounders | STRIKER Vivid/Plus (CV and SV series), ECHOMAP UHD2 (CV and SV series), ECHOMAP Ultra 2, GPSMAP 8600xsv, GPSMAP 9000 (9000xsv), GCV 20 black box and GSD 25 sounder module, and the GPSMAP 7x3/9x3/12x3/16x3xsv series. Some pairings require a Garmin adapter cable (sold separately) |
| Factory bundles | Supplied as the included transducer with the ECHOMAP UHD 72cv bundle |
