Garmin GPS 24XD Dual Frequency Antenna
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPS 24xd is a high-sensitivity GPS antenna and receiver that delivers precise position and heading information to a compatible chartplotter over the NMEA 2000 network. Its multi-band GNSS receiver draws on GPS, GLONASS, Galileo and BeiDou to fix your position to within 1 metre, while a fast 10 Hz update rate keeps track plots and velocity readings smooth and detailed.
An integrated magnetic heading sensor adds heading accuracy to within 3 degrees, stabilising charts, radar overlay and MARPA even at slow speed. Connection is plug-and-play using the supplied NMEA 2000 T-connector and 6 m drop cable, and the antenna presents a low load of just LEN 3. The fully gasketed plastic-alloy housing is rated to IPX6 and IPX7, mounts on a surface, a pole or under a fibreglass deck, and runs on 9 to 32 Vdc.
PRODUCT DETAILS
- Multi-band GNSS (GPS, GLONASS, Galileo and BeiDou) fixes your position to within 1 metre
- Fast 10 Hz position update rate for smooth, detailed tracking
- Integrated magnetic heading sensor accurate to within 3 degrees stabilises charts, radar overlay and MARPA at slow speeds
- Plug-and-play NMEA 2000 connection with included T-connector and 6 m drop cable
- Low NMEA 2000 load of LEN 3 (150 mA draw)
- Surface, pole and under-deck mounting options with included brackets
- Fully gasketed plastic-alloy housing rated to IPX6 and IPX7
- Wide 9 to 32 Vdc input range

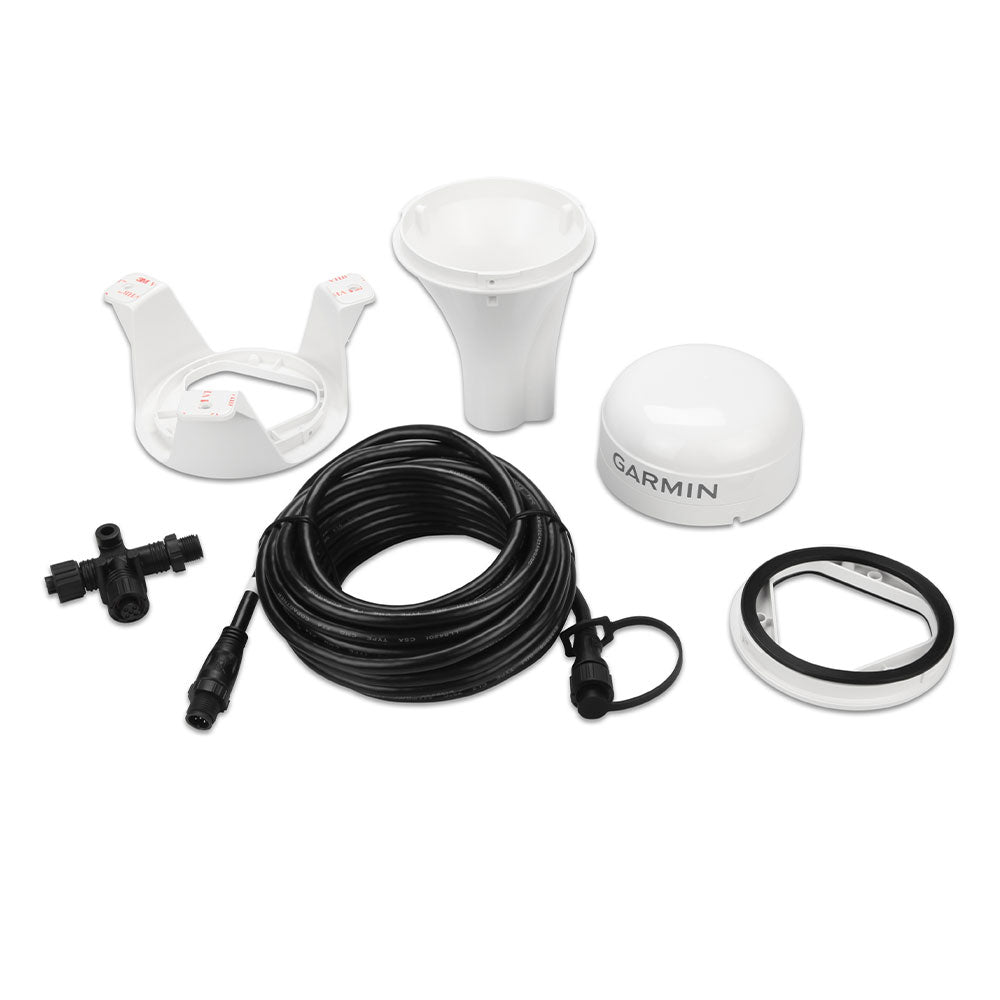

- GPS 24xd antenna (NMEA 2000) with attached cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable, 6 m (20 ft.)
- Surface-mount bracket
- Pole-mount adapter
- Under-deck mounting bracket (white model)
- Mounting hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
GNSS
| Satellite systems | GPS, GLONASS, Galileo and BeiDou (multi-band GNSS) |
| Position accuracy | To within 1 metre |
| Update rate | 10 Hz |
Heading
| Magnetic heading accuracy | Within 3 degrees |
Connectivity
| Interface | NMEA 2000 |
| NMEA 2000 LEN | 3 (at 9 Vdc) |
| NMEA 2000 current draw | 150 mA |
Electrical
| Input voltage | 9 to 32 Vdc |
| Maximum input current | 200 mA at 12 Vdc |
| Typical input current | 150 mA at 12 Vdc |
Physical
| Dimensions (diameter x height) | 91.6 x 49.5 mm (3 19/32 x 1 15/16 in.) |
| Weight | 201 g (7.1 oz.) |
| NMEA 2000 drop cable length | 6 m (19 ft. 8 in.) |
| Case material | Fully gasketed, high-impact plastic alloy |
| Compass-safe distance | 12.7 mm (0.5 in.) |
| Mounting options | Surface, pole (1 in. OD, 14 tpi) or under-deck (white model) |
Environmental
| Water rating | IEC 60529 IPX6 and IPX7 |
| Operating temperature range | White model: -30 to 80C (-22 to 176F); Black model: -30 to 65C (-22 to 149F) |
General
| Warranty | 2 years |
