Garmin GPS19x HVS 10Hz 32 Channel GPS Antenna with NMEA0183 Output
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPS 19x HVS is a high-sensitivity GPS antenna that supplies position data over NMEA 0183 to a Garmin chartplotter or any other NMEA 0183 compliant device. Its WAAS-enabled receiver tracks GPS and GLONASS satellites simultaneously, often using more than twenty at once, and with WAAS, EGNOS or MSAS corrections it fixes your position to within 3 metres. A fast 10 Hz update rate keeps track plots and velocity readings smooth and detailed.
A single antenna can feed up to three NMEA 0183 devices, and the output rate can be limited to 1 Hz with the included resistor cable for use with older displays. Housed in a fully gasketed plastic-alloy case rated to IPX7, the GPS 19x HVS mounts on a surface, a pole or under a fibreglass deck, and runs on 8 to 33 Vdc while drawing just 40 mA.
PRODUCT DETAILS
- High-sensitivity GPS and GLONASS receiver tracks over 20 satellites for reliable positioning
- WAAS, EGNOS and MSAS support delivers accuracy to within 3 metres
- Fast 10 Hz position update rate for smooth, detailed track data
- NMEA 0183 output feeds up to three compliant devices from a single antenna
- Update rate selectable down to 1 Hz for compatibility with older displays
- Surface, pole and under-deck mounting options with included brackets
- Fully gasketed plastic-alloy housing rated to IPX7
- Wide 8 to 33 Vdc input with low 40 mA current draw

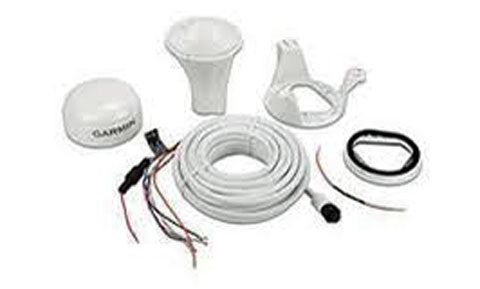

- GPS 19x HVS (NMEA 0183) antenna with attached 9.14 m (30 ft.) cable
- Surface-mount bracket
- Pole-mount adapter
- Under-deck mounting bracket
- Mounting hardware
- Update Rate Select resistor cable
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
GNSS
| Satellite systems | GPS and GLONASS (simultaneous, often more than 20 satellites) |
| Satellite-based augmentation | WAAS, EGNOS and MSAS |
| Receiver sensitivity | -185 dBW minimum |
| Position accuracy (GPS SPS) | Less than 15 metres, 95% typical |
| Position accuracy (WAAS/EGNOS/MSAS) | Less than 3 metres, 95% typical |
| Velocity accuracy | 0.1 knot RMS steady state |
| Update rate | 1, 5 or 10 Hz (selectable) |
| Acquisition time | Hot approx. 1 s; warm approx. 38 s; cold approx. 45 s; reacquisition less than 2 s |
Connectivity
| Interface | NMEA 0183 (Differential, compatible polarity), version 3.01 |
| Default transmission rate | 38400 baud (limitable to 4800 baud with included resistor) |
| Default position output rate | 10 Hz (limitable to 1 Hz with included resistor) |
| Connected devices | Up to three NMEA 0183 compliant devices from one antenna |
Electrical
| Power input source | 8 to 33 Vdc, unregulated |
| Input current | 40 mA at 12 Vdc |
Physical
| Dimensions (diameter x height) | 91.6 x 49.5 mm (3 19/32 x 1 15/16 in.) |
| Weight | 201 g (7.1 oz.) |
| Cable length | 9.14 m (30 ft.) |
| Case material | Fully gasketed, high-impact plastic alloy |
| Compass-safe distance | 150 mm (5.9 in.) |
| Mounting options | Surface, pole (1 in. OD, 14 tpi) or under-deck (fibreglass) |
Environmental
| Water rating | IEC 60529 IPX7 |
| Operating temperature range | -30 to 80C (-22 to 176F) |
| Storage temperature range | -40 to 90C (-40 to 194F) |
General
| Warranty | 2 years |
