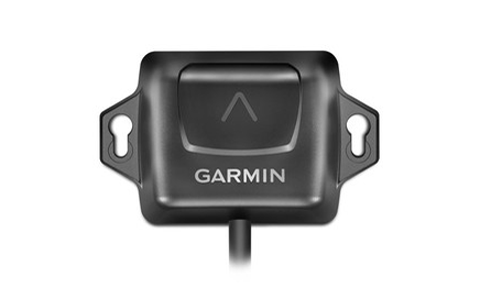

Garmin Steady Cast Heading Sensor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin SteadyCast heading sensor supplies reliable heading information to your Garmin marine electronics over the NMEA 2000 network. By providing a steady heading reference, it stabilises the chart, radar overlay and MARPA targets on a compatible chartplotter, helping everything stay correctly oriented as you manoeuvre.
Installation is straightforward. The sensor connects plug-and-play to an existing NMEA 2000 network and is set up with a simple two-step precision calibration on a compatible Garmin chartplotter. Its solid-state design means it can be mounted in any orientation, and the cable can be routed through the side of the housing or down through the mounting surface to suit the installation. The compact, fully gasketed housing is rated to IPX7 and presents a low network load of just LEN 2.
PRODUCT DETAILS
- Adds reliable NMEA 2000 heading data to your Garmin marine system
- Plug-and-play NMEA 2000 connection with a simple two-step precision calibration
- Mounts in any orientation thanks to its solid-state design
- Flexible cable routing through the side of the housing or through the mounting surface
- Compact, fully gasketed housing rated to IPX7
- Low NMEA 2000 load of LEN 2 (100 mA draw)
- Stabilises chart heading, radar overlay and MARPA on compatible chartplotters
- SteadyCast heading sensor with integrated NMEA 2000 drop cable
- NMEA 2000 T-connector
- Mounting screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Heading
| Sensor type | Electronic heading sensor for an existing NMEA 2000 network |
| Mounting orientation | Can be mounted in any orientation; not required to be in the same horizontal plane as the boat |
| Calibration | Two-step menu-based or basic calibration via compatible Garmin chartplotter |
Connectivity
| Interface | NMEA 2000 (plug-and-play, integrated drop cable) |
| NMEA 2000 LEN | 2 (100 mA) |
Electrical
| NMEA 2000 input voltage | 9 to 32 Vdc |
Physical
| Dimensions (length x width x height) | 87.35 x 53.84 x 34.29 mm (3.4 x 2.1 x 1.4 in.) |
| Weight | 182 g (6.4 oz.) |
| Case material | Fully gasketed, high-impact plastic |
| Compass-safe distance | 5 cm (2 in.) |
| Cable routing | Through the side of the housing or through the mounting surface |
Environmental
| Water resistance | IEC 60529 IPX7 |
| Operating temperature range | -15 to 70C (5 to 158F) |
General
| Warranty | 2 years |
