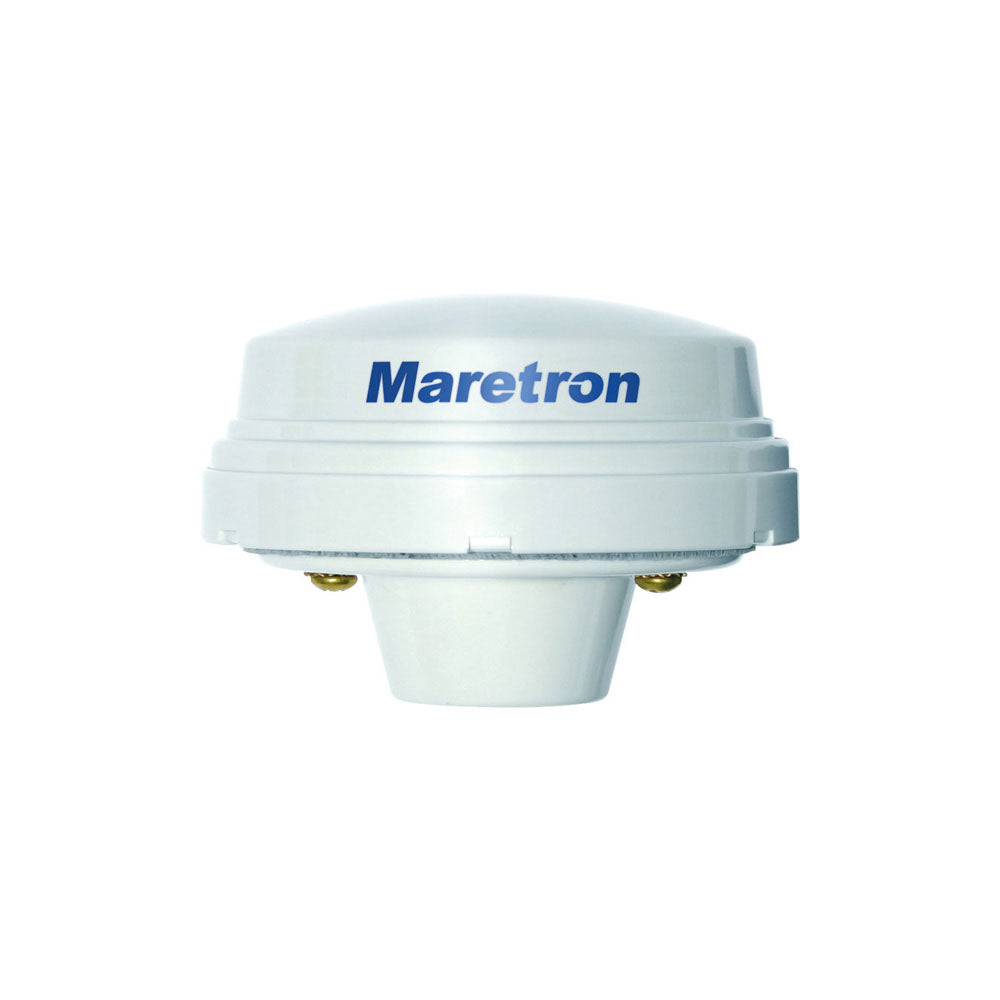

Maretron GPS Antenna Receiver
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron GPS200 is a state-of-the-art second-generation GPS/GLONASS antenna and receiver capable of producing ten position fixes per second. It has unprecedented sensitivity and can even be mounted underneath a fibreglass deck, and it broadcasts precision magnetic variation derived from the current position and the world magnetic model (WMM2020) so instruments show accurate magnetic headings.
Fully compliant and certified to the NMEA 2000 standard, the GPS200 is a plug-and-play device that connects directly to the network and feeds position, speed and time to navigation software, chartplotters, autopilots and dedicated displays such as Maretron DSM Series units or N2KView. Its compact, waterproof housing provides years of reliable service. The receiver automatically decodes SBAS corrections including WAAS, EGNOS and MSAS for better than 2.5 metre accuracy.
Mounting is straightforward, either directly to a deck or onto a standard 1 inch to 14 TPI marine mount, making the GPS200 an easy, high-performance position source for any NMEA 2000 system.
PRODUCT DETAILS
- Second-generation 99-channel GPS/GLONASS antenna and receiver
- Ten position fixes per second for rapid, precise updates
- Better than 2.5m accuracy with WAAS, EGNOS and MSAS SBAS corrections
- Exceptional sensitivity, can be mounted beneath a fibreglass deck
- Broadcasts precision magnetic variation using WMM2020
- Plug-and-play NMEA 2000 certified, connects directly to the network
- Compact waterproof housing, deck or 1"-14 TPI pole mounting
- GPS200-01 GPS Antenna/Receiver
- Mounting hardware
- User's manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Supported Positioning Systems | GPS and GLONASS simultaneously |
| Position Accuracy (Autonomous) | <3m 2D RMS |
| Position Accuracy (WAAS) | <2.5m 2D RMS |
| Channels | 99 (33 tracking, 99 acquisition) |
| Tracking Sensitivity | -161 dBm |
| Position Update Rate | 10 per second |
| SBAS Support | WAAS, EGNOS, MSAS, GAGAN |
| Hot Start | 1 second |
| Cold Start | 33 seconds |
Electrical
| Operating Voltage | 9 to 32 Volts DC |
| Power Consumption | <150mA average current drain |
| Load Equivalence Number (LEN) | 3 |
Mechanical
| Size | 4" diameter x 1.65" tall (not including antenna mount base) |
| Weight | 6 oz (not including antenna mount base) |
| Mounting | Deck or pole, fits 1"-14 TPI standard marine mount |
Environmental
| Degree of Protection | IP67 |
| Operating Temperature | -25°C to 55°C |
NMEA 2000
| Certification Level | Level A |
Certifications
| Standards | NMEA 2000 Level A, tested to IEC 60945, FCC and CE Mark |
