Navico
GS25 GPS Antenna
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

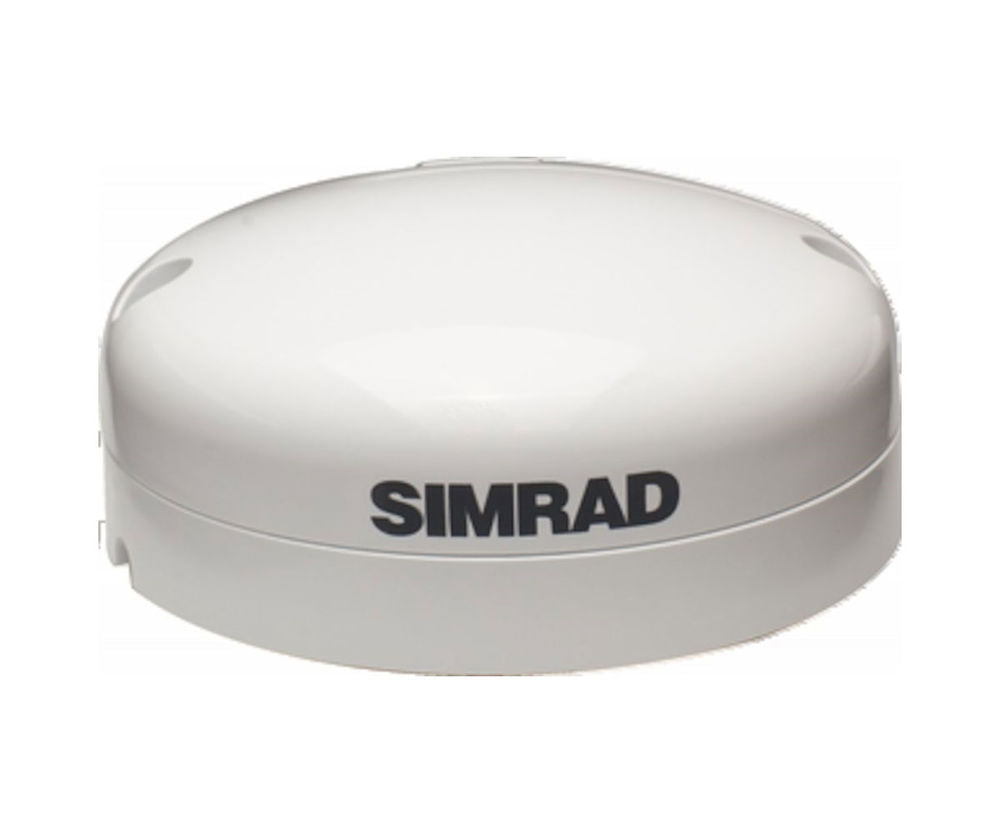

The Simrad GS25 is a compact, fully waterproof GPS antenna that delivers fast, accurate positioning to compatible Simrad, Lowrance and B&G multifunction displays over NMEA 2000. Tracking GPS and GLONASS across 72 channels with SBAS support, it refreshes your position ten times per second for smooth chart movement, precise course-over-ground at low speed and reliable plotter trails.
An electronic rate compass is built in, providing a heading reference for radar overlay and chart stabilisation without a separate sensor. The sealed housing suits pole or surface mounting anywhere on the vessel, and a single NMEA 2000 drop cable handles both data and power for a clean, simple install.
PRODUCT DETAILS
- 10 Hz position update for smooth, responsive chart plotting
- 72-channel GPS and GLONASS receiver with SBAS (WAAS, EGNOS, MSAS) support
- Integrated electronic rate compass for heading and radar overlay
- Single NMEA 2000 connection carries data and power
- Fully waterproof housing for pole or surface mounting
- Compatible with Simrad NSO, NSS, NSE and GO series displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Physical
| Mounting | Pole or surface |
Connectivity
| Network | NMEA 2000 (Micro-C) |
Performance
| Satellite systems | GPS, GLONASS, SBAS (WAAS, EGNOS, MSAS) |
| Channels | 72 |
| Position update rate | 10 Hz |
| Integrated compass | Electronic rate compass (heading) |
Electrical
| Supply voltage | 10 to 35 V DC (unregulated) |
No videos available for this product.
