Garmin
GPSMAP® 86s
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

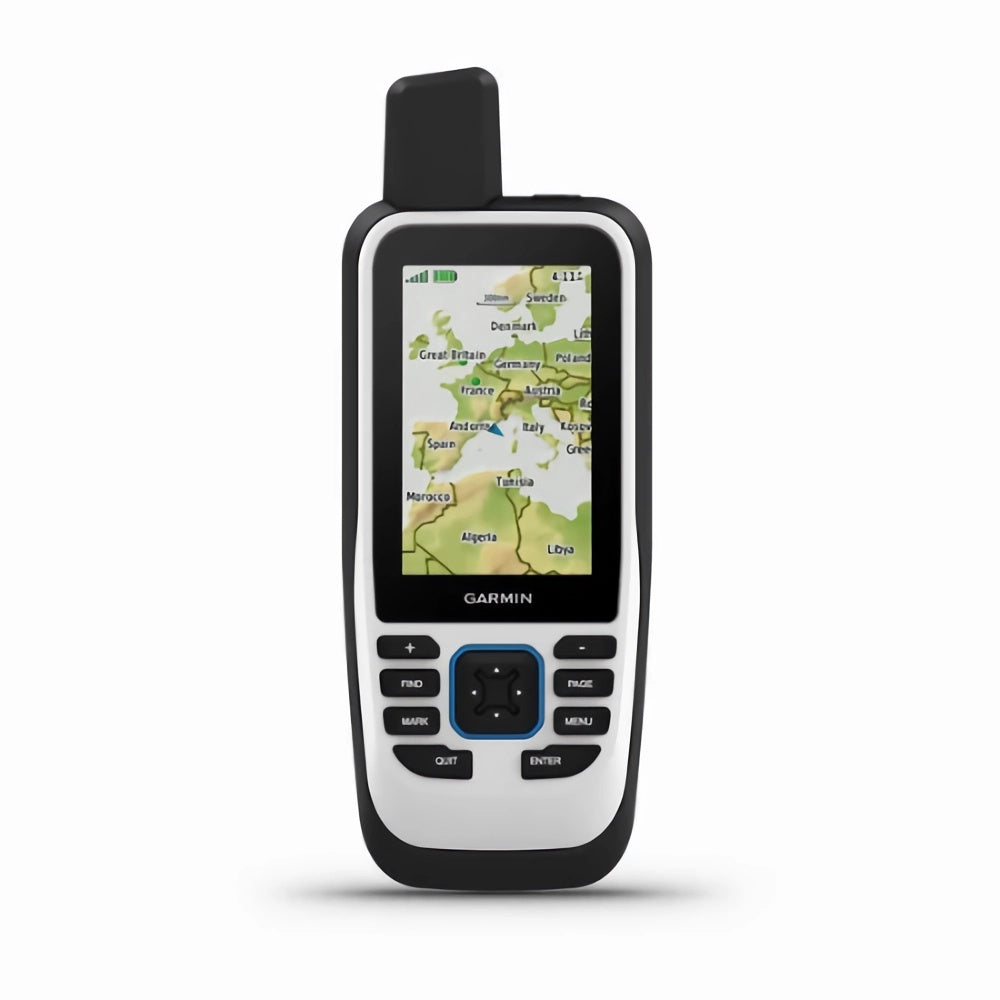

The Garmin GPSMAP 86s is a floating marine handheld that keeps essential boat data in the palm of your hand. Over ANT and Wi-Fi it streams readings such as depth, speed and wind from compatible Garmin chartplotters, so you can check conditions from the foredeck, the cockpit or the dinghy. The sunlight-readable 3-inch colour display, 3-axis compass and barometric altimeter make it a capable navigator in its own right.
An internal rechargeable battery delivers up to 40 hours of use, extending to 200 hours in expedition mode, and the unit is IPX7 waterproof and buoyant. A preloaded worldwide basemap, ActiveCaptain and BlueChart g3 compatibility and smart notifications round out a handheld that complements any Garmin marine system; the 86sc version adds preloaded BlueChart g3 coastal charts.
PRODUCT DETAILS
- Floating 3-inch marine handheld with worldwide basemap
- Streams depth, speed, wind and other data from compatible Garmin chartplotters
- Internal rechargeable battery lasting up to 40 hours (200 hours in expedition mode)
- ANT+, Bluetooth and Wi-Fi connectivity with smart notifications
- 3-axis compass and barometric altimeter; IPX7 waterproof
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 3 in (7.6 cm) diagonal |
| Display resolution | 240 x 400 pixels |
| Display type | Transflective 65-K colour TFT |
Power
| Battery type | Internal rechargeable lithium-ion |
| Battery life | Up to 40 hours (up to 200 hours in expedition mode) |
Physical
| Dimensions (W x H x D) | 70 x 178 x 44 mm |
| Weight | 272 g |
Environmental
| Water rating | IEC 60529 IPX7 |
| Operating temperature | -20 to 60 C |
| Charging temperature | 0 to 40 C |
| Compass-safe distance | 17.5 cm |
Navigation
| GNSS | GPS, GLONASS, GALILEO |
| Sensors | 3-axis compass, barometric altimeter |
Memory & Maps
| Preloaded maps | Worldwide basemap; BlueChart g3 / ActiveCaptain compatible |
| Card slot | microSD card |
Connectivity
| Wireless | ANT+, Bluetooth, Wi-Fi (2.4 GHz) |
| Boat data | Streams data from compatible Garmin chartplotters |
