Icom

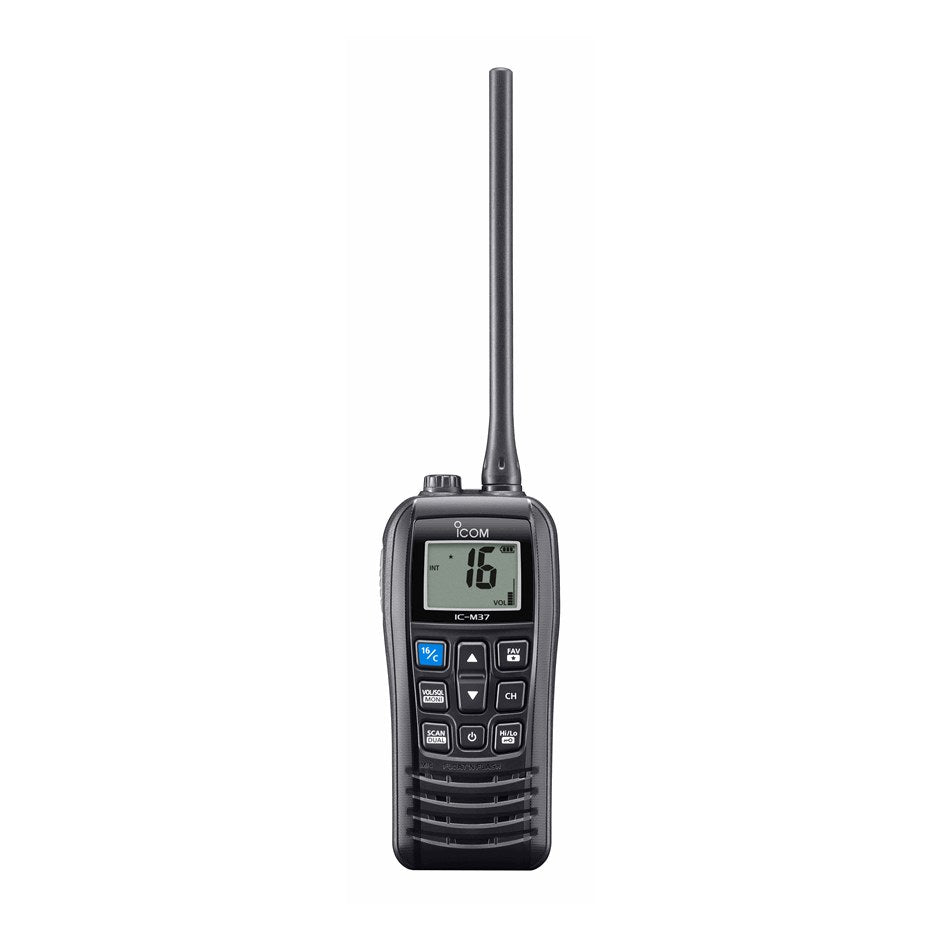

Icom IC-M37E
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The IC-M37E is a high-power, buoyant marine VHF handheld radio that delivers 6 watts of transmit power for reliable, extended-range communication. Its straightforward, rugged design is comfortable to hold, simple to operate and easy to read, making it equally at home with leisure boaters, clubs and commercial users.
Large keys and an easy-grip body are paired with a big LCD that clearly shows channel numbers and status icons, while a powerful 700mW audio output keeps communication clear in noisy conditions. Built to IP57 dust and waterproof protection, the radio floats if dropped overboard and is easy to locate thanks to its flashing red LED and backlit display, and the AquaQuake function clears water from the speaker grille. A Channel History function recalls the last five channels used at the touch of a button. The supplied lithium-ion battery gives more than 12 hours of operation, and a versatile drop-in charger can be powered from mains or 12V on board. A BP-297 battery case is supplied as standard for back-up AAA power.
PRODUCT DETAILS
- 6 W RF output power for extended-range communication
- 700 mW audio output for clear communication
- Large keys and easy-to-grip design
- More than 12 hours operation with BP-296 li-ion battery
- Buoyant with flashing red LED
- IP57 dust and waterproof protection (1 m for 30 minutes)
- Channel History stores the last five channels used
- AquaQuake water-draining function
- Flexible charging, including from USB
- BP-297 AAA battery case supplied as standard
- BP-296 battery pack
- BP-297 battery case (AAA)
- BC-235 desktop charger
- BC-217SE AC adapter (may differ or not supplied depending on version)
- FA-SC59V antenna
- MB-133 belt clip
- Hand strap
No exploded diagram available for this product.
No compatible transducers listed for this product.
Icom ProEquip PRO-P245-35WP Earpiece/Lapel-mic
Icom OPC-478UC USB Programming Cable/B Version Compatible up to & including Windows 11
Icom BC-USB.001 USB Charger
Icom HM-165 Speaker Microphone
Icom FA-SC59V Antenna
Icom BC-238 Rapid Multi-Charger
Icom BC-235 Single Fast Charger
Icom BCUSB UK 3pin USB Supply 5v 1A
Icom BP-296 Battery
Icom MB-133 Belt Clip
Icom HM-228 Speaker Microphone
Icom CIGAR.005 Cigar Charger Adapter 5V/1A
Icom BP-297 Battery Case
Icom OPC-1655 Cable adapter
No compatible products found.
General
| Frequency range (TX) | 156.000 to 161.450 MHz |
| Frequency range (RX) | 156.000 to 163.425 MHz |
| Usable channel groups | INT, ATIS, USA (available depending on version) |
| Type of emission | 16K0G3E |
| Current drain (TX 6.0 W / 1.0 W) | 2.75 A / 1.0 A |
| Current drain (RX max audio, int/ext SP) | 0.4 A / 0.2 A |
| Operating temperature range | -15°C to +55°C |
| Antenna impedance | 50 Ω |
| Dimensions (W x H x D) | 59.7 x 140.5 x 38.7 mm (projections not included) |
| Weight | 293 g (with BP-296, antenna and belt clip) |
Transmitter
| Output power (High/Low) | 6 W / 1 W |
| Max frequency deviation | ±5 kHz |
| Frequency stability | ±1.5 kHz |
| Spurious emissions | 0.25 μW |
Receiver
| Sensitivity (at 20 dB SINAD) | -4 dBμ emf typical |
| Squelch sensitivity (threshold) | -5 dBμ emf typical |
| Adjacent channel selectivity | 70 dB |
| Spurious response | 70 dB |
| Intermodulation | 68 dB |
| Hum and noise | 40 dB |
| Audio output power (internal SP) | 700 mW typical (8 Ω load) |
| Audio output power (external SP) | 200 mW (4 Ω load) |
Environmental
| Waterproof rating | IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes) |
| Military specification | Meets MIL-STD-810 G (also equivalent -C, -D, -E and -F) |
