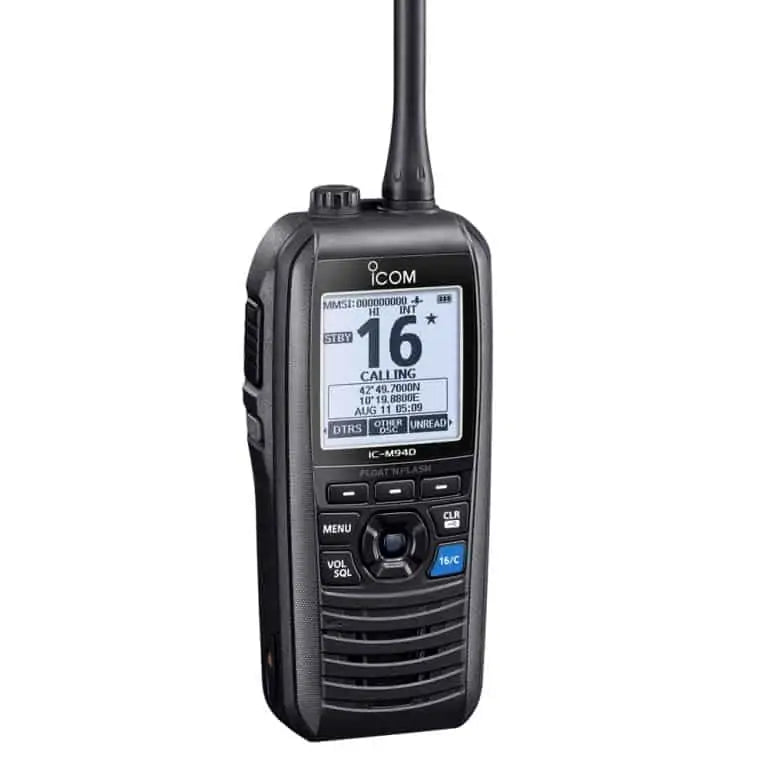

Icom IC-M94DE VHF Marine Transceiver with DSC & AIS Receiver
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The IC-M94DE brings the safety features of a fixed VHF set to a handheld, and is the world's first marine VHF handportable with a built-in AIS receiver alongside DSC and an integrated GPS. The AIS receiver displays the traffic information broadcast by other AIS-equipped vessels on the radio's large, clear screen, and an AIS target call function lets you quickly set up a DSC individual call, while distress calls can be sent at any time from the rear-panel button.
A 6 watt transmit output provides extended range, and the supplied high-capacity BP-306 lithium-ion battery gives around 10 hours of operation. Icom's custom speaker delivers a class-leading 1500mW audio output for outstanding clarity in noisy maritime conditions, supported by active noise cancelling technology. A simplified Navigation function guides you to any of up to 50 stored waypoints, and Float'n Flash construction means the radio floats and flashes its display, keys and distress button if dropped overboard, automatically transmitting an MOB distress signal when the button is pressed. Built to IPX7, it also offers Dual and Tri-Watch, four-digit channel support and AquaQuake draining.
PRODUCT DETAILS
- World's first marine handheld with built-in AIS receiver
- Class-H DSC and integrated GPS receiver
- 6 W RF output power for extended range
- Class-leading 1500 mW audio output
- Active noise cancelling technology
- Simplified Navigation function (up to 50 waypoints)
- Float'n Flash and MOB Auto Set functions
- Around 10 hours operation with supplied BP-306 battery
- IPX7 submersible construction (1 m for 30 minutes)
- AquaQuake water-draining function and 4-digit channel support
- BP-306 battery pack
- BC-251 battery charger
- AC adapter (may differ depending on version)
- Antenna
- MB-133 belt clip
- Hand strap
No exploded diagram available for this product.
No compatible transducers listed for this product.

Icom MB-96FL Leather Belt Hanger

Icom ProEquip PRO-P245-35WP Earpiece/Lapel-mic

Icom OPC-478UC USB Programming Cable/B Version Compatible up to & including Windows 11

Icom BC-251 Desktop Charger

Icom CP-25H Cigarette Lighter Cable

Icom BC-242 AC Adapter

Icom HM-165 Speaker Microphone

Icom FA-SC59V Antenna

Icom BP-306 Li-ion Battery Pack

Icom MB-133 Belt Clip

Icom HM-228 Speaker Microphone

Icom OPC-1655 Cable adapter

Icom MB-96F Fixed Leather Belt Hanger
No compatible products found.
General
| Frequency range (TX) | 156.000 to 161.450 MHz |
| Frequency range (RX) | 156.000 to 163.425 MHz |
| Frequency (DSC) | 156.525 MHz |
| Frequency (AIS RX) | 162.025 MHz |
| Usable channel groups | INT, USA and ATIS channels (available depending on version) |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS) |
| Current drain (TX 6 W / 1 W) | 1500 mA / 700 mA (approx.) |
| Current drain (RX max audio, int/ext SP) | 700 mA / 350 mA (approx.) |
| Operating temperature range | -15°C to +55°C |
| Antenna impedance | 50 Ω |
| Dimensions (W x H x D) | 60.9 x 145.8 x 43.8 mm (projections not included) |
| Weight | 357 g (with BP-306, antenna, MB-133) |
| Battery operating time | Approx. 10 hours with BP-306 (typical 5:5:90, power save on) |
Transmitter
| Output power (Hi/Low) | 6 W / 1 W (5 W for AUS version) |
| Max frequency deviation | ±5 kHz |
| Frequency stability | ±1.5 kHz |
| Spurious emissions | 0.25 μW |
Receiver
| Sensitivity (at 20 dB SINAD) | -6 dBμ emf typical |
| DSC receiver sensitivity (at 1% BER) | -3 dBµ emf typical |
| AIS receiver sensitivity (at 20% PER) | -107 dBm |
| Squelch sensitivity (threshold) | -6 dBμ emf typical |
| Adjacent channel selectivity | 70 dB |
| Spurious response | 70 dB |
| Intermodulation | 68 dB |
| Hum and noise | 40 dB |
| Audio output power (internal SP) | 1500 mW typical (8 Ω load) |
| Audio output power (external SP) | 350 mW typical (8 Ω load) |
Environmental
| Waterproof rating | IPX7 (1 m depth of water for 30 minutes) |
| Military specification | Meets MIL-STD-810 G (also equivalent -C, -D, -E and -F) |
