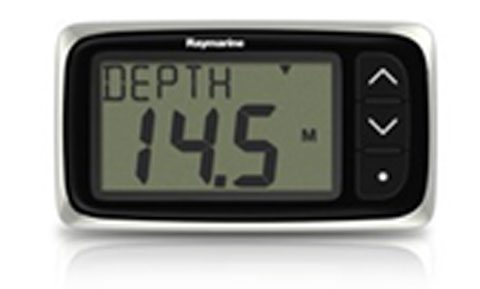

Raymarine i40 Depth Instrument Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine i40 Depth is a compact, easy to read instrument that keeps water depth clearly in view. Large digits and a high contrast LCD, lit by bold red backlighting, stay legible from across the cockpit in bright sun or at night. A full set of alarms, shallow and deep depth plus shallow and deep anchor, warns you when the water changes or your anchor drags.
A built in depth transducer interface connects the display directly to a Raymarine depth sounder, with thru-hull, transom and in-hull options available. A user adjustable depth offset lets you reference readings to the waterline or the keel.
Built on the SeaTalk network, the i40 Depth shares its data with other SeaTalk instruments and autopilots and can act as system master or as a repeater, with shared backlighting across the helm. Low power consumption and a rugged, weatherproofed IPX6 case make it dependable for new installations and the renewal of older instrument systems.
PRODUCT DETAILS
- Clear water depth display with oversized digits
- High contrast LCD with bold red backlighting for day or night
- Shallow and deep depth alarms plus shallow and deep anchor alarms
- Built in depth transducer interface
- User adjustable depth offset to waterline or keel
- Depth range 0 to 400 feet
- SeaTalk networking, master or repeater operation with shared backlighting
- Rugged, weatherproofed IPX6 case
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine P7 D Shorty Low Profile Plastic Through Hull Depth Transducer
Raymarine B45 Through Hull Bronze Stem Depth Transducer, includes Fairing Block
Raymarine P17 D Through Hull Retractable Plastic Depth Transducer
Raymarine P79 In Hull Depth Transducer with Fitting Kit
Raymarine P66 Transom Mount Depth Transducer
Raymarine B744V Bronze Depth, Speed, Temperature Through Hull Transducer
Raymarine B744VL Bronze Depth, Speed, Temperature Through Hull Transducer
Display
| Display type | Digital LCD with red backlighting and local and group dimming control |
| Depth range | 0 to 400 feet |
| Shallow depth alarm | 0 to 29 feet |
| Deep depth alarm | 30 to 400 feet |
| Anchor alarms | Shallow anchor 1 to 250 feet; deep anchor 10 to 400 feet |
Connections
| Network | SeaTalk |
| Transducer | Depth transducer connection |
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10 V dc to 16 V dc |
| Current consumption (typical) | 30 mA at 12 V |
| Current consumption (maximum) | 100 mA at 12 V |
Environmental
| Waterproof rating | IPX6 |
| Operating temperature | 0 C to +70 C (32 F to 158 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | 93% |
Conformance
| Conformance | Europe 2004/108/EC (EMC) |
