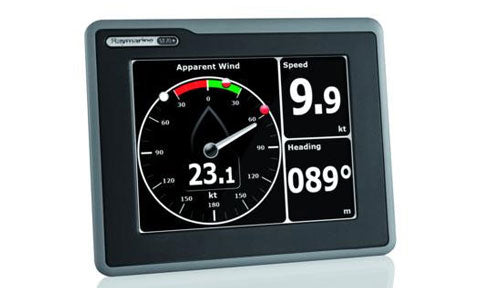

Raymarine ST70+ Multifunction Instrument Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Raymarine ST70+ is a versatile colour multifunction instrument that brings the data from your whole boat to one configurable display. Connected over SeaTalkng, it repeats and presents speed, depth, wind, heading, navigation, environment and engine information, and it also reads data from older Raymarine SeaTalk and SeaTalk2 equipment so it can renew an existing system.
A bright colour LCD with adjustable backlighting keeps the screen clear in sunlight and at night, while user configurable data pages and a straightforward keypad let each crew member set up the views they want. The ST70+ can act as a repeater alongside other instruments and autopilots on the network.
Housed in a rugged, weatherproofed case measuring 110 by 115 by 32.5 mm, the ST70+ shares the standard Raymarine instrument footprint for easy surface mounting. It runs from a 12 V dc supply and conforms to the EN60945 marine EMC standard.
PRODUCT DETAILS
- Colour LCD multifunction instrument display
- Repeats and displays speed, depth, wind, heading, navigation and engine data
- Connects over SeaTalkng; also reads SeaTalk and SeaTalk2 data
- User configurable data pages and simple keypad control
- Adjustable backlighting for day or night viewing
- Standard 110 x 115 x 32.5 mm instrument footprint for easy mounting
- 12 V dc supply, EMC EN60945 Revision 4 compliant
- Rugged, weatherproofed case
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display type | Colour LCD multifunction instrument display with backlighting (sliding scale) |
Connections
| Network | Two SeaTalkng connectors (also repeats SeaTalk and SeaTalk2 data) |
Physical
| Dimensions | 110 mm x 115 mm x 32.5 mm (4.33 x 4.53 x 1.28 in), excluding studs |
Power
| Nominal supply voltage | 12 V dc |
| Maximum supply voltage | 16 V dc (absolute maximum 18 V dc) |
| Minimum supply voltage | 9 V dc |
| Current consumption | Dependent on screen brightness; maximum not more than 220 mA |
Environmental
| Operating temperature | -20 C to +70 C |
Conformance
| Standards | RoHS; EMC EN60945 Revision 4 |
General
| Buzzer | Monotone buzzer |
