B&G

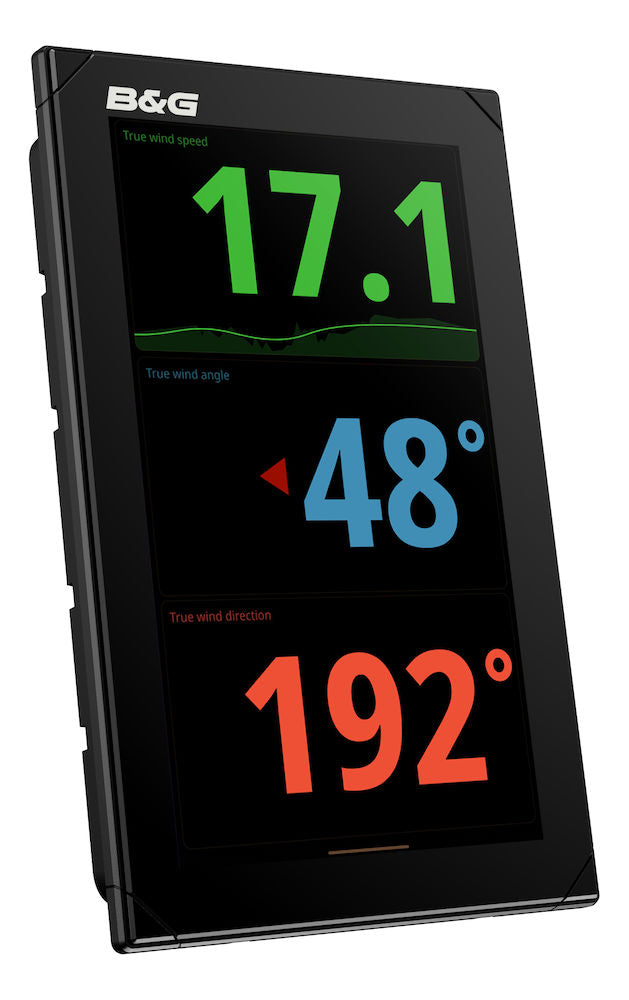

B&G NEMESIS 9
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
Nemesis™ 9 is the perfect solution for displaying all the crucial sailing data you need either on the mast, in the cockpit or at the helm station; as a single or as multiple screens via the Nemesis Hub. The super bright touch screen, with adjustable data sizes, palettes and backlight provides outstanding visibility, from wherever you are on the boat and in all conditions. The Nemesis display is also completely customisable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own - you can view your trusted sailing data and unique software from your network the way you want to, ensuring you get the most accurate data right in front of you, all the time.
PRODUCT DETAILS
- Pre-set dashboards or easy to use drag & drop editor for full customisation
- Wide choice of digital data displays including graphical gauges, SailSteer, tank levels, IP camera views, histograms and images
- Automatic Context modes: Upwind, Reaching, Downwind, Pre-start, Motoring, Pilot Status
- Bright touch screen, with super-wide viewing angles
- Adjustable palettes and backlight for optimal view in all conditions
- Mount in portrait and landscape
- Connect multiple screens via the Nemesis Hub
- Ethernet and/or NMEA2000
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Display Resolution | 1280 x 720 |
| Screen Brightness | 1300 nits |
| Viewing Angles | 80 top/bottom, +/- 80 left/right |
Connectivity
| Ethernet Ports | 1 x 100 Mbit |
| Wi-Fi | 802.11 b/g |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
Electrical
| Power Consumption max | 13W |
| Recommended Fuse Rating | 1.5 Amp |
| Supply Voltage | 10 - 32 V DC |
Environment
| Operating Temperature Range | -15°C to +55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to +60°C (-4°F to 140°F) |
| Waterproof rating | IP67 |
Physical
| Compass Safe | 500 mm (19.6") |
| Dimensions W x H x D | 239 x 149 x 69 mm (9.4 x 5.6 x 2.7") |
| Mounting Type | Flush, Panel |
| Weight | 1.0 kg (2.2 lbs) |
Other
| Interface | Touch Screen |
| Warranty Period | 2 years |
