Description

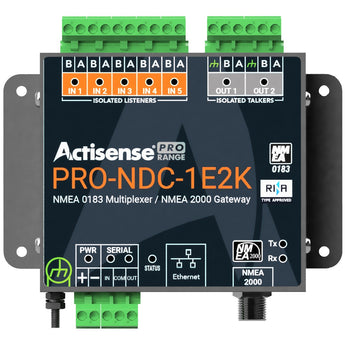

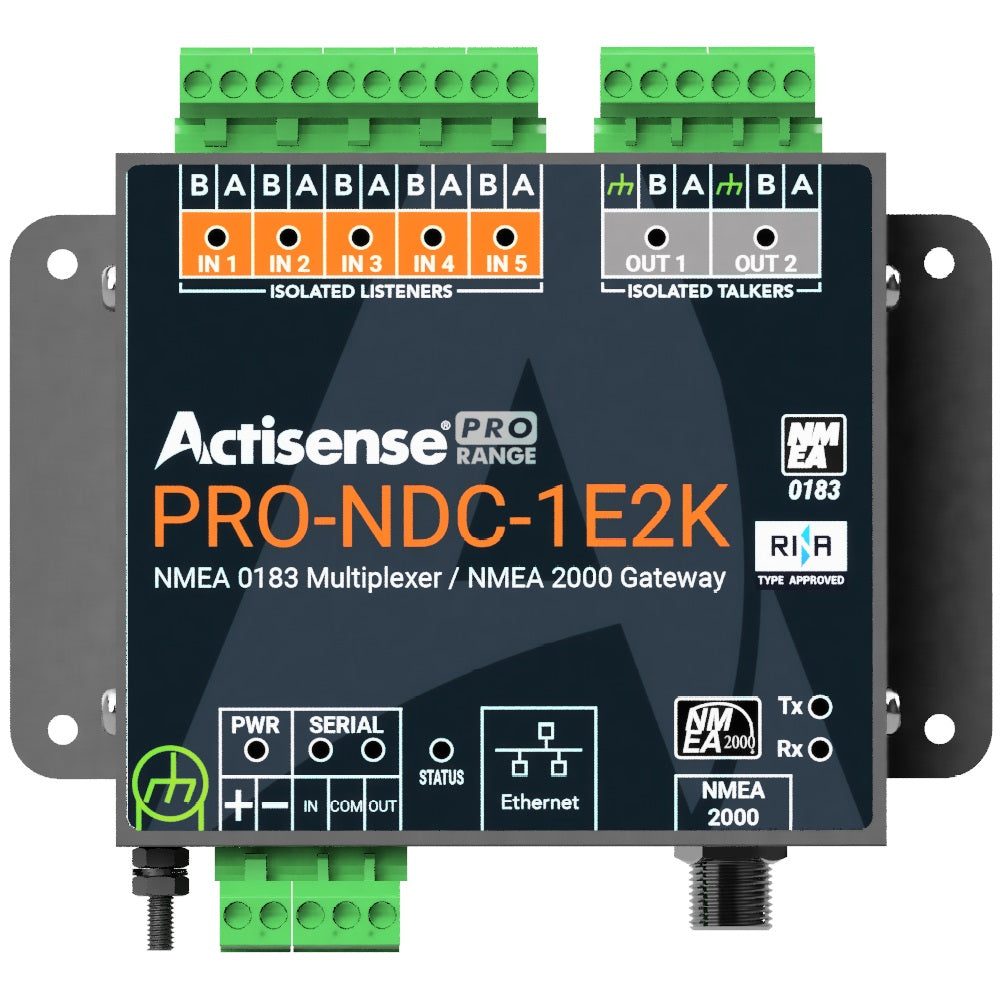

The Actisense PRO-NDC-1E2K is the world-first RINA type approved multiplexer to combine three connectivity protocols in one device: NMEA 0183, NMEA 2000 and Ethernet. Built on the proven PRO-NDC platform, it takes five OPTO-isolated NMEA 0183 inputs and two ISO-Drive isolated outputs and adds a direct NMEA 2000 M12 backbone connection, letting legacy 0183 instruments and a modern NMEA 2000 network exchange data without a separate gateway.
Bi-directional conversion is handled by the renowned Actisense conversion library built into the unit, so data can move between NMEA 0183, NMEA 2000, N2K ASCII and Actisense proprietary formats. Advanced sentence-level filtering, data routing and automatic failover between primary, secondary and tertiary sources give the installer precise control over what data flows where, and high-speed Ethernet streaming shares NMEA data across connected networks. Everything is configured through a web browser over Ethernet, with no operating system compatibility issues and no crossover cable required.
Housed in rugged 316 stainless steel with two-part pluggable connectors that accept both screw and screwless terminals, plus diagnostic LEDs on every port, the PRO-NDC-1E2K mounts to a bulkhead or, with the optional DIN-KIT-1, to a DIN rail.
PRODUCT DETAILS
- World-first type approved multiplexer with NMEA 0183, NMEA 2000 and Ethernet
- Five OPTO-isolated NMEA 0183 inputs and two ISO-Drive isolated outputs
- Direct NMEA 2000 M12 backbone connection with no separate gateway needed
- Built-in Actisense library for bi-directional NMEA 0183 to NMEA 2000 conversion
- Advanced sentence filtering, routing and automatic input failover
- High-speed Ethernet streaming and web-based configuration in any browser
- Rugged 316 stainless steel housing with screw and screwless terminal support
- RINA type approved with double galvanic isolation throughout
- PRO-NDC-1E2K multiplexer with NMEA 2000 gateway
- Two-part pluggable screw terminal connectors
- Mounting screws
- Quick start guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Power
| Input Supply Voltage | 9 to 35 V DC |
| Input Supply Current | 150mA max @ 12V DC (all outputs at full drive into 100 ohm loads) |
| Input Protection | Continuous reverse polarity, transient overvoltage and ESD protection |
NMEA 0183 Ports
| Listener / Input Ports | 5 isolated NMEA 0183 Listeners |
| Talker / Output Ports | 2 isolated NMEA 0183 Talkers |
| Compatibility | Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / Baud Rate | 4800 to 38400 bps |
Serial Port
| Compatibility | RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / Baud Rate | 115200 bps |
Ethernet Port
| Host Interface | 10/100BaseT, automatic polarity detection |
| Connector | RJ45 |
NMEA 2000 Port
| Speed / Baud Rate | 250 kbps |
| Connector | M12 male (A-coded) |
Isolation
| NMEA 0183 Listener, Talker & Serial | Uses ISO-Drive, Hi-Pot tested to 1000V |
| Ethernet Port | 2kV for 60s |
| NMEA 2000 Port | OPTO-Isolated, Hi-Pot tested to 1000V |
Mechanical
| Housing Material | 316 Stainless Steel |
| Dimensions | 139mm (W) x 98mm (H) x 26mm (D) |
| Weight | 360g |
| Mounting | Bulkhead mount or DIN rail mount (DIN-KIT-1) |
Environmental & Approvals
| EMC | IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 |
| Compass Safe Distance | 300mm |
| Type Approval | RINA |
| Operating Temperature | -25 to +70 C |
| Storage Temperature | -40 to +85 C |
| Relative Humidity | 95% @ 55 C |
| Environmental Protection | IP40 |
| Guarantee | 5 Years (upon registration) |
