Garmin
OnDeck™ Hub
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin OnDeck hub brings remote monitoring and control to your boat. Using its built-in cellular connection, it sends alerts and status to the ActiveCaptain app on your phone, so you can check battery voltage, shore power, security sensors, bilge activity and more from anywhere, and remotely switch connected items such as lights through optional relays. It connects to the boat NMEA 2000 network to monitor compatible NMEA 2000 devices and to the Garmin Marine Network to share data with compatible chartplotters.

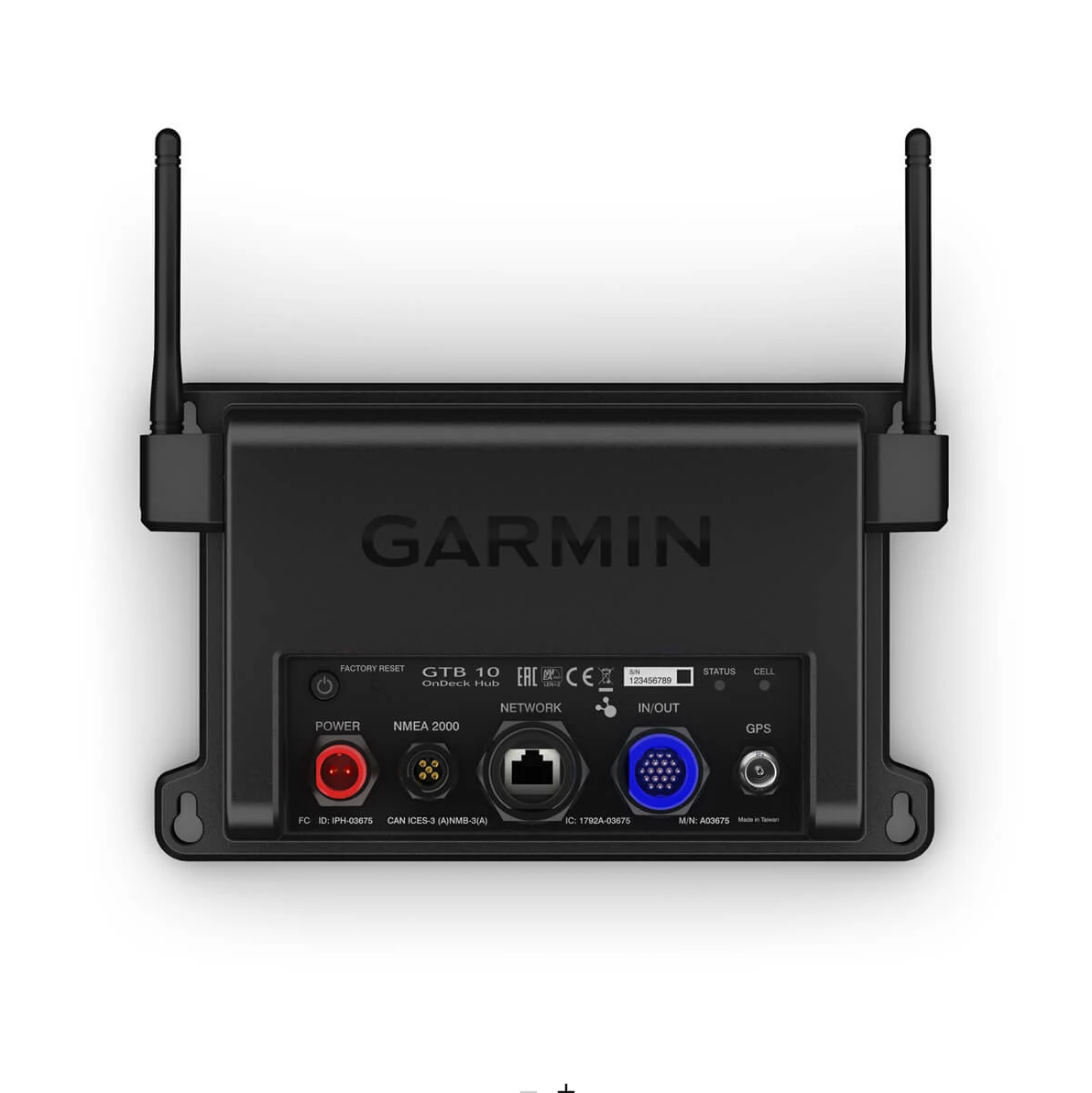

Designed for permanent installation, the GTB 10 black box has a polycarbonate housing sealed to IPX7 and an internal backup battery that keeps the system reporting for around 48 hours if the main supply is interrupted. An external GPS antenna can be added where the internal antenna reception is poor. A subscription is required for cellular monitoring.
PRODUCT DETAILS
- Remote boat monitoring through the ActiveCaptain app
- Built-in cellular (LTE) connection for alerts anywhere
- Connects to NMEA 2000 and the Garmin Marine Network
- Accepts wired shore power, temperature, security and bilge sensors
- Controls items such as lights through optional relays
- Internal backup battery, around 48 hours of typical use
- Polycarbonate housing, waterproof to IEC 60529 IPX7
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Physical
| Weight | 0.64 kg (1.4 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 102 mm (4 in.) |
Environmental
| Operating temperature range | -15 to 55 C (5 to 131 F) |
| Water rating | IEC 60529 IPX7 |
Electrical
| Input voltage | 10 to 32 Vdc |
| Fuse | 7.5 A, 42 V fast-acting |
| Max. power usage at 10 Vdc | 20 W |
| NMEA 2000 LEN at 9 Vdc | 2 |
| Backup battery life | 48 hours (typical use) |
Connectivity
| Networks | NMEA 2000 and Garmin Marine Network |
| Cellular | LTE / UMTS cellular with internal antenna |
