Scanstrut

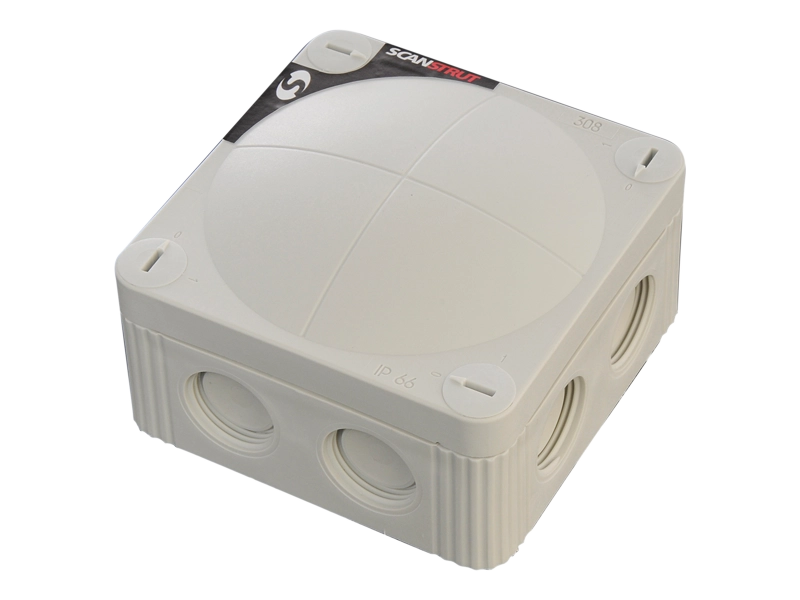

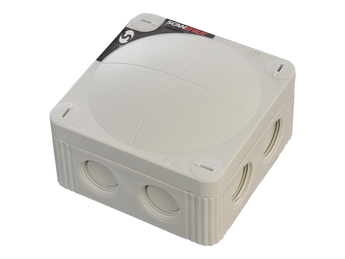

SB-8-10 Junction Box
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The SB-8-10 is the higher-capacity version of Scanstrut's sealed marine junction box, equipped with ten screw-down terminals for more involved wiring layouts. It gives a single protected location to consolidate, join and branch a larger number of power and signal cables aboard the vessel.
With an IP67/IP68 rating, the enclosure resists spray, rain and washdown, and the grommet-sealed cable entries prevent water reaching the connections. The screw terminals can be wired and reconfigured without soldering, making the box easy to install and to extend as the boat's electrical system grows.
PRODUCT DETAILS
- Waterproof junction box for joining marine cables
- 10 connections rated to 600 V and 20 A
- Accepts cables up to 12 mm diameter and 28-12 AWG wire
- IP66 sealed, upgradeable to IP67 with the SB-2G gland kit
- Compact 85 x 85 x 51 mm enclosure
- Snap-fit lid for quick, tool-light access
- Junction box with snap-fit lid x1
- 10-way connection terminal
- Cable glands
- Fixing screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Product type | Junction / splice box |
| Number of connections | 10 |
| Voltage rated | 600 V |
| Current rated | 20 A |
| Maximum cable diameter | 12 mm (0.5 in) |
| Wire gauge | 28-12 AWG (0.08-3.3 mm2) |
| Waterproof rating | IP66 (IP67 with SB-2G upgrade) |
Dimensions
| Width | 85 mm (3.35 in) |
| Length | 85 mm (3.35 in) |
| Height | 51 mm (2.0 in) |
