Scanstrut
Scanstrut Standard version 5 screw down terminals
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

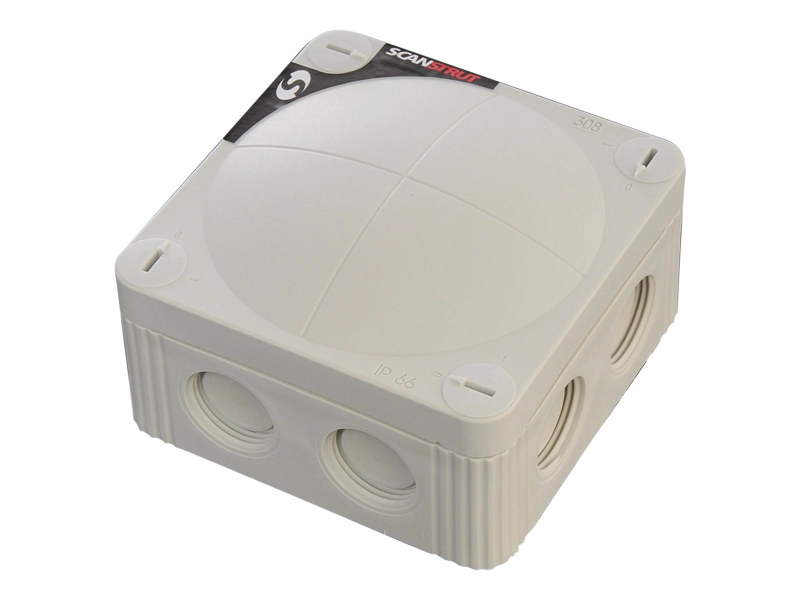

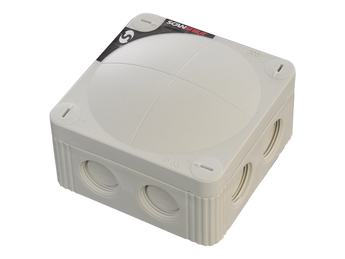

The SB-8-5 is a sealed marine junction box fitted with five screw-down terminals, providing a tidy and protected point at which to join and distribute boat wiring. The screw terminals allow connections to be made and adjusted without soldering, which is ideal for installation and later servicing.
Rated to IP67/IP68, the enclosure shields connections from spray, rain and washdown, while sealed cable entries with grommets keep water out where the wiring passes through. This makes it a dependable choice for distributing power and signal cabling in damp or exposed parts of the vessel.
PRODUCT DETAILS
- Waterproof junction box for joining marine cables
- 5 connections rated to 400 V and 32 A
- Accepts cables up to 12 mm diameter and 16-11 AWG (1.5-4 mm2) wire
- IP66 sealed, upgradeable to IP67 with the SB-2G gland kit
- Compact 85 x 85 x 51 mm enclosure
- Snap-fit lid for quick, tool-light access
- Junction box with snap-fit lid x1
- 5-way connection terminal
- Cable glands
- Fixing screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Product type | Junction / splice box |
| Number of connections | 5 |
| Voltage rated | 400 V |
| Current rated | 32 A |
| Maximum cable diameter | 12 mm (0.5 in) |
| Wire gauge | 16-11 AWG (1.5-4 mm2) |
| Waterproof rating | IP66 (IP67 with SB-2G upgrade) |
Dimensions
| Width | 85 mm (3.35 in) |
| Length | 85 mm (3.35 in) |
| Height | 51 mm (2.0 in) |
