Maretron Pressure Transducer 0 to 500 PSI FPM100
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

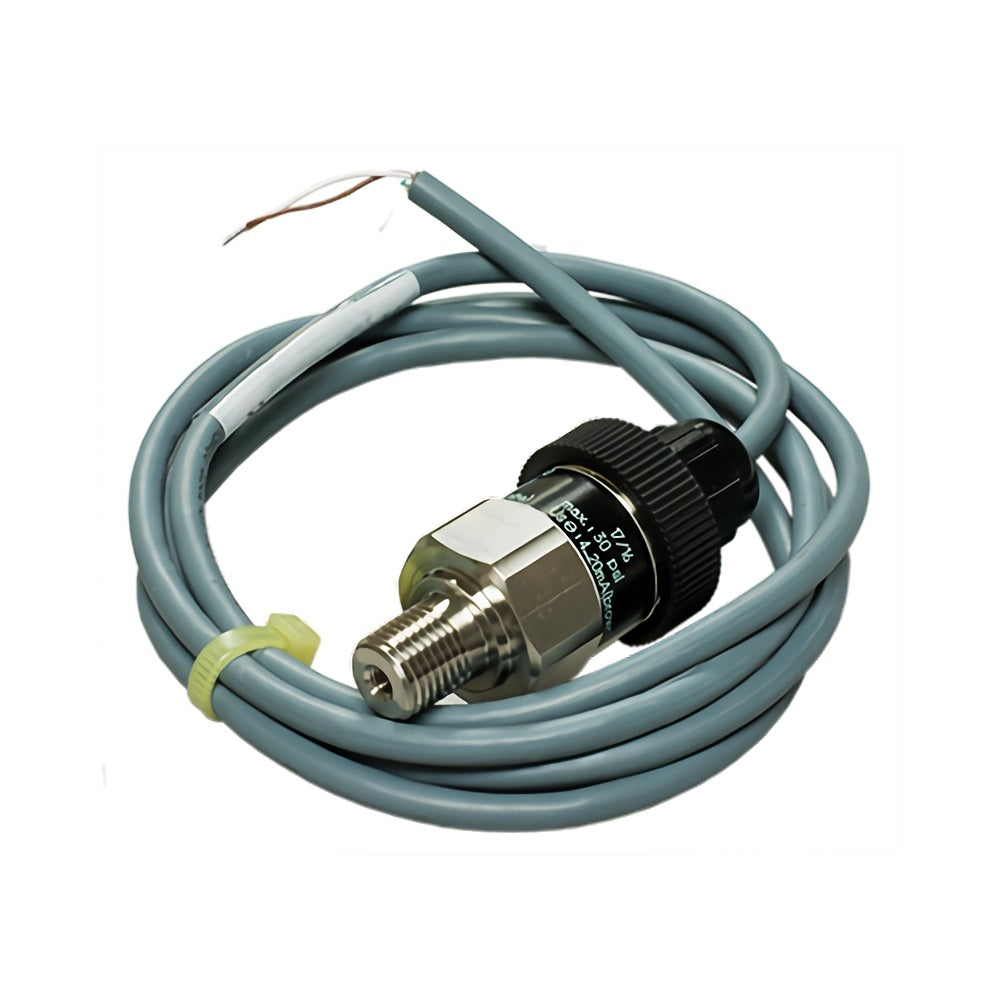

The Maretron PT-0-500PSI-01 is a gauge-type pressure transducer that senses fluid pressure over a 0 to 500 PSI (34.5 bar) range and passes the reading to a Maretron FPM100 Fluid Pressure Monitor. The FPM100 converts the signal into NMEA 2000 data so the pressure can be displayed on any compatible display or monitoring system aboard the vessel.
With a 0 to 500 PSI span it is well suited to hydraulic circuits, oil pressure and other medium-pressure systems using media such as motor oil, diesel, hydraulic fluid, water and air. A rugged stainless steel body and a 1/4 inch NPT male fitting allow it to be threaded directly into the system being monitored.
For best accuracy choose the smallest range sufficient for the application. Where pressure spikes or transients may occur, fit a PT-SNUB-01 pressure snubber ahead of the transducer. Not approved for use with petrol or gasoline.
PRODUCT DETAILS
- Measures 0 to 500 PSI (34.5 bar) gauge pressure
- Feeds fluid pressure data to the FPM100 for NMEA 2000 monitoring
- Stainless steel construction rated to 1500 PSI maximum over-pressure
- 1/4 inch NPT male thread for direct system mounting
- Compatible with oil, diesel, hydraulic fluid, water and air
- 4-20mA current-loop, loop-powered output
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Pressure Range | 0 to 500 PSI (34.5 bar) |
| Sensor Type | Gauge |
| Accuracy | +/-1.75% Full Scale |
| Maximum Over Pressure | 1500 PSI (103 bar) |
Electrical
| Output | 4 to 20 mA current loop, loop powered |
Mechanical
| Thread | 1/4 inch NPT male |
| Construction | AISI 304 housing, AISI 630 pressure connection and sensor |
| Cable | IP67 PVC, 1.0 m (3.28 ft) |
| Weight | 50 g (1.8 oz) |
Environmental
| Operating Temperature | -5 C to 60 C |
| Media Temperature | -40 C to 125 C |
