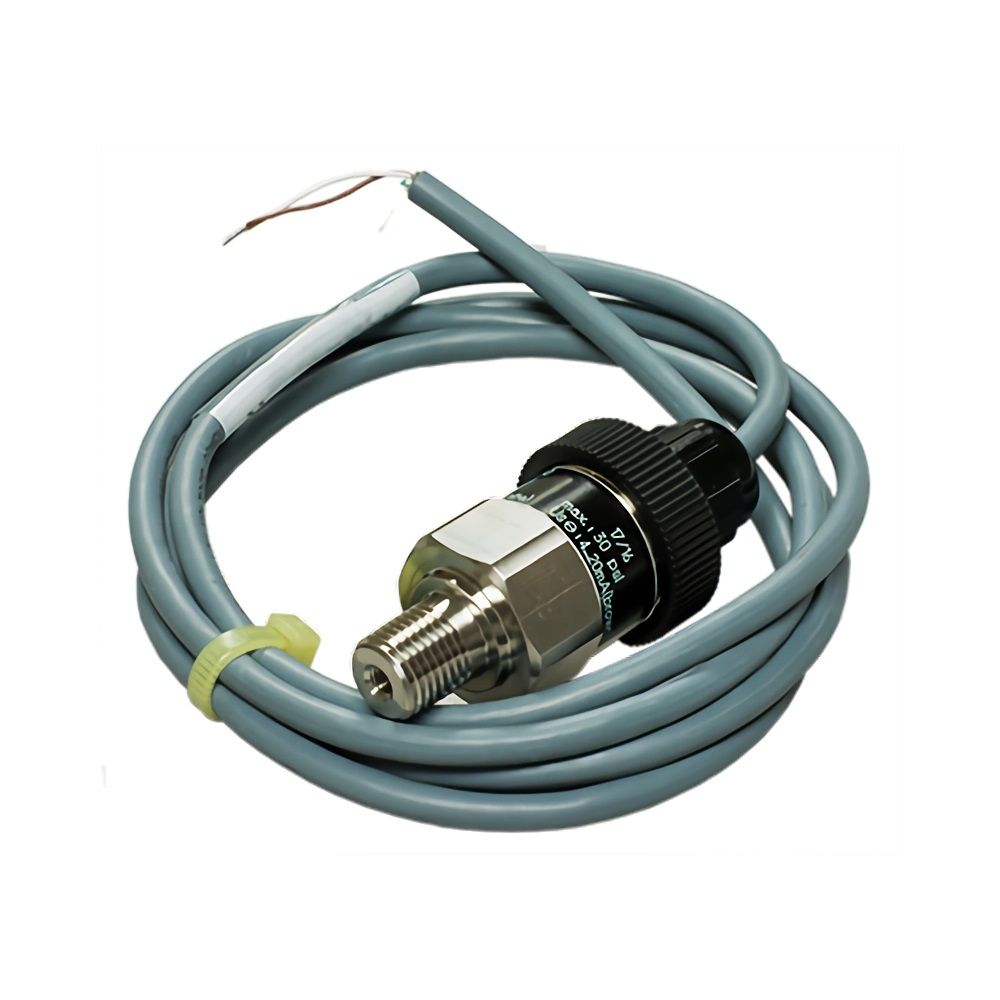

Maretron Pressure Transducer Vacuum to 1 Bar
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron PT-V-0-1BAR-01 is a gauge-type pressure transducer that measures over a compound vacuum to 1 bar range (-14.5 to 14.5 PSI) and passes the reading to a Maretron FPM100 Fluid Pressure Monitor, or a CLM100 Current Loop Monitor. The monitor converts the signal into NMEA 2000 data so the value can be displayed anywhere on the vessel.
Because it reads both vacuum and positive pressure, it is particularly useful for detecting clogged fuel or air filters through the vacuum they create, as well as general low-pressure and vacuum monitoring. It works with air, diesel, motor oil, hydraulic fluid, water, waste water and other compatible media.
A stainless steel body with a ceramic sensing element and a 1/4 inch NPT male fitting allow direct mounting into the system being monitored. Where pressure spikes may occur, fit a PT-SNUB-01 pressure snubber first. Not approved for use with petrol or gasoline.
PRODUCT DETAILS
- Compound range from vacuum to 1 bar (-14.5 to 14.5 PSI)
- Reads both vacuum and positive pressure
- Ideal for detecting clogged fuel or air filters
- Works with the FPM100 or CLM100 for NMEA 2000 monitoring
- Stainless steel body with ceramic sensing element
- 1/4 inch NPT male thread, 4-20mA loop-powered output
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Pressure Range | Vacuum to 1 bar (-14.5 to 14.5 PSI) |
| Sensor Type | Gauge (compound) |
| Accuracy | +/-1% Full Scale |
| Maximum Over Pressure | 29 PSI (2 bar) |
Electrical
| Output | 4 to 20 mA current loop, loop powered |
Mechanical
| Thread | 1/4 inch NPT male |
| Construction | 303 stainless steel, thick film on ceramic Al2O3 sensor |
| Cable | IP67 PVC, 1.5 m (4.9 ft) |
| Weight | 110 g |
Environmental
| Operating Temperature | -5 C to 60 C |
| Media Temperature | -25 C to 125 C |
