Mastervolt
Mastervolt EasyCharge 10A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt EasyCharge 10A is a waterproof, fixed-mount marine battery charger that delivers 10 A at 12 V or 5 A at 24 V. Fully sealed in an epoxy-filled, non-corrosive enclosure and built to IP68 standards, it is salt, shock and vibration tested for the harshest onboard environments. The outputs are completely isolated and can be wired in series or parallel for higher voltage or current, while a universal 120 to 230 V input gives worldwide flexibility.
Designed as an entry-level charger with the Mastervolt 3-step+ charge characteristic, it suits Gel, AGM and flooded batteries and can charge one or two battery banks. The Sense-Send technology automatically detects which battery needs the most charge and prioritises it, and a quick charging function helps extend battery life. This UK plug version carries product code 43321002.
PRODUCT DETAILS
- Entry-level charger with Mastervolt 3-step+ charge characteristic
- Delivers 10 A at 12 V or 5 A at 24 V
- Suitable for charging Gel, AGM and flooded batteries
- Can charge one or two battery banks
- Sense-Send technology determines which battery is charged first
- Series and parallel configuration for higher voltage or current
- Fully sealed epoxy-filled enclosure to IP68 waterproofing standard
- Salt, shock and vibration tested for harsh environments
- Full power up to 40 degrees C with quick charging function
- Supplied with cable and UK plug (product code 43321002)

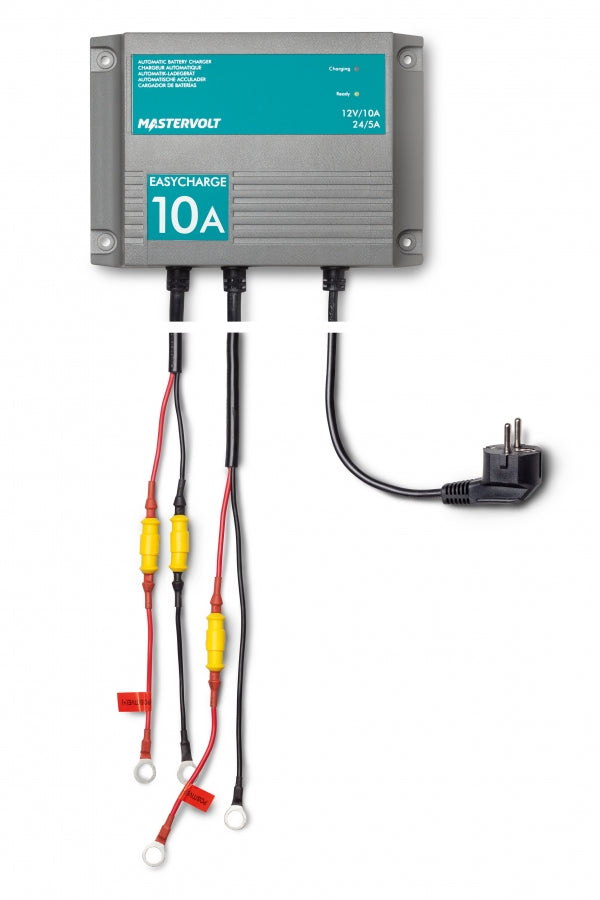

- EasyCharge battery charger with fitted AC cable and UK plug
- DC ring terminals
- User and installation manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General specifications
| Total charge current | 10 A at 12 V / 5 A at 24 V |
| Recommended battery capacity: charge | Up to 120 Ah (based on 50% discharged battery) |
| Nominal input voltage | 120/230 V (90-265 V), 50/60 Hz |
| AC connection | 1.2 m (4 ft) cable + UK plug |
| DC connection | Ring terminals |
| Galvanic isolation | Yes |
| Dimensions, hxwxd | 127 x 178 x 51 mm |
| Weight | 2.8 kg |
| Compliance | CE, ABYC |
Technical specifications
| Charge characteristic | IUoUo, automatic 3-step+ for Gel/AGM/flooded |
| Temperature range (ambient temp.) | -20 degrees C to 50 degrees C |
| Protection degree | IP68 |
| Protections | Spark free, short circuit, reverse polarity, over voltage, current limited, over temperature |
| MasterBus compatible | No |
