Mastervolt

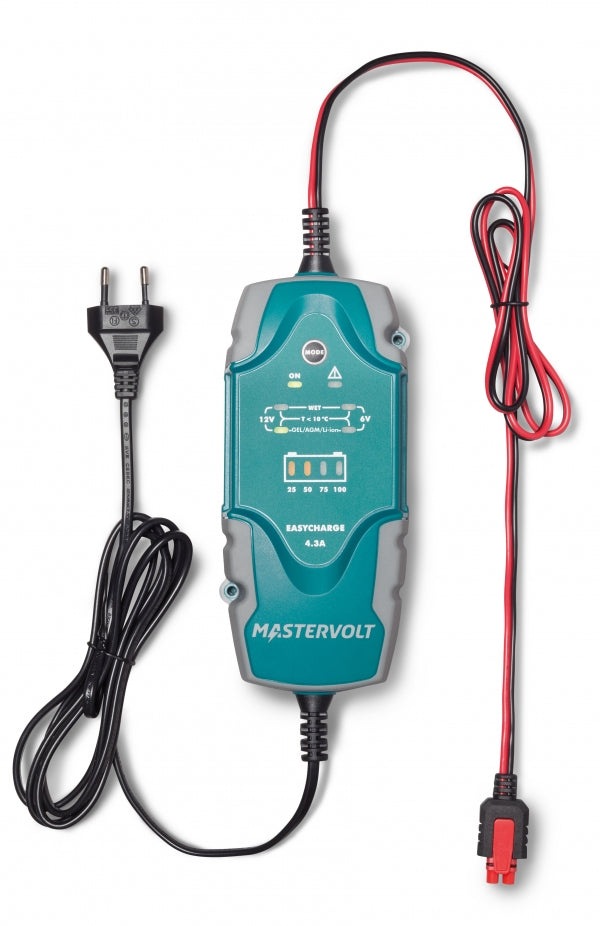

Mastervolt EasyCharge Portable 4.3A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt EasyCharge Portable 4.3A is a rugged, waterproof battery charger for people on the move, equally at home on a boat, car, motorcycle or camper van. Built to IP65 standard with an ergonomic construction and an intuitive control panel, it accepts a universal 120 to 230 V input for total worldwide freedom and delivers a total charge current of 4.3 A.
Using the Mastervolt 3-step+ charge characteristic, it suits any battery type including Lithium Ion, and users can switch quickly between 6 V (ideal for toys, classic cars and motorcycles) and 12 V operation. The unit ships with 1.8 m of DC cable that connects to either a 61 cm ring-terminal lead or a 61 cm alligator-clip lead, both included. This UK plug version carries product code 43510402.
PRODUCT DETAILS
- Mastervolt 3-step+ charge characteristic
- Total charge current of 4.3 A
- Suitable for any battery type, including Lithium Ion
- Simple switching between 6 V and 12 V operation
- Universal input (120 to 230 V) for worldwide use
- Rugged, ergonomic and portable construction
- Waterproof to IP65 standard
- Full power up to 40 degrees C
- Connects via ring terminals or alligator clips (both included)
- Supplied with cable and UK plug (product code 43510402)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General specifications
| Total charge current | 4.3 A |
| Recommended battery capacity: maintain | 14 to 120 Ah |
| Recommended battery capacity: charge | 14 to 90 Ah |
| Nominal input voltage | 120/230 V (90-265 V), 50/60 Hz |
| AC connection | 1.8 m (6 ft) cable + UK plug |
| DC connection | Ring and alligator clip connections, with integrated fuse |
| Galvanic isolation | Yes |
| Dimensions, hxwxd | 161 x 72 x 43.7 mm |
| Weight | 0.9 kg |
| Compliance | CE, ABYC |
Technical specifications
| Charge characteristic | IUoUo, automatic 3-step+ for Gel/AGM/flooded/Lithium Ion |
| Temperature range (ambient temp.) | -20 degrees C to 40 degrees C |
| Protection degree | IP65 |
| Protections | Short circuit, reverse polarity, over voltage, current limited, over temperature |
| MasterBus compatible | No |
