Mastervolt

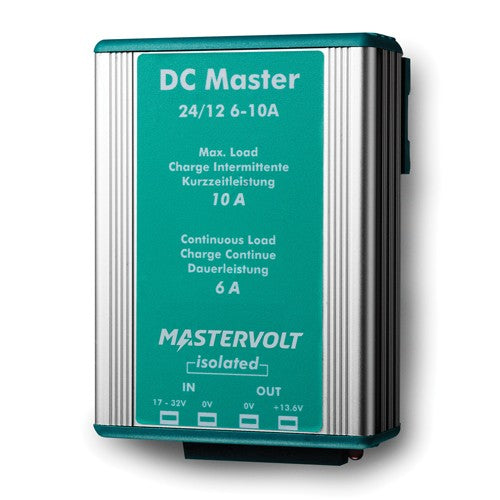

Mastervolt DC Master Voltage Converter (Isolated / 24V - 12V DC / 6A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The DC Master 24/12-6 Isolated is a compact DC-DC converter that delivers a stable 13.6 V output from a 24 V battery system, supplying up to 6 A continuously to onboard 12 V equipment. It is intended for recreational and semi-professional installations where some equipment runs at 24 V while the rest of the system needs a reliable 12 V supply.
As an isolated model it provides full galvanic isolation between the input and output circuits. This makes it extra touch-proof and suppresses interference for sensitive equipment, and it can be used with negative or positive grounding. The converter also provides two minutes of extra capacity, delivering up to 10 A for short intervals when a brief power boost is needed.
The unit is stabilised, naturally cooled and rated to IP53. It is delivered complete with a mounting bracket, screws and fasteners for quick installation.
PRODUCT DETAILS
- Isolated 24 V to 12 V DC-DC converter with full galvanic isolation
- Stabilised 13.6 V output at 6 A continuous
- Two minutes of extra capacity up to 10 A for short power boosts
- Extra touch-proof with interference suppression for sensitive equipment
- Suitable for negative or positive grounding
- IP53 protection with natural cooling
- Supplied with mounting bracket, screws and fasteners
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Nominal input voltage | 24 V |
| Input voltage range (max.) | 20-32 V DC (35 V) |
| Nominal output voltage | 13.6 V |
| Continuous output current | 6 A |
| Max. output current (for 2 min. intervals) | 10 A |
| Nominal output power | 82 W |
| Max. output power | 136 W |
| Galvanic isolation | Yes |
| Stabilised | Yes |
| Compliance | CE |
Technical
| DC consumption | < 15 mA |
| Connections | Fast-on |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 30 |
| Cooling | Natural cooling |
| Protection degree | IP53 |
Physical
| Dimensions (H x W x D) | 127 x 87 x 50 mm |
| Weight | 0.505 kg |
