Maretron
5.7" HIGH BRIGHT COLOR DISPLAY
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

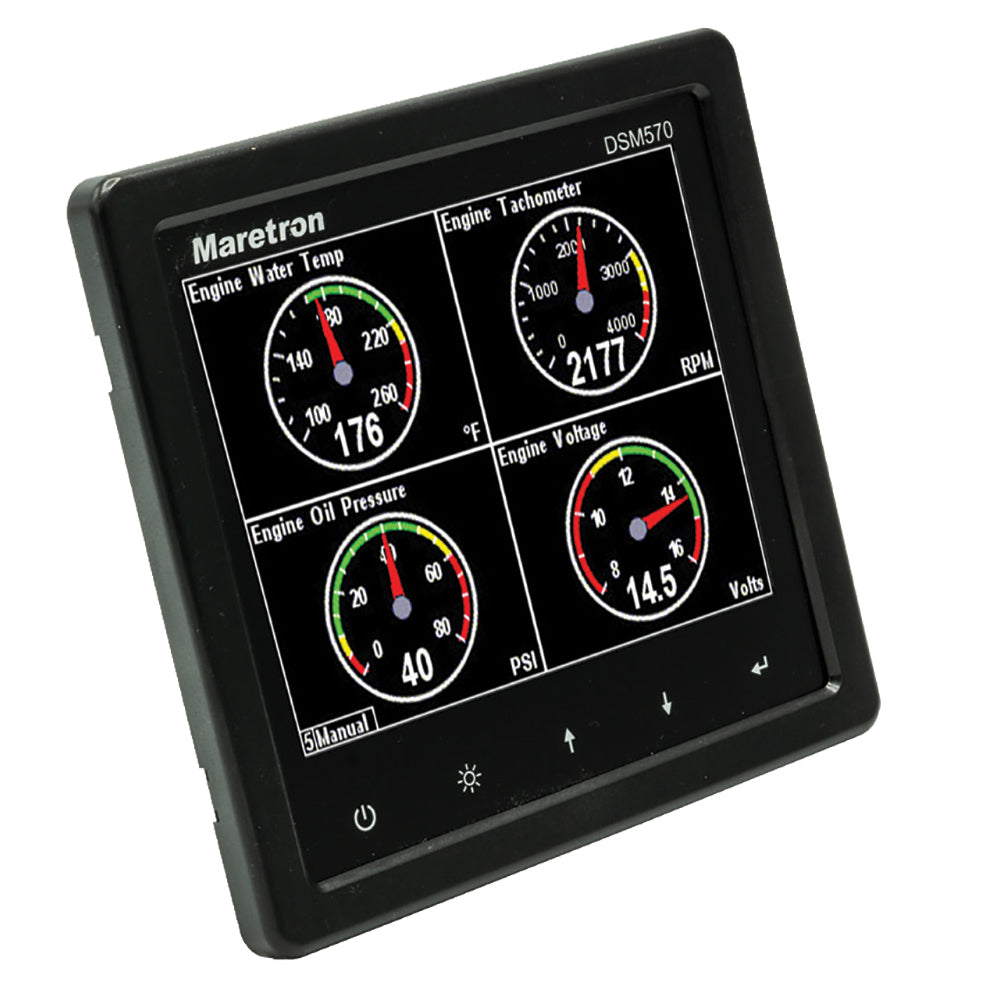

The Maretron DSM570 is a 5.7 inch high-resolution, sunlight-viewable colour display that interprets and shows NMEA 2000 instrument, navigation and vessel monitoring data. This user-friendly dedicated marine display offers custom screen configurations and an easy-to-use five-key illuminated keypad, giving you a clear, generous view of the data that matters most.
Users can choose numeric, gauge, bar or graph formats in single or multiple layouts, with cycling options across up to 16 user-defined screens. With the exception of AIS data, the DSM570 will directly connect to any NMEA 2000 network and display any information captured throughout the vessel, including AC power, battery, depth, engine, environment, fuel management, GPS, heading, navigation, rudder, speed, tanks, temperature, time and transmission.
In addition to monitoring, the DSM570 provides an alert and alarm package with programmable audible and visual alarms, plus electrical switching control. Engineered to IEC 60945 standards with an anodised aluminium housing rated to IP67, it is built to handle vibration and salt spray for years of reliable performance, and a dust cover is included.
PRODUCT DETAILS
- 5.7 inch sunlight-viewable active matrix TFT colour display
- 640 x 480 high-resolution screen for clear fonts, gauges and charts
- 16 user-defined screens in numeric, gauge, bar or graph formats
- Five-key illuminated keypad
- Integrated alert/alarm package and electrical switch control
- Anodised aluminium housing rated to IP67
- Dust cover included
- DSM570 5.7" High Resolution Colour Display
- Dust cover
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display Technology | Active Matrix TFT LCD (sunlight readable) |
| Display Resolution | 640 x 480 pixels |
| Viewable Area | 115.2mm W x 86.4mm H (5.7" diagonal) |
| Backlighting | LED, 3 user-programmed levels 0-100% |
| Keyboard | 5 silicone touch pads with multi-coloured LED backlighting |
| Body Construction | Anodised aluminium |
| Languages Supported | English, Dutch (Nederlands) |
Electrical
| Operating Voltage | 9 to 30 Volts DC |
| Power Consumption (Maximum) | 4.5 W |
| Load Equivalence Number (LEN) | 9 |
| Reverse Battery Protection | Yes (indefinitely) |
| Load Dump Protection | Yes |
Mechanical
| Size | 146.5mm (H) x 156.5mm (W) x 10mm (forward D) x 19.9mm (rear D) |
| Weight | 737 g (26 oz) |
| Mounting | Flush mount |
| NMEA 2000 Connector | DeviceNet Micro-C |
Environmental
| Degree of Protection | IP67 |
| Operating Temperature | -20C to 70C |
| Storage Temperature | -30C to 80C |
Certifications
| Standards | IEC 60945, IEC 61162-3, FCC and CE Mark |
