Maretron
FUEL FLOW MONITOR
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

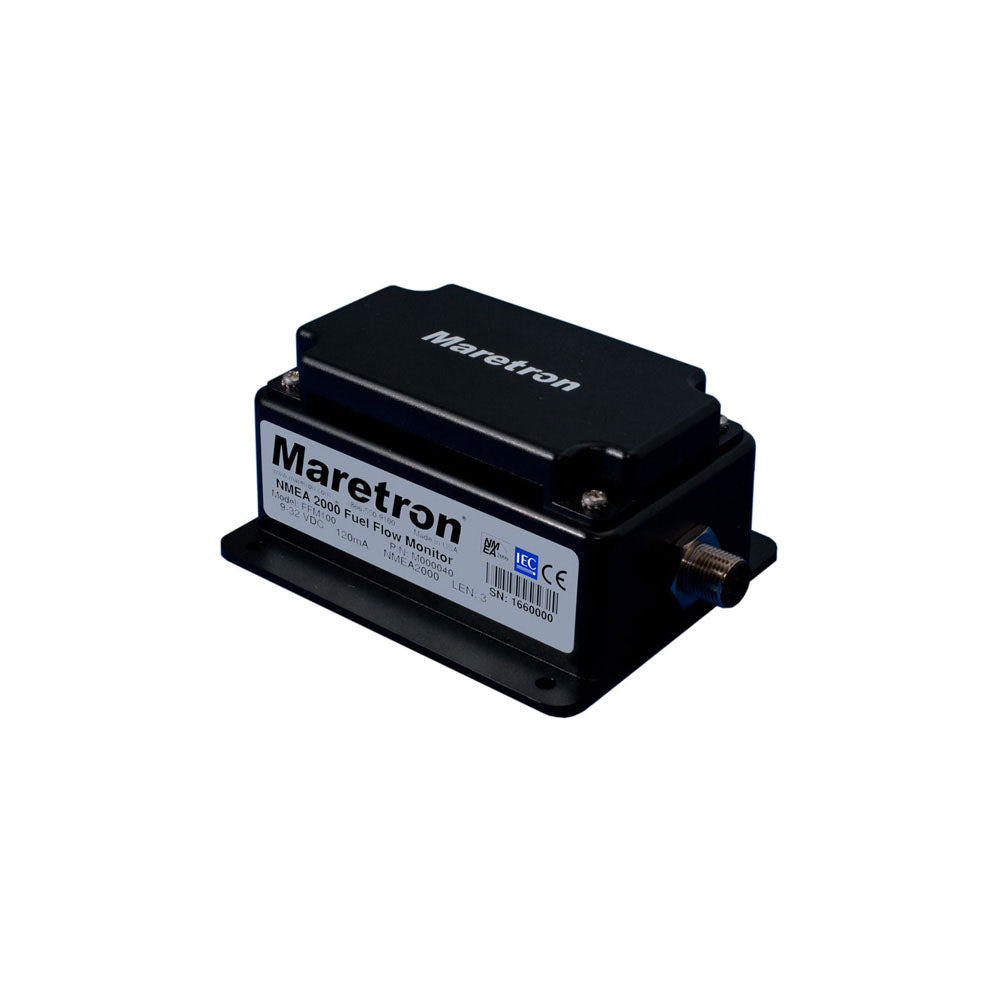

The Maretron FFM100 Fuel Flow Monitor delivers precision fuel-flow information that helps optimise consumption and can save thousands in operating costs. It converts a variety of flow senders, ordered separately to match the application, into NMEA 2000 data that can be viewed on any compatible display. A single sender suits a petrol engine, while dual senders measure supply and return on a diesel engine for true net consumption.
Unlike turbine meters, the FFM100 uses positive-displacement metering technology for superior accuracy and does not require costly flow-conditioning components such as straighteners and pulse dampers. Embedded thermistors provide true temperature compensation, correcting for the hotter return fuel that can otherwise introduce errors of up to 5 percent, and the monitor automatically accounts for momentary reverse flow caused by the injection pump.
Combined with a GPS antenna and Maretron displays or N2KView software, the FFM100 becomes the heart of a complete fuel-management system showing rate, economy, and range so you always know how much fuel remains.
PRODUCT DETAILS
- Converts fuel, water and other flow senders to NMEA 2000 network data
- Positive-displacement metering for accuracy well above turbine-meter systems
- True temperature compensation with built-in precision thermistors
- Automatically detects and discounts momentary reverse flow from injection pumps
- No flow straighteners or pulse dampers required, reducing installation cost
- Supports single or dual senders for petrol or diesel supply-and-return measurement
- NMEA 2000 certified for display anywhere on the vessel
- FFM100-01 Fuel Flow Monitor
- Mounting hardware
- User's manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Performance
| Accuracy (Differential Mode) | ±1.75% of reading (4:1 fuel feed / consumption ratio) |
| Accuracy (Two Independent Sensors) | ±0.25% of reading |
| Resolution | 0.1 LPH (0.026 GPH) |
Electrical
| Operating Voltage | 9 to 32 Volts DC |
| Power Consumption | 150mA maximum current drain |
| Load Equivalence Number (LEN) | 3 |
| Reverse Battery Protection | Yes, indefinitely |
Mechanical
| Size | 3.50" x 4.20" x 2.03" (88.9mm x 106.7mm x 51.6mm) including mounting flanges |
| Weight | 13 oz (368.5 g) |
Environmental
| Degree of Protection | IP64 |
| Operating Temperature | -25°C to 55°C |
| Storage Temperature | -40°C to 70°C |
NMEA 2000
| Certification Level | Level A |
Certifications
| Standards | NMEA 2000 Level A, IEC 61162-3, tested to IEC 60945, FCC and CE Mark |
