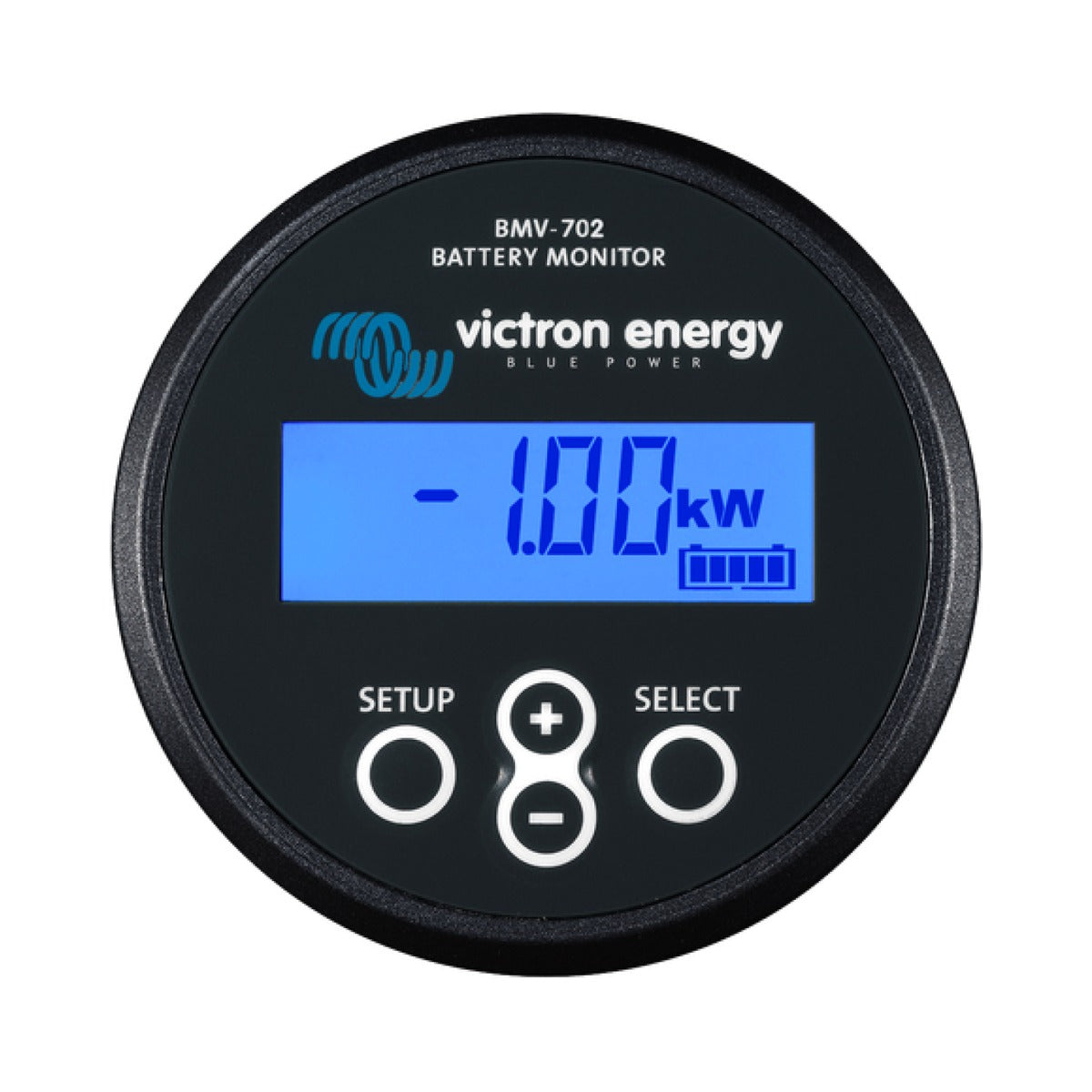

Victron BMV-702 Battery Monitor Kit (Black)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BMV-702 is a high-precision battery monitor that adds a second measurement input to the BMV-700 platform, supplied here with a black front bezel. Alongside the true state of charge of the main battery, the auxiliary input can be programmed to read the voltage of a second battery, battery temperature or the midpoint voltage of a series-connected bank. Monitoring the midpoint voltage gives an early warning of a failing cell or battery in a large, expensive bank.
The kit contains the 63 mm round head unit, the 500 A / 50 mV shunt, a 10 metre RJ12 cable and a fused battery cable, so no further parts are required. As with all BMV monitors, it calculates ampere-hours consumed, state of charge and the time remaining at the present rate of discharge, and provides a programmable alarm and relay.
A VE.Direct port connects the BMV-702 to a Victron GX device or computer, and an optional VE.Direct to Bluetooth Smart dongle adds wireless monitoring from a phone or tablet.
PRODUCT DETAILS
- Black front bezel finish
- Auxiliary input for a second battery voltage, temperature or midpoint monitoring
- Midpoint monitoring gives early warning of a failing cell in a series bank
- Precise state-of-charge and time-to-go readout for the main bank
- Supplied with a 500 A / 50 mV shunt, 10 m RJ12 cable and fused battery cable
- Programmable visual and audible alarm with a 60 V / 1 A bistable relay
- VE.Direct port for connection to a GX device or computer
- Optional VE.Direct to Bluetooth Smart dongle for wireless monitoring
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Shunt rating | 500 A / 50 mV |
| Supply voltage range | 6.5 - 95 VDC |
| Bluetooth | No (optional VE.Direct to Bluetooth Smart dongle) |
| Display | 63 mm diameter flush-mount |
| Protection category (IP) | IP55 (not intended for outdoor use) |
Electrical
| Current draw | < 4 mA (back light off) |
| Battery capacity range | 1 - 9999 Ah |
| Auxiliary input | Yes - voltage of second battery, temperature or midpoint |
| Bistable relay | 60 V / 1 A normally open (function can be inverted) |
Resolution & accuracy
| Current resolution | ± 0.01 A |
| Voltage resolution | ± 0.01 V |
| State of charge resolution | ± 0.1 % |
| Current measurement accuracy | ± 0.4 % |
| Voltage measurement accuracy | ± 0.3 % |
Connectivity
| VE.Direct port | Yes |
Physical
| Dimensions (h×w×d) | 69 x 69 mm bezel; 52 mm body diameter; 31 mm depth |
| Shunt connection bolts | M10 |
Operating conditions
| Operating temperature range | -40 to +50 °C |
