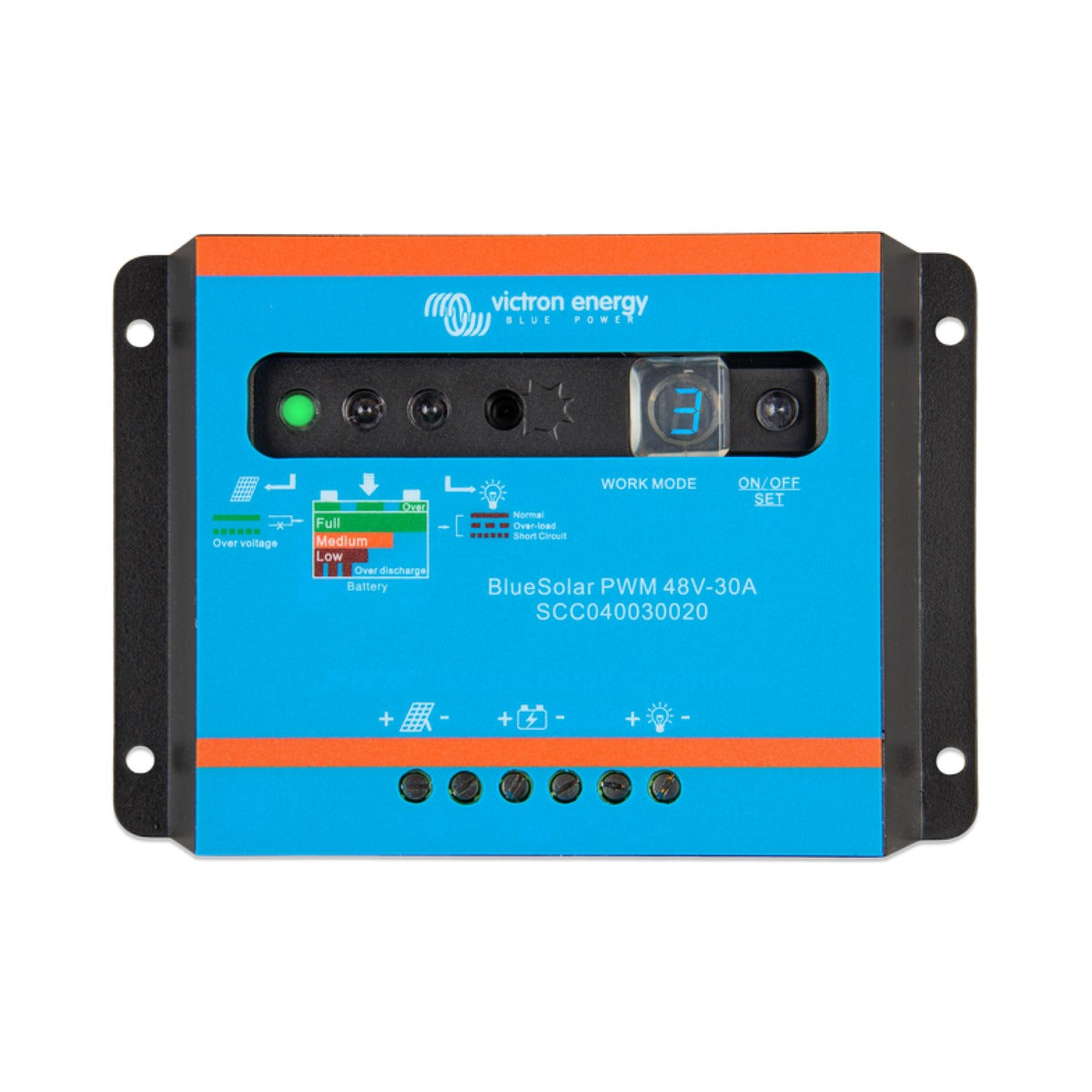

Victron BlueSolar PWM-Light 48V 30A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BlueSolar PWM-Light charge controller 48V-30A is a compact, affordable PWM controller designed for 48V solar systems. A seven-segment display makes setup simple, and the load output pairs a low battery voltage disconnect with a lighting control function and timer, which suits 48V solar lighting installations.
Three-stage charging (bulk, absorption, float) looks after the battery, and the unit is protected against reverse polarity, overload, short circuit and over-temperature. It is a practical, budget-friendly controller for 48V off-grid lighting and small remote power systems.
PRODUCT DETAILS
- PWM charge controller for 48V systems
- Rated charge current 30A; maximum solar voltage 100V
- Load output with low battery voltage disconnect
- Lighting control function with timer
- Seven-segment display for quick setup
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Technology | PWM (pulse width modulation) |
| Battery voltage | 48V |
| Maximum solar voltage | 100 V |
| Rated charge current | 30 A |
Charging
| Bulk charge | 58.0 V |
| Charge voltage 'absorption' | 56.8 V |
| Charge voltage 'float' | 55.2 V |
| Charge algorithm | Three stage (bulk, absorption, float), not programmable |
| Self-consumption | Less than 10 mA |
| Load output | Manual control with low-voltage disconnect and lighting timer |
| Low voltage load disconnect | 44.8 V |
| Low voltage load reconnect | 50.4 V (manual), 52.4 V (automatic) |
Protection
| Protection | Battery reverse polarity (fuse), output short circuit, over temperature, overload |
Environmental
| Operating temperature | -20 to +50°C (full load) |
| Humidity | Max 95%, non-condensing |
Physical
| Grounding | Common positive |
| Power terminals | 6 mm² / AWG10 |
| Protection category | IP20 |
| Weight | 0.17 kg |
| Dimensions (h x w x d) | 95 x 140 x 33.5 mm |
Conformance
| Safety | IEC 62109-1 |
