Garmin

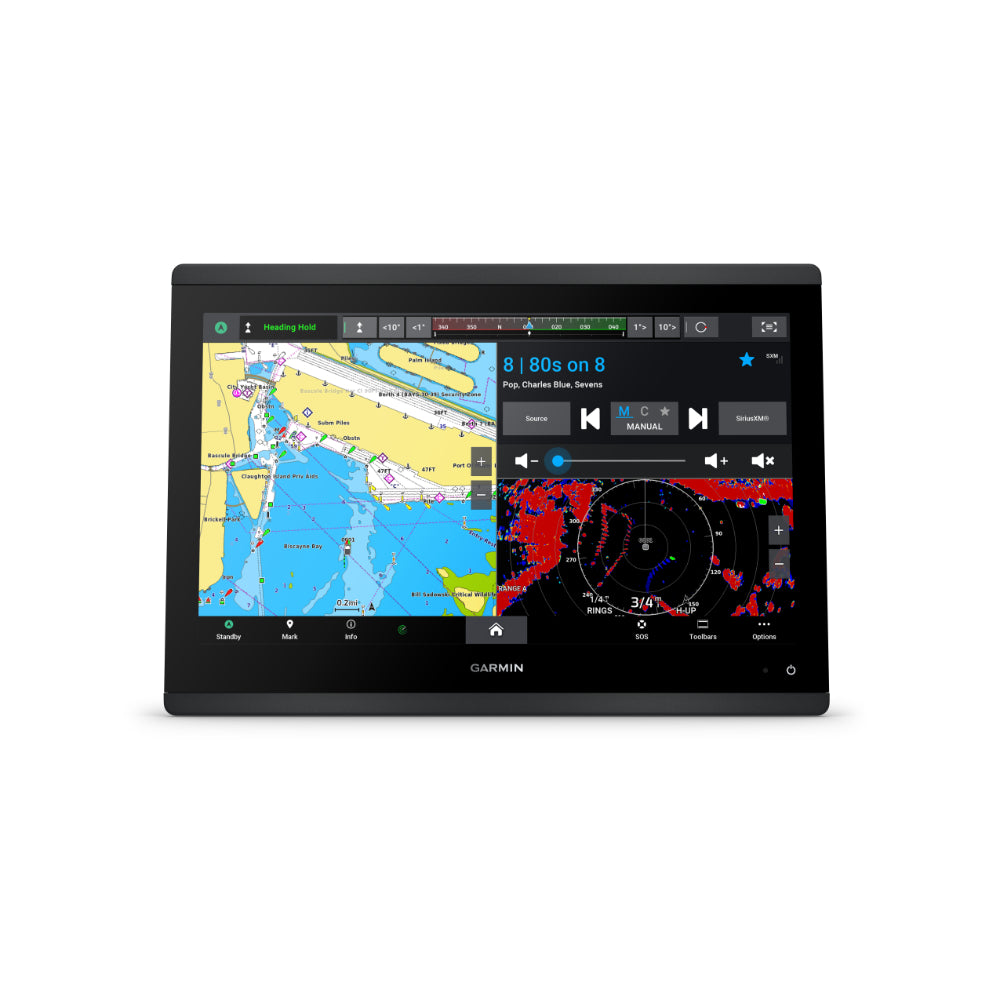

GPSMAP® 1623
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 1623 is a 15.6-inch chartplotter with a Full HD 1920 x 1080 IPS touchscreen, giving a large, sharp picture that stays clear in bright sunlight and across wide viewing angles. This is the non-sonar (chart-only) model, designed to be the navigation centrepiece of a connected Garmin marine system, with HDMI output to mirror the display on an external monitor.
A preloaded worldwide basemap gets you started, while support for premium Garmin Navionics+ and Garmin Navionics Vision+ charts adds detailed coastal cartography, Auto Guidance and high-resolution relief shading. Built-in Wi-Fi pairs the unit with the ActiveCaptain app for chart updates, smart notifications and Garmin Helm remote viewing.
With Garmin Marine Network, NMEA 2000 and NMEA 0183 connectivity, the GPSMAP 1623 shares data with radar, sonar modules, autopilots, engines and instruments across the vessel. The rugged IPX7-rated housing is built for flush mounting at larger helms.
PRODUCT DETAILS
- 15.6-inch Full HD IPS touchscreen (1920 x 1080) with edge-to-edge glass for a large, sharp helm display
- HDMI video output to mirror the chartplotter screen on an external monitor or television
- Preloaded worldwide basemap with support for premium Garmin Navionics+ and Garmin Navionics Vision+ cartography
- Built-in Wi-Fi and ActiveCaptain app connectivity for chart updates, smart notifications and Garmin Helm remote control
- Full networking via Garmin Marine Network, NMEA 2000 and NMEA 0183 for radar, sonar, autopilot and instrument data
- Compatible with Garmin Reactor autopilots, GMR marine radar and Panoptix and LiveScope sonar modules across the network
- Rugged IPX7 waterproof housing with two microSD card slots (32 GB max) for charts and Quickdraw Contours
- GPSMAP 1623 chartplotter
- Flush-mount kit and template
- Power/data cable
- NMEA 2000 drop cable and T-connector
- Protective sun cover
- Ferrite beads
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 39.6 cm (15.6 in) diagonal; 345.2 x 194.6 mm viewable |
| Display resolution | FHD, 1920 x 1080 pixels (IPS) |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 384.7 x 266.4 x 78 mm (15 1/8 x 10 1/2 x 3 1/16 in) |
| Weight | 4.45 kg (9.8 lb) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 85 cm (33.5 in) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Maximum power usage at 10 Vdc | 46 W |
| Typical current draw at 12 Vdc | 3.73 A |
| Fuse | 8 A, 125 V fast-acting |
Connectivity
| Wireless | Wi-Fi, 2.4 GHz @ 19.7 dBm maximum |
| NMEA 2000 LEN | 2 @ 9 Vdc (75 mA max draw) |
| Data interfaces | NMEA 2000, NMEA 0183, Garmin Marine Network (Ethernet), J1939 engine network |
| Video | HDMI video out and composite video in (CVBS) |
| Memory card | 2 microSD card slots, 32 GB max card size |
GPS/GNSS
| GPS | Internal GPS antenna; supports external GPS source over NMEA 2000 |
Environmental
| Water rating | IEC 60529 IPX7 |
| Operating temperature range | -15 to 55°C (5 to 131°F) |
General
| Sonar | Non-sonar (chart only); no built-in sonar |
