B&G

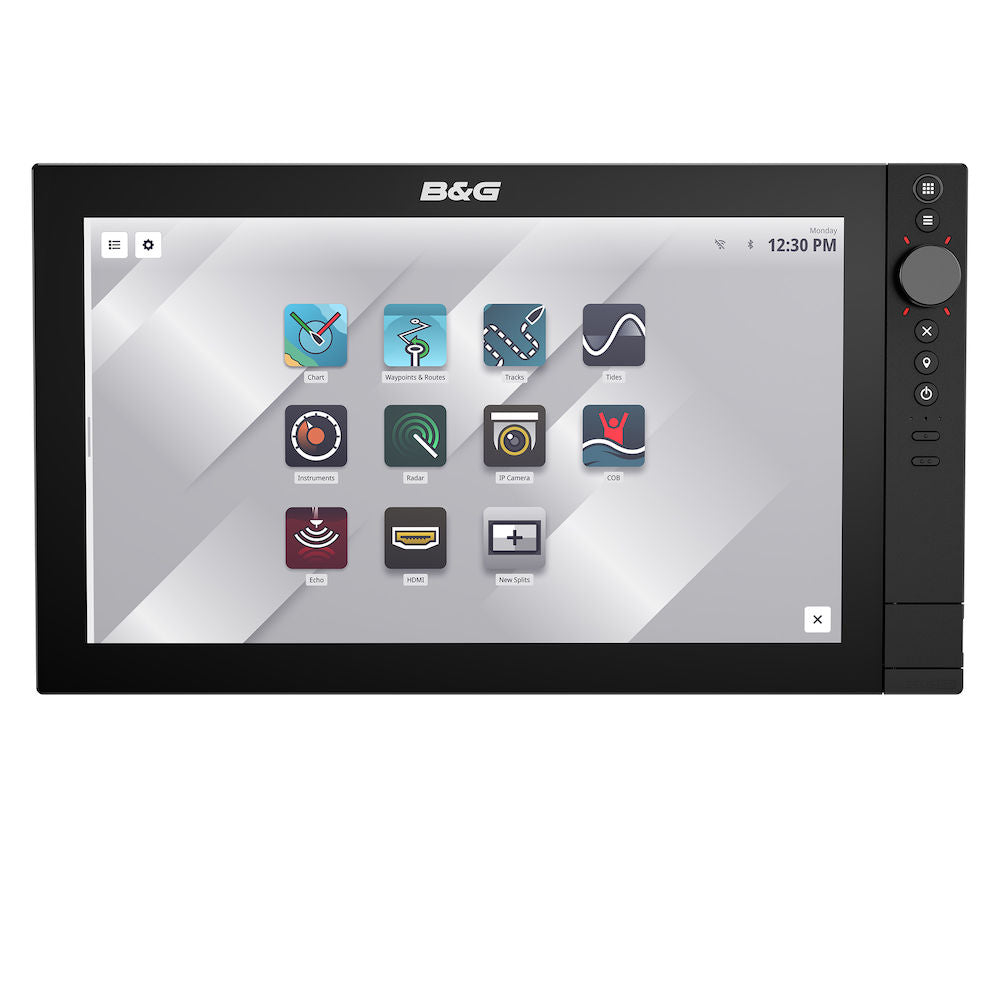

B&G Zeus SR - 16" Chartplotter
£5,896.00
/
Tax included.
Shipping calculated at checkout.
000-16028-001
The B&G Zeus SR 16 inch is B&G's largest sailing chartplotter, driven by an 8-core processor with a Full HD touchscreen and award-winning features like SailSteer and LayLines. It runs C-MAP and Navionics charts and integrates with HALO radar, autopilots and instruments over Wi-Fi, Gigabit Ethernet and NMEA 2000.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Navico Extended Warranty
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
Elevate your instincts with the Zeus® SR chartplotter. Our most powerful 8-core processor delivers a smoother, faster sailing experience. A redesigned interface makes it easier to find the tools you need, with tailored screens for cruising, racing, and anchoring. And a whole host of control options gives full power to the helm in all conditions.
PRODUCT DETAILS
- High definition SolarMAX IPS touchscreen, viewable from all angles, even with polarised glasses
- Most powerful 8-core processor for a smoother, faster sailing experience
- Separate modes for Cruising, Racing and Anchoring
- Award-winning sailing features like SailSteer, LayLines, Routes and StartLine
- Compatible with C-MAP DISCOVER X and REVEAL X charts
- C-MAP-powered Safety Alerts
- Full integration with HALO radars, B&G Sailing Processors, Autopilots, Triton2 and Nemesis instruments, wind sensors and more
- B&G App integration with 12 months premium subscription when registering a C-MAP X Chart
- Wi-Fi 5, Gigabit Ethernet & NMEA 2000 networking
- Support for up to four IP video cameras
- Set-up Wizard to get you up and running quickly
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Backlight Color | White |
| Display Size | 16 inches |
| Screen Brightness | >1200 nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
Connectivity
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic (currently not used) |
| Ethernet Ports | 1 port (X-Coded M12 GbE), 1 port (yellow, 5-pin) |
| Wi-Fi | Wi-Fi 5 (IEEE 802.11ax) |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| SD Card Storage | 2x (microSD, SDHC), 1 x USB port |
| Video | Video In, Video out via USB. IP Cameras: IPCAM-1, FLIR 232/300 series, ONVIF IP Cameras |
Cartography
| Chart Format | C-MAP Tile (CMT) Discover X, Reveal X |
| Charts Supported | C-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StrikeLines (check with provider for available content) |
Electrical
| Recommended Fuse Rating | 5 A |
| Supply Voltage | 12/24 V DC (10 - 31.2 V DC) |
Environment
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Shock & Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPX6 and IPX7 |
GPS
| Correction | 10 Hz high speed update (internal) |
| GPS Receiver Channels | 32 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Update rate | 10 Hz |
MFD
| AIS | Receive AIS data over NMEA 2000 |
| Autopilot | NAC-1, NAC-2, NAC-3, NAC-D compatible |
| Digital Switching | CZone / DDS |
| GPS | 10 Hz GNSS receiver for GPS and GLONASS, supports Galileo, Beidou, QZSS, SBAS (WAAS) |
| Sonar Compatibility | No built-in echosounder ports. Compatible with Network Sonar modules S3100, S5100, other MFDs with echosounder ports |
| Waypoints, Routes, Tracks | 10,000 waypoints; 75,000 trackpoints; 75 saved tracks; 125 routes |
| Weather | Sirius XM via WM4 module (USA only) |
Physical
| Compass Safe | 65 cm (2.1 ft) |
| Dimensions W x H x D | See model-specific B&G installation manual for exact dimensions |
| Mounting Type | Bracket mount (bracket supplied), rear mount (brackets supplied) |
Other
| Interface | Hybrid multi-touch screen, buttons, and rotary knob |
| Warranty Period | 2 Years |
No videos available for this product.
What charts does the Zeus SR 16 support?
The Zeus SR is compatible with C-MAP DISCOVER X and REVEAL X cartography as well as Navionics charts. It has two microSD card slots supporting cards up to 256 GB in FAT32, ExFAT or NTFS format for charts, software updates and user data.
Can I connect a HALO radar to the Zeus SR 16?
Yes. The Zeus SR integrates fully with B&G HALO radars, B&G Sailing Processors, autopilots, Triton 2 and Nemesis instruments and wind sensors. It has both a Gigabit Ethernet (X-coded M12) port and a yellow 5-pin Ethernet port for radar and network devices.
Does the Zeus SR 16 support IP cameras and video?
Yes. The Zeus SR supports up to four IP video cameras, has a dedicated analogue video input, and can output video via an optional USB to video adapter.
Is the gimbal bracket included with the Zeus SR 16?
No. The 16 inch unit is supplied with a rear mount kit for flush mounting, and the gimbal bracket (000-16458-001) is available separately. The smaller 10 and 12 inch Zeus SR units include the gimbal kit in the box.
Can the Zeus SR 16 run on a 24 V system?
Yes. The Zeus SR is designed to run on 12 or 24 V DC (10 to 31.2 V DC), protected against reverse polarity and over-voltage, and should be fitted with a 5 A fuse on the positive supply.
