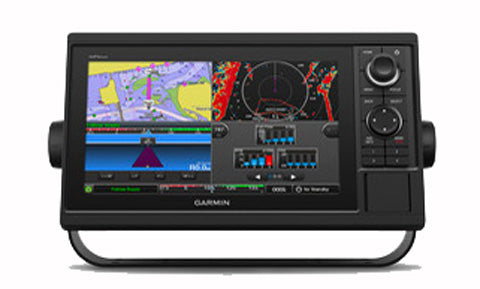

Garmin GPSMAP 1022 Chartplotter with 10 inch Screen and Keypad
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 1022 is a 10 inch keyed chartplotter that combines a bright WSVGA display with a tactile keypad and rotary dial, ideal for helms where gloved or wet hands make a touchscreen impractical. The internal 10 Hz GPS/GLONASS receiver updates position and heading ten times per second for smooth, accurate navigation.
Preloaded with a worldwide basemap and ready for BlueChart g3 and LakeVu cartography, the 1022 connects through the Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi, ANT and Bluetooth, so you can add radar, autopilot, sensors and the ActiveCaptain app. This is the chart only model with no built in sonar.
PRODUCT DETAILS
- 10 inch sunlight readable WSVGA display, 1024 x 600 resolution
- Keypad and rotary dial control for reliable use in any conditions
- Internal 10 Hz GPS/GLONASS receiver for precise position and heading
- Preloaded worldwide basemap, ready for BlueChart g3 and LakeVu charts
- Connects via Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi
- Chart only model, no built in sonar (networked sonar supported)
- IPX7 housing with two SD card slots supporting up to 1 TB cards
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 22.3 x 12.5 cm (8.8 x 4.9 in.), 10.1 in. diagonal |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| GPS receiver | Internal 10 Hz GPS/GLONASS |
| Preloaded charts | Worldwide basemap |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
General
| Built-in sonar | None; networked sonar supported via compatible Garmin module or transducer |
Connectivity
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi, ANT, Bluetooth |
| Wireless frequency | 2.4 GHz @ 15.26 dBm nominal |
| NMEA 2000 LEN | 2 @ 9 Vdc (75 mA max.) |
| Memory card | 2 SD card slots; 1 TB max. card size |
Physical
| Dimensions (W x H x D) | 316.8 x 185.2 x 82.7 mm (12.5 x 7.3 x 3.3 in.) |
| Dimensions on bail mount (W x H x D) | 347.7 x 200.7 x 95.0 mm (13.7 x 7.9 x 3.7 in.) |
| Weight | 1.85 kg (4.1 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 65 cm (25.5 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 32.4 W |
| Typical current draw at 12 Vdc | 1.9 A |
| Max. current draw at 12 Vdc | 2.7 A |
| Fuse | 6 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 50 C (5 to 122 F) |
