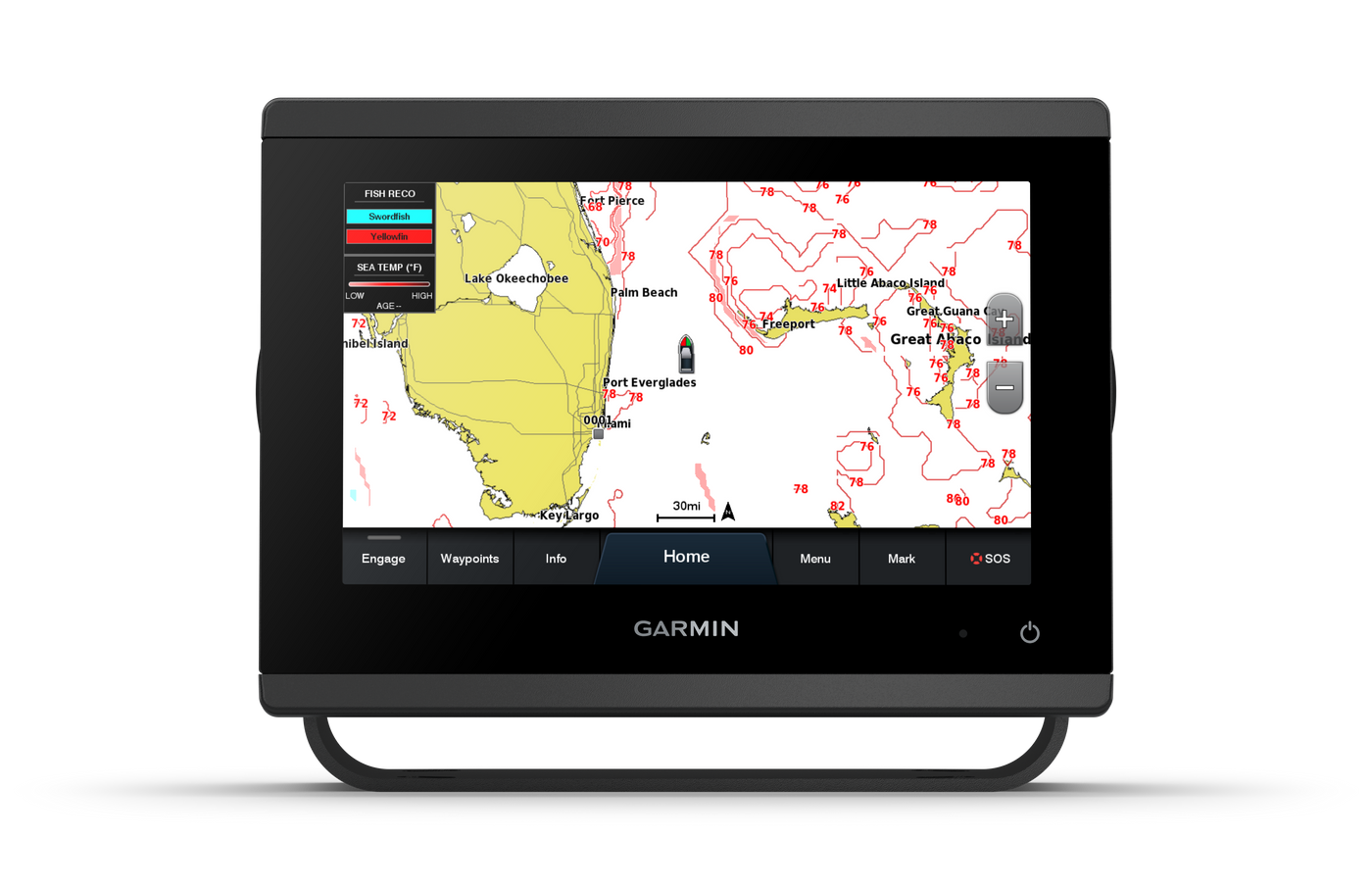

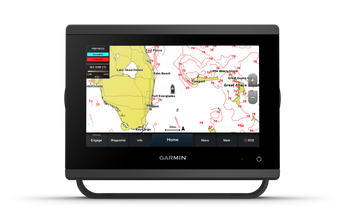

Garmin GPSMAP® 723, Non-sonar with Worldwide Basemap
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 723 is a 7-inch chartplotter built around a high-resolution WSVGA IPS touchscreen that stays clear and readable in bright sunlight and from wide viewing angles. This is the non-sonar (chart-only) model, designed for navigation and as the hub of a connected Garmin marine system.
A preloaded worldwide basemap gets you started, while support for premium Garmin Navionics+ and Garmin Navionics Vision+ charts adds detailed coastal cartography, Auto Guidance and high-resolution relief shading. Built-in Wi-Fi pairs the unit with the ActiveCaptain app for chart updates, smart notifications and Garmin Helm remote viewing.
With Garmin Marine Network, NMEA 2000 and NMEA 0183 connectivity, the GPSMAP 723 shares data with radar, sonar modules, autopilots, engines and instruments across the vessel. The rugged IPX7-rated housing and compact footprint make it well suited to helm and dash installation on smaller boats.
PRODUCT DETAILS
- 7-inch WSVGA IPS touchscreen (1024 x 600) with bright, high-contrast display for clear viewing in direct sunlight
- Preloaded worldwide basemap with support for premium Garmin Navionics+ and Garmin Navionics Vision+ cartography
- Built-in Wi-Fi and ActiveCaptain app connectivity for chart updates, smart notifications and Garmin Helm remote control
- Full networking via Garmin Marine Network, NMEA 2000 and NMEA 0183 to share data with radar, sonar, autopilot and instruments
- Compatible with Garmin Reactor autopilots, GMR marine radar and Panoptix and LiveScope sonar modules across the network
- Rugged IPX7 waterproof housing in polycarbonate and die-cast aluminium for the marine environment
- Two microSD card slots (32 GB max) for charts and Garmin Quickdraw Contours mapping
- GPSMAP 723 chartplotter
- Bail mount with knobs
- Flush-mount kit and template
- Power/data cable
- NMEA 2000 drop cable and T-connector
- Protective sun cover
- Ferrite beads
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 17.8 cm (7.0 in) diagonal; 154.6 x 91.0 mm viewable |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 192.3 x 140.3 x 74.1 mm (7 9/16 x 5 1/2 x 2 15/16 in) |
| Weight | 1.3 kg (2.8 lb) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 35 cm (13.78 in) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Maximum power usage at 10 Vdc | 17.6 W |
| Typical current draw at 12 Vdc | 1.08 A |
| Maximum current draw at 12 Vdc | 1.45 A |
| Fuse | 6 A, 125 V fast-acting |
Connectivity
| Wireless | Wi-Fi, 2.4 GHz @ 18.3 dBm maximum |
| NMEA 2000 LEN | 2 @ 9 Vdc (75 mA max draw) |
| Data interfaces | NMEA 2000, NMEA 0183, Garmin Marine Network (Ethernet), J1939 engine network |
| Video input | Composite video in (CVBS) |
| Memory card | 2 microSD card slots, 32 GB max card size |
GPS/GNSS
| GPS | Internal GPS antenna; supports external GPS source over NMEA 2000 |
Environmental
| Water rating | IEC 60529 IPX7 |
| Operating temperature range | -15 to 55°C (5 to 131°F) |
General
| Sonar | Non-sonar (chart only); no built-in sonar |
