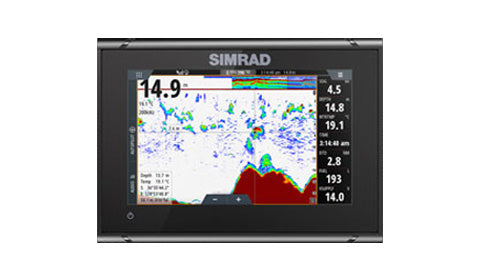

Simrad GO7 XSR ROW 7 Inch Chartplotter and radar display no transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
7-inch chartplotter and radar display with global basemap.
The Simrad GO7 XSR chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.
PRODUCT DETAILS
- 7-inch sunlight-viewable widescreen display with 1200-nit LED backlight
- Simple, tablet-style multi-touch operation
- Built-in 10 Hz GPS receiver for accurate positioning
- Integrated CHIRP, DownScan and ForwardScan sonar (add a compatible transducer)
- Compatible with Broadband 3G/4G and HALO dome radar
- Built-in Wi-Fi for app control, software updates and chart downloads
- NMEA 2000 connectivity for engines, sensors and autopilot
- Supplied without a transducer
- GO7 XSR display unit
- U-bracket and knobs
- Sun cover
- Power cable
- Dash mount kit
- Bezel
- Documentation
No exploded diagram available for this product.
No compatible products found.
GPS
| Receiver | Internal, 32-channel |
| Update Rate | 10 Hz |
| Corrections | WAAS, EGNOS, MSAS, GLONASS |
| Position Accuracy | 3 m horizontal |
Environment
| Waterproof Rating | IPX6 and IPX7 |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +60°C |
Display
| Screen Size | 7" widescreen |
| Resolution | 800 x 480 |
| Backlight | LED, white |
| Brightness | 1200 nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Touchscreen | Multi-touch |
General
| Sonar Support | Integrated CHIRP, DownScan and ForwardScan |
| Radar Compatibility | Broadband 3G/4G and HALO dome radar |
| Cartography | C-MAP and Navionics compatible |
| Autopilot | Compatible with Simrad NAC autopilots (SteadySteer) |
| Warranty | 2 years |
Connectivity
| NMEA 2000 | 1 x Micro-C port (1 LEN) |
| Ethernet | 1 x 5-pin yellow connector (radar and Sirius, USA only) |
| Wi-Fi | Built-in |
| Bluetooth | Built-in |
| Sonar Connector | Single 9-pin XSonic |
| Card Reader | 1 x microSD (max 32GB) |
Electrical
| Supply Voltage | 10 to 17 V DC |
| Power Consumption (max) | 20 W |
| Power Consumption (typical) | 12 W |
| Recommended Fuse | 3 A |
| Reverse Polarity Protection | Yes (over-voltage protected to 36 V) |
Physical
| Dimensions (W x H x D) | 197 x 141 x 82.7 mm (no bracket) |
| Weight | 1.320 kg |
| Mounting | Bracket or panel mount |
